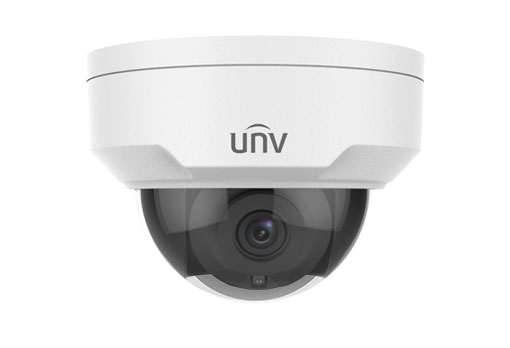

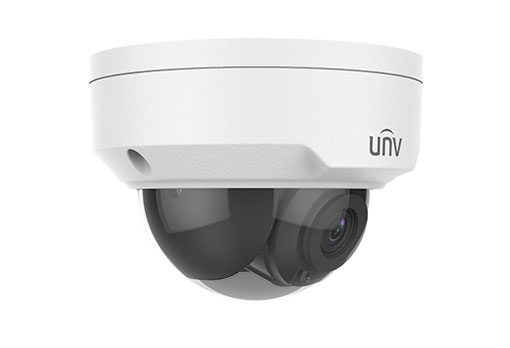

Uniview - IPC322ER3-DUVPF28-C - UNV 2MP Starlight HD Network IR Fixed Dome(2.8mm,WDR,30m IR,PoE,SD Slot,Audio,Alarm,H.265)
Part number:
IPC322ER3-DUVPF28-C
Price:
UNV 2MP Starlight HD Network IR Fixed Dome(2.8mm,WDR,30m IR,PoE,SD Slot,Audio,Alarm,H.265)
Optics:
- Starlight illumination
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- Car-grade LEDs, brighter and uniform light compensation
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- Customized OSD
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide input voltage range of ±25%
- IK10 vandal resistant
- 3-Axis
- IP67
| IPC322ER3-DUVPF28-C | IPC322ER3-DUVPF40-C | |
| Camera | ||
| Sensor | 1/2.9", progressive scan ,2.0 megapixel, CMOS | |
| Lens | 2.8 mm@F1.6 | 4.0 mm@F1.6 |
| Angle of View (H) | 107.8° | 82.0° |
| Shutter | Auto/Manual, 1/6~1/100000 s | |
| Minimum Illumination | Colour: 0.003 Lux (F1.6, AGC ON) 0 Lux with IR | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Digital noise reduction | 2D/3D DNR | |
| S/N | >52 dB | |
| IR Range | Up to 30m (98 ft) IR range | |
| Defog | Digital Defog | |
| WDR | 120dB | |
| Video | ||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | |
| H.264 code profile | Baseline profile, Main Profile, High Profile | |
| Frame Rate | Main Stream:2MP (1920×1080): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps | |
| HLC | Supported | |
| BLC | Supported | |
| 9:16 Corridor Mode | Supported | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 8 areas | |
| ROI | Up to 8 areas | |
| Motion Detection | Up to 4 areas | |
| Smart | ||
| Behavior Detection | Intrusion, cross line, motion detection | |
| Exception Detection | Audio detection | |
| Intelligent Identification | Face detection, Defocus, Scene Change | |
| Statistical Analysis | People counting | |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |
| Audio | ||
| Audio Compression | G.711 | |
| Two-way audio | Supported | |
| Suppression | Supported | |
| Sampling Rate | 8 KHZ | |
| Storage | ||
| Edge Storage | Micro SD, up to 128 GB | |
| Network Storage | ANR | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | |
| Compatible Integration | ONVIF(Profile S, Profile G), API | |
| Interface | ||
| Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | ||
| Alarm I/O | 1/ 1 | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |
| General | ||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | |
| Power consumption: Max 5.5W | ||
| Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) | |
| Weight | 0.45 kg (0.99 lb) | |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) | |
| Ingress Protection | IP67 | |
| Vandal Resistant | IK10 | |
