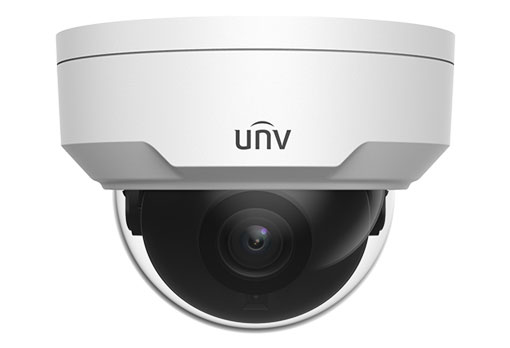

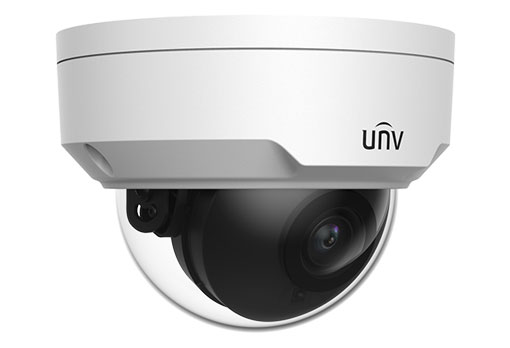

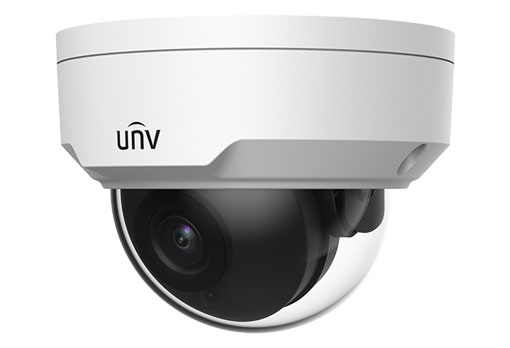

Uniview - IPC322SB-DF40K-I0 - UNV 2MP Network Fixed Dome(LightHunter,Premier Protection,4mm,WDR,30m IR,SD Slot,3 Axis,PoE,H.265,Audio,Alarm)
Part number:
IPC322SB-DF40K-I0
Price:
2MP HD Intelligent LightHunter IR Fixed Dome Network Camera, 4.0mm
Features:
- High quality imaging with 2MP, 1/2.8"CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
| IPC322SB-DF40K-I0 | |||
| Camera | |||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||
| Minimum Illumination | Colour:0.001 lux (F1.6, AGC ON) 0 lux with IR | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Adjustment angle | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | |
| WDR | 120dB | ||
| S/N | >52dB | ||
| Lens | |||
| Lens | 4.0mm@F1.6 | ||
| Iris | Fixed | ||
| Field of View (H) | 87.5° | ||
| Field of View (V) | 46.3° | ||
| Field of View (D) | 92.4° | ||
| DORI | |||
| DORI Distance | Observe (m) | Recognize (m) | |
| 17.4 | 8.7 | ||
| 24.8 | 12.4 | ||
| Illuminator | |||
| IR Range | Up to 30m (98ft) IR range | ||
| Wavelength | 850nm | ||
| IR On/Off Control | Auto/Manual | ||
| Video | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||
| H.264 code profile | Baseline profile, Main profile, High profile | ||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;CIF(352*288), Max 30fps; | ||
| Video Bit Rate | 128 Kbps~16 Mbps | ||
| U-code | Support | ||
| OSD | Up to 8 OSDs | ||
| Privacy Mask | Up to 4 areas | ||
| ROI | Up to 8 areas | ||
| Video Stream | Triple streams | ||
| Image | |||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||
| Digital Noise Reduction | 2D/3D DNR | ||
| Smart IR | Support | ||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||
| Dewarping | N/A | ||
| HLC | Support | ||
| BLC | Support | ||
| Defog | Digital Defog | ||
| Intelligent | |||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||
| Events | |||
| Basic Detection | Motion detection, Ultra motion detection ,Tampering alarm, Audio detection | ||
| General Function | Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication | ||
| Audio | |||
| Audio Compression | G.711U, G.711A | ||
| Audio Bitrate | 64 Kbps | ||
| Two-way Audio | Support | ||
| Suppression | Support | ||
| Sampling Rate | 8KHZ | ||
| Storage | |||
| Edge Storage | Micro SD, up to 256GB | ||
| Network Storage | ANR, NAS(NFS) | ||
| Network | |||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||
| Client | EZStation EZView EZLive | ||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||
| Interface | |||
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p] | ||
| 1 Output: impedance 600Ω; amplitude 2V [p-p] | |||
| Alarm I/O | 1/1 | ||
| RS485 | N/A | ||
| Built-in Mic | N/A | ||
| Built-in Speaker | N/A | ||
| WIFI | N/A | ||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||
| Video Output | N/A | ||
| Certifications | |||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||
| General | |||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||
| Power consumption: Max 5.0W | |||
| Power Interface | Ø 5.5mm coaxial power plug | ||
| Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) | ||
| Weight | 0.42kg (0.93lb) | ||
| Material | Metal | ||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Surge Protection | 4KV | ||
| Reset Button | N/A | ||
