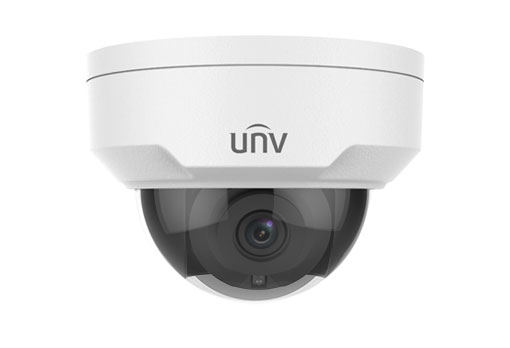

Uniview - IPC322SR3-DVPF40-C - UNV 2MP Network IR Fixed Dome(4mm,WDR,30m IR,PoE,SD Slot,Audio,Alarm,3 Axis,H.265)
Part number:
IPC322SR3-DVPF40-C
Price:
UNV 2MP Network IR Fixed Dome(4.0mm,WDR,30m IR,PoE,SD Slot,Audio,Alarm,3 Axis,H.265)
Optics:
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Car-grade LEDs, brighter and uniform light compensation
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- Customized OSD
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide input voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
| IPC322SR3-DVPF28-C | IPC322SR3-DVPF40-C | |||||
| Camera | ||||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||||
| Lens | 2.8mm@F1.6 4.0mm@F1.6 | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 42 | 16.8 | 8.4 | 4.2 | ||
| 4.0 | 60 | 24 | 12 | 6 | ||
| Angle of View (H) | 112.7° | 86.5° | ||||
| Angle of View (V) | 60.1° | 44.1° | ||||
| Angle of View (O) | 146.5° | 106.4° | ||||
| Adjustment angle | Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour: 0.003Lux (F2.0, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| S/N | >52 dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| 9:16 Corridor Mode | Supported | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 8 areas | ||
| ROI | Up to 8 areas | ||
| Motion Detection | Up to 4 areas | ||
| Image | |||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||
| Digital noise reduction | 2D/3D DNR | ||
| Smart IR | Support | ||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||
| Dewarping | N\A | ||
| HLC | Support | ||
| BLC | Support | ||
| Audio | |||
| Audio Compression | G.711 | ||
| Two-way audio | Supported | ||
| Suppression | Supported | ||
| Sampling Rate | 8KHZ | ||
| Storage | |||
| Edge Storage | Micro SD, up to 256GB | ||
| Network Storage | ANR, NAS(NFS) | ||
| Network | |||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||
| Client | EZStation EZView EZLive | ||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||
| Interface | |||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||
| Alarm I/O | 1/1 | ||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||
| Certifications | |||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||
| General | |||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||
| Power consumption: Max 4W | |||
| Dimensions (Ø x H) | Φ108.5 x 81mm (Ø4.28” x 3.2”) | ||
| Net Weight | 0.45kg (0.99lb) | ||
| Material | Metal + Plastic | ||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
