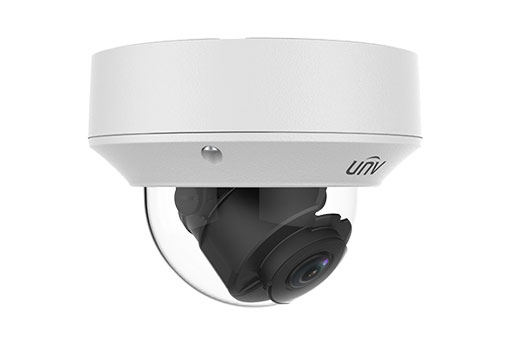

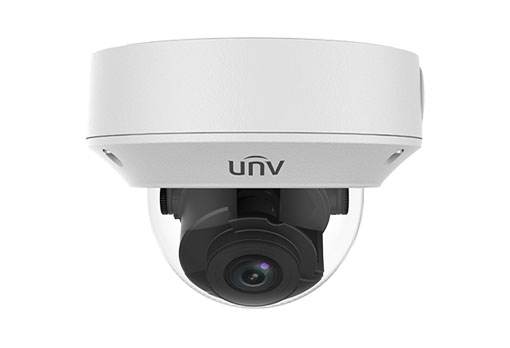

Uniview - IPC3232ER3-DVZ28-C - UNV 2MP WDR Low-light Motorized VF Vandal-resistent Network IR Fixed Dome Camera(2.8-12mm, Metal, Full cable, 30m IR, H.265)
Part number:
IPC3232ER3-DVZ28-C
Price:
UNV 2MP WDR Low-light Motorized VF Vandal-resistent Network IR Fixed Dome Camera (2.8-12mm, Metal, Full cable, 30m IR, H.265)
Features:
Optics:
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Up to 120dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Built-in motorized lens for remote zoom
Compression:
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
Network:
- ONVIF Conformance
Structure:
- Support PoE power supply
- Built-in PoE splitter that outputs DC 12V
- Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
| IPC3232ER3-DVZ28-C | ||||||
| Camera | ||||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 43.4 | 17.4 | 8.7 | 4.3 | ||
| 12 | 186.2 | 74.5 | 37.2 | 18.6 | ||
| Angle of View (H) | 94.0° ~ 28° | |||||
| Angle of View (V) | 56.7° ~ 14.4° | |||||
| Angle of View (O) | 122.2° ~ 34.4° | |||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| S/N | >52dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| 9:16 Corridor Mode | Supported | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 8 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | N\A | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Smart | ||||||
| Behavior Detection | Intrusion, cross line, motion detection | |||||
| Intrusion | Enter and loiter in a pre-defined virtual region | |||||
| cross line | Cross a pre-defined virtual line | |||||
| motion detection | Moving within a pre-defined virtual region | |||||
| Recognition | Face detection, Audio detection | |||||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | |||||
| Statistical Analysis | People counting | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Two-way audio | Supported | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR, NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
| Client | EZStation EZView EZLive | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||
| Interface | ||||||
| Audio I/O | Audio cable | |||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||||
| Alarm I/O | 1/1 | |||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | |||||
| Certifications | ||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 7.2W | ||||||
| Dimensions (Ø x H) | Φ148 x 111.3mm (Ø5.8” x 4.4”) | |||||
| Net Weight | 0.92kg (2.0lb) | |||||
| Material | Metal + Plastic | |||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Strorage Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| surge protection | 6KV | |||||
| Ingress Protection | IP67 | |||||
| Vandal Resistant | IK10 | |||||
| Reset Button | Supported | |||||
