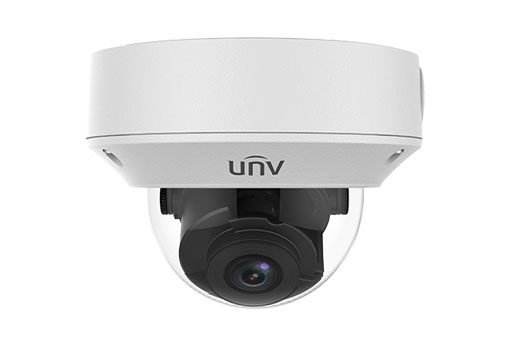

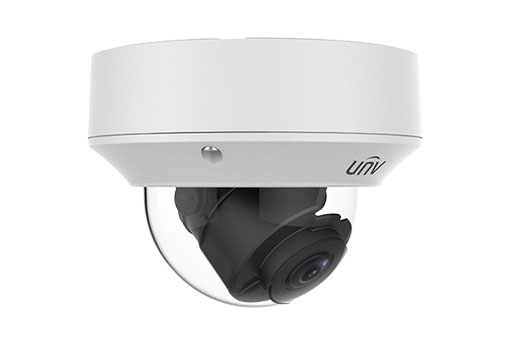

Uniview - IPC3235ER3-DUVZ - 5MP WDR LightHunter VF Vandal-resistant IR Dome Network Camera
Part number:
IPC3235ER3-DUVZ
Price:
UNV 5MP Starlight Fixed Dome Network Camera (WDR, Full Cable, PoE, RJ45, Motorized VF 2.7-13.5mm, 30m IR, SD)
Features:
Optics
- LightHunter
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Up to 120dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Built-in motorized lens for remote zoom
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Built-in PoE splitter that outputs DC 12V
- Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
3-Axis
| IPC3235ER3-DUVZ | |||||||
| Camera | |||||||
| Sensor | 1/2.7", progressive scan ,5.0 megapixel, CMOS | ||||||
| Lens | 2.7~13.5mm，AF automatic focusing and motorized zoom lens | ||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
| 2.7mm | 60.8 | 24.3 | 12.2 | 6.1 | |||
| 13.5mm | 303.8 | 121.5 | 60.8 | 30.4 | |||
| Angle of View (H) | 93.38° ~ 28.56° | ||||||
| Angle of View (V) | 88°~ 16.4° | ||||||
| Angle of View (O) | 121.4°~33.7° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, shutter time: 1~1/100000 s | ||||||
Minimum Illumination | Colour: 0.002 Lux (F1.2, AGC ON) 0 Lux with IR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
Frame Rate | Main Stream: 5MP(2592 x 1944): Max. 20 fps, 5MP(2592 x 1944): Max. 25 fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps, 3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max. 30 fps; Sub Stream:2MP(1920 x 1080): Max. 30 fps; Third Stream: D1(720 x 576): Max.3 0 fps; | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |||||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||||
