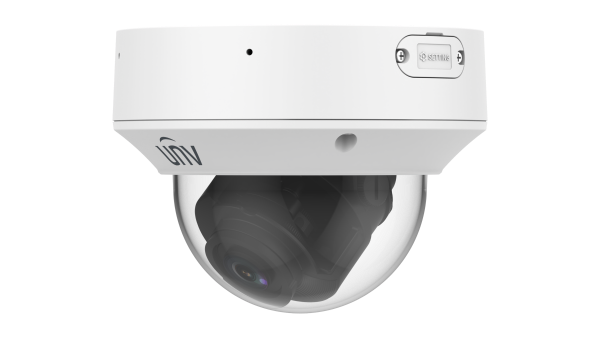

UNV - IPC3238SA-ADZK-PI-I2A - 8MP WDR LightHunter IR Network Dome Camera

Product Overview

The Uniview IPC3238SA-ADZK-PI-I2A is an 8MP WDR LightHunter infrared dome network camera with a motorized 2.7–13.5 mm varifocal lens, 5x optical zoom, and P-iris control. It combines smart perimeter protection, people counting, traffic monitoring with license-plate capture, and 130 dB optical WDR for demanding surveillance applications.

The camera supports 4K video at 30 fps, five video streams, two-way audio, alarm input/output, microSD storage up to 512 GB, DC 12 V or IEEE 802.3af PoE power, and IP67/IK10 protection.

Key Configuration

Model: IPC3238SA-ADZK-PI-I2A | Resolution: 8MP, 3840 × 2160 at up to 30 fps | Lens: 2.7–13.5 mm motorized varifocal with 5x optical zoom and P-iris | Connectivity: 10/100 Mbps RJ45, ONVIF Profile S/G/T/M | Protection: IP67, IK10

Key Features

• · 8MP 1/1.8-inch CMOS sensor with 3840 × 2160 video at up to 30 fps
• · Motorized 2.7–13.5 mm varifocal lens with 5x optical zoom and P-iris exposure control
• · 130 dB optical WDR with LightHunter low-light performance
• · Infrared illumination up to 40 m with automatic or manual control
• · Smart Intrusion Prevention with cross-line, intrusion, enter-area, and leave-area detection
• · Target classification and false-alarm filtering for people, vehicles, and non-motor vehicles
• · People-flow counting and crowd-density monitoring
• · Traffic monitoring with license-plate capture and vehicle information collection across up to four lanes
• · Two-way audio, built-in dual microphones, 1 alarm input, 1 alarm output, and RS485
• · Five-stream encoding, microSD storage up to 512 GB, DC 12 V or IEEE 802.3af PoE, IP67, and IK10 protection

Technical Context

LightHunter imaging and P-iris control help maintain exposure and detail across changing lighting conditions. Traffic analytics can capture license-plate images and vehicle information when targets cross configured tripwires, while Smart Intrusion Prevention classifies objects to reduce false alarms.

Installation Notes

The metal-and-plastic dome housing supports pan adjustment from 0° to 355°, tilt from 0° to 70°, and rotation from 0° to 355°. It operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, wall, in-ceiling, switch-box, pole, corner, and cable-gland accessories are available.
