UNV - IPC3238SB-ADZKM-DL-I1 - 8MP Intelligent Dual light VF Dome Network Camera

Product Overview

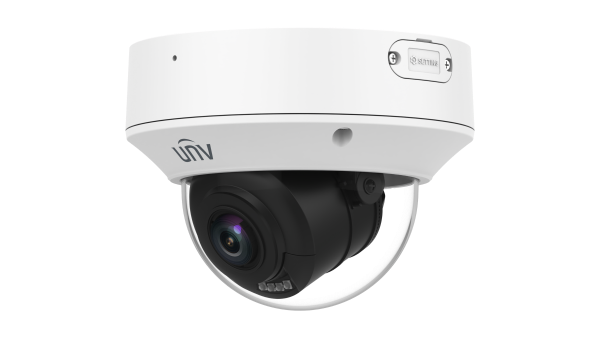

The Uniview IPC3238SB-ADZKM-DL-I1 is an 8MP intelligent dual-light dome network camera with a motorized 2.8–12 mm varifocal lens. It combines Smart Intrusion Prevention, people counting, 120 dB true WDR, and infrared/warm-light illumination up to 40 m for advanced surveillance across changing scenes.

The camera supports 4K video at up to 25 fps, triple-stream encoding, two-way audio, alarm input/output, microSD storage up to 512 GB, DC 12 V or IEEE 802.3af PoE power, and IP67/IK10 protection.

Key Configuration

Model: IPC3238SB-ADZKM-DL-I1 | Resolution: 8MP, up to 3840 × 2160 at 25 fps | Lens: 2.8–12 mm motorized varifocal, F1.4 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T/M | Protection: IP67, IK10

Key Features

• · 8MP 1/2.7-inch CMOS sensor with 3840 × 2160 video at up to 25 fps
• · 2.8–12 mm motorized varifocal lens with 111.5° to 34.4° horizontal field of view
• · Dual-light illumination with infrared and warm light up to 40 m each
• · 120 dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
• · Smart Intrusion Prevention with cross-line, intrusion, enter-area, and leave-area detection
• · Target classification and false-alarm filtering for people, vehicles, and non-motor vehicles
• · People-flow counting and crowd-density detection
• · Two-way audio with 1 audio input and 1 audio output
• · 1 alarm input and 1 alarm output, 9:16 corridor mode, ROI, and triple streams
• · MicroSD storage up to 512 GB, DC 12 V or IEEE 802.3af PoE, IP67, and IK10 protection

Technical Context

The motorized varifocal lens supports wide-area observation and focused long-range coverage from the same camera. Dual-light illumination combines infrared and warm light up to 40 m, while Smart Intrusion Prevention classifies targets to reduce false alarms and people-counting analytics provide occupancy and flow information.

Installation Notes

The metal dome housing supports pan adjustment from 0° to 355°, tilt from 0° to 76°, and rotation from 0° to 355°. It operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, wall, in-ceiling, pendant, pole, corner, and sunshade accessories are available.
