IPC3238SR3-DVPZ - EOL Replacement: IPC3238SB-ADZK-I0

Name: IPC3238SR3-DVPZ - EOL Replacement: IPC3238SB-ADZK-I0
Brand: Uniview
SKU: IPC3238SR3-DVPZ

This product has been discontinued. Replacement: IPC3238SB-ADZK-I0

Part number:

IPC3238SR3-DVPZ

Price:

Dealers only

See Available Replacement

Description Specifications Downloads

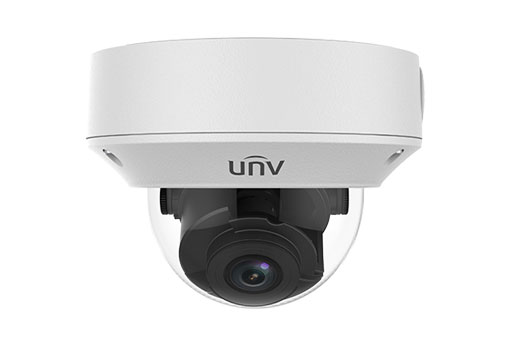

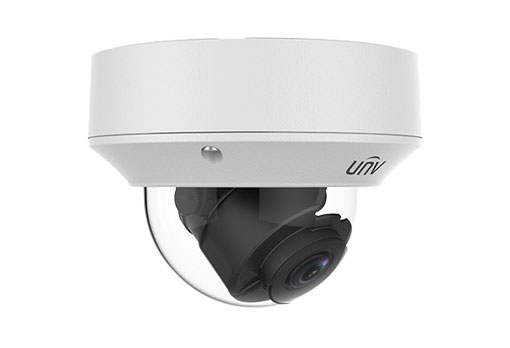

UNV 8MP Fixed Dome Network Camera(WDR,Lowcost Full Cable,PoE,RJ45,Motorized VF 2.8-12mm,30m IR,SD)

	IPC3238SR3-DVPZ
Camera
Sensor	1/2", 8.0 megapixel, progressive scan, CMOS
Lens	2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.8	63		25.2	12.6		6.3
	12	270		108	54		27
Angle of View (H)	114.8° ~ 47.3°
Angle of View (V)	75.3° ~ 20.4°
Angle of View (O)	141.2° ~ 55.8°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 80°			Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Min. Illumination	Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR
IR Range	Up to 30m (98ft) IR range
wavelength	850nm
IR On/Off Control	Auto/Manual
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 8MP (38402160), Max 20fps; 5MP (25921944), Max 30fps; 5MP (29441656), Max 30fps; 4MP (25601440), Max 30fps; 2MP (19201080), Max 30fps; Sub Stream: 2MP (19201080), Max 30fps; Third Stream: D1 (720*576), Max 30fps

Video Bit Rate	128 Kbps~16 Mbps
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
ROI	Up to 8 areas
Privacy Mask	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	Support
HLC	Support
BLC	Support
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR, NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Web Browser	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O	Audio cable
	Input: impedance 35kΩ; amplitude 2V [p-p]
	Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	1/1
Network	1 RJ45 10M/100M Base-TX Ethernet
Video Output	1 BNC, impedance 75Ω; amplitude 1V [p-p]
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
Power	Power consumption: Max 8W

Dimensions (Ø x H)	Φ148 x 111.3mm (Ø5.8” x 4.4”)
Net Weight	0.92kg (2.0lb)
Material	Metal + Plastic
Working Environment	-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection	6KV
Reset Button	Supported
Ingress Protection	IP67
Vandal Resistant	IK10
