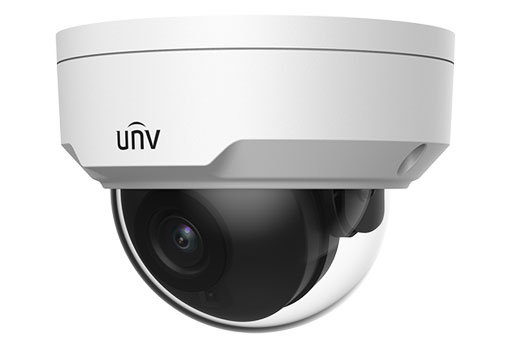

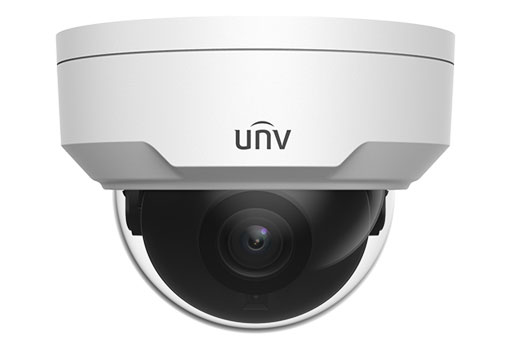

IPC324SS-DF28K - EOL Replacement: IPC324SR3-DSF28K-G
Part number:
IPC324SS-DF28K
Price:
UNV 4MP Network Fixed Dome (LightHunter, 2.8mm, WDR, 30m IR, SD Slot, 3 Axis, PoE, H.265, Audio,Alarm)
Features:
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@30/ 25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
| IPC324SS-DF28K | IPC324SS-DF40K | ||||||||
| Camera | |||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | |||||
| 4.0 | 90 | 36 | 18 | 9 | |||||
| Angle of View (H) | 107.8° | 82° | |||||||
| Angle of View (V) | 57.0° | 41.6° | |||||||
| Angle of View (O) | 140.1° | 100.9° | |||||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate:3° ~ 360° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| S/N | >52dB | ||||||||
| IR Range | Up to 40m (131ft) IR range | ||||||||
| wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120dB | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| 9:16 Corridor Mode | Support | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 8 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Motion Detection | Up to 4 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | Support | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
