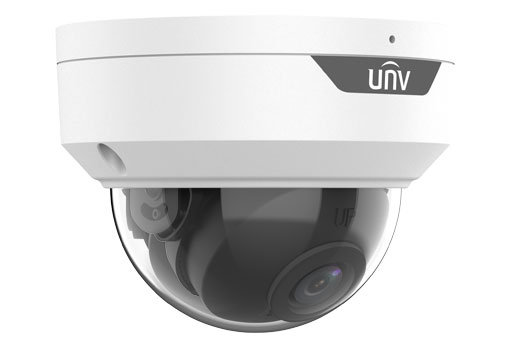

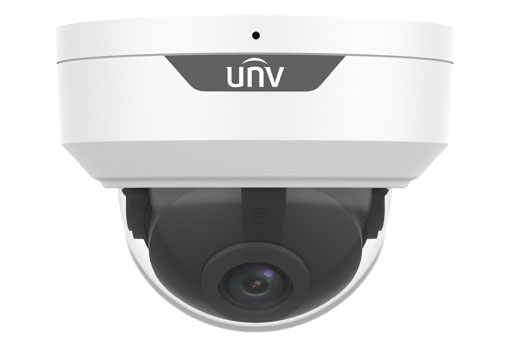

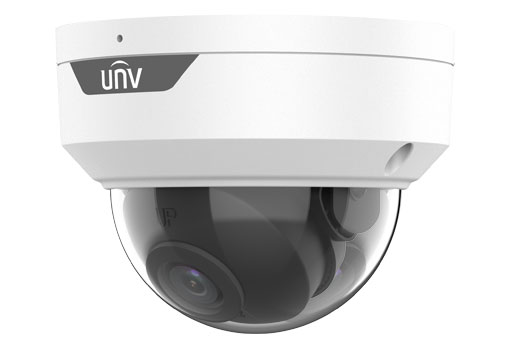

Uniview - IPC328SB-ADF28K-I0 - 8MP LightHunter Fixed IR Dome Network Camera, 2.8mm
Part number:
IPC328SB-ADF28K-I0
Price:
8MP LightHunter WDR Network IR Fixed Dome (2.8mm, Premier Protection, PoE, Metal, 30m IR)
Features:
- High quality image with 8MP, 1/2.7"CMOS sensor
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant and IP67 protection
| IPC328SB-ADF28K-I0 | |||
| Camera | |||
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | ||
| Lens | 2.8mm@F1.6 | ||
| DORI Distance | Lens (mm) | Detect (m) | |
| 2.8 | 84.0 | ||
| 4.0 | 120.0 | ||
| Angle of View (H) | 112.9° | ||
| Angle of View (V) | 51.9° | ||
| Angle of View (O) | 121.2° | ||
| Adjustment angle | Pan: 3° ~ 360° | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| Digital Noise Reduction | 2D/3D DNR | ||
| S/N | >56dB | ||
| IR Range | Up to 30m (98ft) IR range | ||
| Wavelength | 850nm | ||
| IR On/Off Control | Auto/Manual | ||
| Defog | Digital Defog | ||
| WDR | 120dB | ||
| Video | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||
| H.264 code profile | Baseline profile, Main profile, High profile | ||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||
| Video Bit Rate | 128 Kbps~16 Mbps | ||
| OSD | Up to 8 OSDs | ||
| Privacy Mask | Up to 4 areas | ||
| ROI | Up to 8 areas | ||
| Motion Detection | Up to 4 areas | ||
| Image | |||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||
| Smart IR | Support | ||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||
| Dewarping | Supported | ||
| HLC | Supported | ||
| BLC | Supported | ||
| Audio | |||
| Audio Compression | G.711 | ||
| Two-way audio | Supported | ||
| Suppression | Supported | ||
| Sampling Rate | 8KHZ | ||
| Storage | |||
| Edge Storage | Micro SD, up to 256GB | ||
| Network Storage | ANR | ||
| Network | |||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||
| Client | EZStation EZView EZLive | ||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||
| Interface | |||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||
| Alarm I/O | 1/1 | ||
| Built-in Mic | Supported | ||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||
| Certifications | |||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||
| General | |||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||
| Power consumption: Max 6.0W | |||
| Dimensions (Ø x H) | Φ109 x 83mm (Ø4.3” x 3.3”) | ||
| Net Weight | 0.43kg ( 0.95lb) | ||
| Material | Metal | ||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Surge Protection | 4KV | ||
| Ingress Protection | IP67 | ||
| Vandal Resistant | IK10 | ||
| Reset Button | N/A | ||
