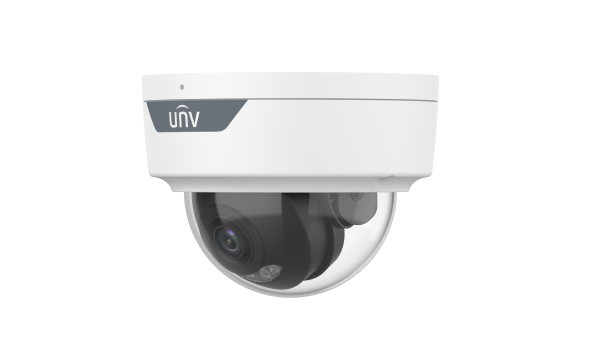

UNV - IPC328SB-ADF28KM-DL-I1 - 8MP Fixed Intelligent Dual light Dome Network Camera

Product Overview

The Uniview IPC328SB-ADF28KM-DL-I1 is an 8MP fixed intelligent dual-light dome network camera with a 2.8 mm wide-angle lens. It combines Smart Intrusion Prevention, people counting, 120 dB true WDR, and infrared/warm-light illumination up to 30 m for advanced day-and-night surveillance.

The camera supports 8MP video at up to 25 fps, triple-stream encoding, two-way audio, alarm input/output, microSD storage up to 512 GB, DC 12 V or IEEE 802.3af PoE power, and IP67/IK10 protection.

Key Configuration

Model: IPC328SB-ADF28KM-DL-I1 | Resolution: 8MP, up to 3840 × 2160 at 25 fps | Lens: 2.8 mm fixed, F1.6 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T/M | Protection: IP67, IK10

Key Features

• · 8MP 1/2.7-inch CMOS sensor with 3840 × 2160 video at up to 25 fps
• · 2.8 mm fixed wide-angle lens with 108.6° horizontal field of view
• · Dual-light illumination with infrared and warm light up to 30 m each
• · 120 dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
• · Smart Intrusion Prevention with cross-line, intrusion, enter-area, and leave-area detection
• · Target classification and false-alarm filtering for people, vehicles, and non-motor vehicles
• · People-flow counting and crowd-density detection
• · Two-way audio with 1 audio input and 1 audio output
• · 1 alarm input and 1 alarm output, 9:16 corridor mode, ROI, and triple streams
• · MicroSD storage up to 512 GB, DC 12 V or IEEE 802.3af PoE, IP67, and IK10 protection

Technical Context

Dual-light illumination combines infrared and warm light up to 30 m for flexible night monitoring. The 2.8 mm lens provides broad coverage, while Smart Intrusion Prevention classifies targets to reduce false alarms and people-counting analytics provide occupancy and flow information.

Installation Notes

The metal dome housing supports pan adjustment from 8° to 360°, tilt from 0° to 68°, and rotation from 10° to 360°. It operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, wall, slant, in-ceiling, pendant, pole, corner, and sunshade accessories are available.
