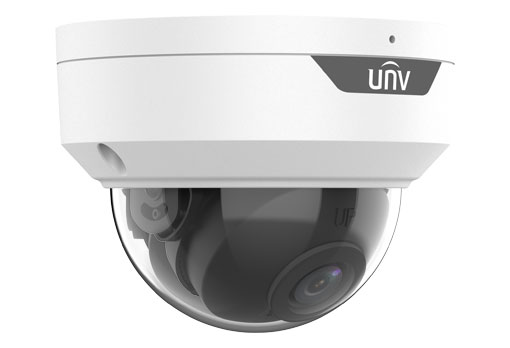

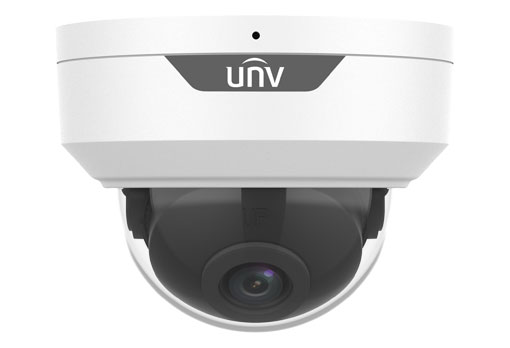

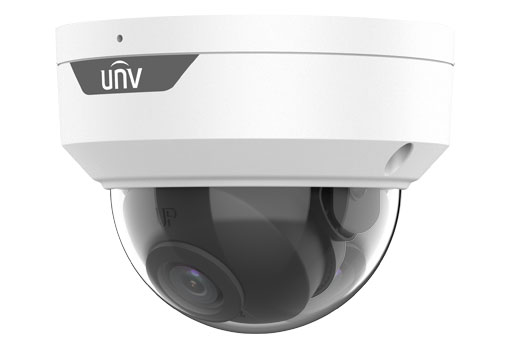

Uniview - IPC328SB-ADF40K-I0 - 8MP LightHunter Fixed IR Dome Network Camera, 4.0mm
Part number:
IPC328SB-ADF40K-I0
Price:
UNV 8MP LightHunter WDR Network IR Fixed Dome (4.0mm, Premier Protection, PoE, Metal, 30m IR)
Features:
- High quality image with 8MP, 1/2.7"CMOS sensor
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant and IP67 protection
| IPC328SB-ADF40K-I0 | ||
| Camera | ||
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | |
| Lens | 4.0mm@F1.6 | |
| DORI Distance | Recognize (m) | Identify (m) |
| 16.8 | 8.4 | |
| 24.0 | 12.0 | |
| Angle of View (H) | 91.2° | |
| Angle of View (V) | 47.9° | |
| Angle of View (O) | 95.9° | |
| Adjustment angle | Tilt: 0° ~ 68° | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Digital Noise Reduction | 2D/3D DNR | |
| S/N | >56dB | |
| IR Range | Up to 30m (98ft) IR range | |
| Wavelength | 850nm | |
| IR On/Off Control | Auto/Manual | |
| Defog | Digital Defog | |
| WDR | 120dB | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| H.264 code profile | Baseline profile, Main profile, High profile | |
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |
| Video Bit Rate | 128 Kbps~16 Mbps | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 4 areas | |
| ROI | Up to 8 areas | |
| Motion Detection | Up to 4 areas | |
| Image | ||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |
| Smart IR | Support | |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |
| Dewarping | Supported | |
| HLC | Supported | |
| BLC | Supported | |
| Audio | ||
| Audio Compression | G.711 | |
| Two-way audio | Supported | |
| Suppression | Supported | |
| Sampling Rate | 8KHZ | |
| Storage | ||
| Edge Storage | Micro SD, up to 256GB | |
| Network Storage | ANR | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |
| Client | EZStation EZView EZLive | |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||
| Interface | ||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | |
| Output: impedance 600Ω; amplitude 2V [p-p] | ||
| Alarm I/O | 1/1 | |
| Built-in Mic | Supported | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |
| Certifications | ||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |
| General | ||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |
| Power consumption: Max 6.0W | ||
| Dimensions (Ø x H) | Φ109 x 83mm (Ø4.3” x 3.3”) | |
| Net Weight | 0.43kg ( 0.95lb) | |
| Material | Metal | |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Surge Protection | 4KV | |
| Ingress Protection | IP67 | |
| Vandal Resistant | IK10 | |
| Reset Button | N/A | |
