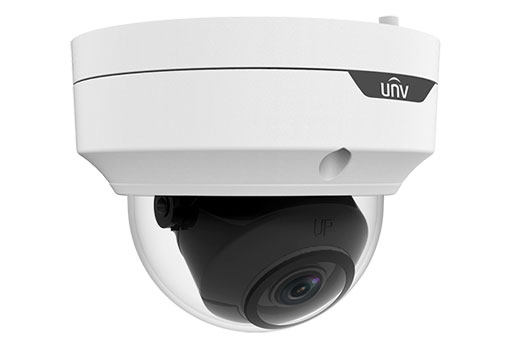

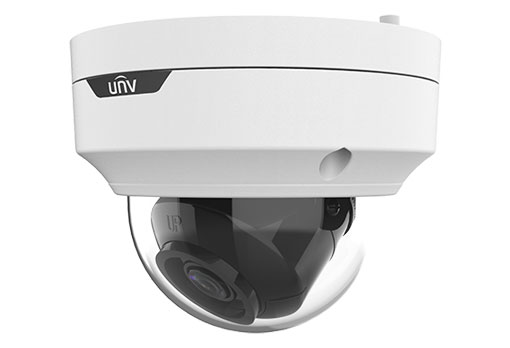

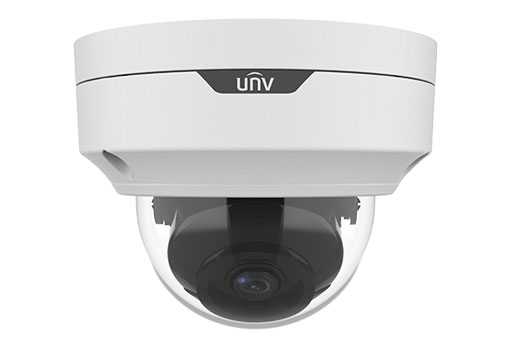

Uniview - IPC3534SA-DF40K - 4MP Deep Sight Fixed Dome Camera, 4.0mm
Part number:
IPC3534SA-DF40K
Price:
UNV 4MP DeepSight Fixed Dome Camera, 4.0mm
Features:
- 1/1.8" progressive scan CMOS
- Up to 2688×1520 resolution,30fps;
- 2.8mm/4.0mm optional
- Ultra 265,H.265
- Smart IR, up to 50m IR distance
- 120dB True WDR
- 2D/3D DNR, ROI,ONVIF
- DC12V, Wide voltage range of ±25%
- IP67
- IK10
- PoE(IEEE 802.3af)
Optics:
- 1/1.8’’, Powered by lighthunter
- Smart IR, up to 40m (131 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
Smart:
- People Counting, support tripwire people counting and area people counting
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- Exception Detection and Statistics, include Object Removed, Object Left Behind, Defocus, Scene Change
Compression:
- Ultra 265, H.265, H.264, MJPEG
- Five streams
- 2688*1520@30fps in the main stream
- ROI (Region of Interest)
Network:
- ONVIF Conformance
Structure:
- DC12V or PoE power supply
- Wide voltage range of ±25% in DC
- Micro SD, up to 256 GB
- Alarm 1 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
- IK10 vandal resistant
| IPC3534SA-DF40K | ||
| Camera | ||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | |
| Lens | 4.0mm@F1.6 | |
| Iris | Fixed | |
| DORI Distance | Observe (m) | Recognize (m) |
| 16.8(55.1ft) | 8.4(27.6ft) | |
| 24.0(78.7ft) | 12.0(39.4ft) | |
| Angle of View (H) | 94.7° | |
| Angle of View (V) | 49.6° | |
| Angle of View (O) | 116.5° | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| Adjustment angle | Tilt: 0°~70° | |
| Min. Illumination | Colour:0.001lux (F1.6, AGC ON) 0 lux with IR | |
| WDR | 120dB | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| IR Range | Up to 50m (164 ft) IR range | |
| Wavelength | 850nm | |
| IR On/Off Control | Auto/Manual | |
| Defog | Digital Defog | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |
| Video Bit Rate | 128 Kbps~16 Mbps | |
| ROI | Supported | |
| Video stream | Triple streams | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 8 areas(8 blacks/4 mosaics+4 blacks) | |
| Image | ||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |
| Digital noise reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |
| HLC | Support | |
| BLC | Support | |
| Smart | ||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |
| Audio | ||
| Audio Compression | G.711U,G.711A | |
| Two-way Audio | Supported | |
| Suppression | Supported | |
| Sampling Rate | 8KHZ | |
| Storage | ||
| Edge Storage | Micro SD, up to 256 GB | |
| Network Storage | ANR,NAS(NFS) | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |
| Client | EZStation EZLive Ezview | |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |
| Interface | ||
| Audio I/O | Audio cable | |
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | ||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | ||
| Alarm I/O | 1/1 | |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |
| Certification | ||
| Certifications | CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15 | |
| General | ||
Power | DC12V(±25%), PoE(IEEE 802.3af) | |
| Power consumption: Max 8.3W | ||
| Support overcurrent protection, Input short circuit protection | ||
| Dimensions (Ø x H) | Φ128.1 x 99.9mm(Φ5.04" x 3.93") | |
| Weight | 0.59kg(1.3lb) | |
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |
| Surge protection | 6KV | |
| Vandal Resistant | IK10 | |
| Ingress Protection | IP67 | |
