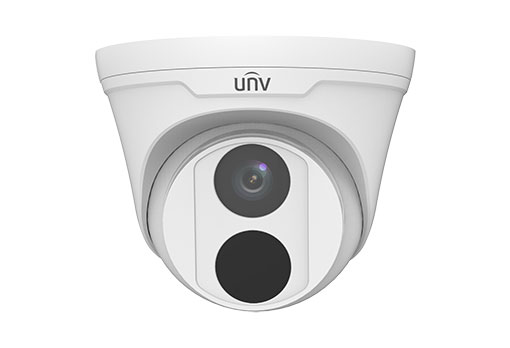

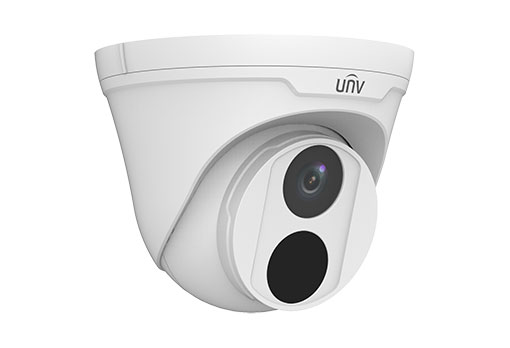

Uniview - IPC3614LR3-PF40-D - 4MP Fixed Dome Network Camera-EOL
Part number:
IPC3614LR3-PF40-D
Price:
4MP Fixed Dome Network Camera
Features:
Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265,H.264,MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC3614LR3-PF28-D | IPC3614LR3-PF40-D | |||||||
| Camera | ||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 4.0mm@2.0 | ||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
| 2.8mm | 42 | 16.8 | 8.4 | 4.2 | ||||
| 4.0mm | 60 | 24 | 12 | 6 | ||||
| Angle of view(H) | 104.4° | 78.9° | ||||||
| Angle of View (V) | 54.4° | 39.6° | ||||||
| Angle of View (O) | 135.7° | 97.0° | ||||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | |||||
Min. Illumination | Colour: 0.03 Lux (2.0, AGC ON) 0 Lux with IR | |||||||
| IR Range | Up to 30m (98 ft) IR range | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| S/N | >52dB | |||||||
| WDR | DWDR | |||||||
| Noise Reduction | 2D/3D | |||||||
| Video | ||||||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | |||||||
Frame Rate | Main Stream:4MP (2592*1520): Max. 20 fps; Sub Stream:720P (1280*720): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 2 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Network | ||||||||
| Protocols | IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL | |||||||
| Compatible Integration | ONVIF(Profile S),API | |||||||
| Interface | ||||||||
| Network | 10/100M Base-TX Ethernet | |||||||
| General | ||||||||
Power | 12 V DC±25%, PoE (IEEE802.3 af) | |||||||
| Power consumption: Max 4W | ||||||||
| Dimensions (Ø x H) | Φ118x 96 mm (Φ4.6” x 3.8”) | |||||||
| Weight | 0.35kg (0.77lb) | |||||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing) | |||||||
| Ingress Protection | IP67 | |||||||
