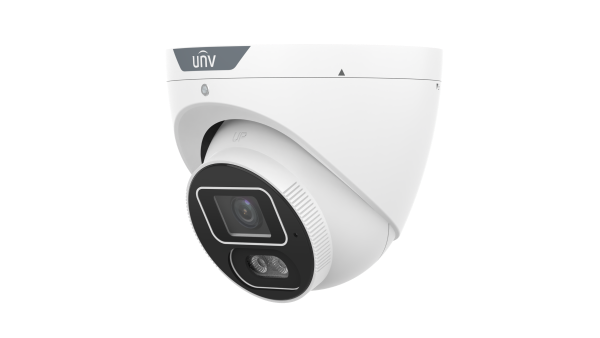

UNV - IPC3614SB-ADF40KM-DL-I1 - 4MP Fixed Intelligent Dual light Turret Network Camera

Product Overview

The Uniview IPC3614SB-ADF40KM-DL-I1 is a 4MP fixed intelligent dual-light turret network camera with a 4.0 mm lens. It combines Smart Intrusion Prevention, people counting, 120 dB true WDR, and infrared/warm-light illumination up to 30 m for advanced day-and-night surveillance.

The camera supports 4MP video at up to 30 fps, triple-stream encoding, microSD storage up to 512 GB, DC 12 V or IEEE 802.3af PoE power, and IP67 protection.

Key Configuration

Model: IPC3614SB-ADF40KM-DL-I1 | Resolution: 4MP, up to 2688 × 1520 at 30 fps | Lens: 4.0 mm fixed, F1.6 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T/M | Protection: IP67

Key Features

• · 4MP 1/2.9-inch CMOS sensor with 2688 × 1520 video at up to 30 fps
• · 4.0 mm fixed lens with 82.2° horizontal field of view
• · Dual-light illumination with infrared and warm light up to 30 m each
• · 120 dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
• · Smart Intrusion Prevention with cross-line, intrusion, enter-area, and leave-area detection
• · Target classification and false-alarm filtering for people, vehicles, and non-motor vehicles
• · People-flow counting and crowd-density detection
• · Ultra 265, H.265, H.264, and MJPEG compression with triple streams
• · 9:16 corridor mode, ROI encoding, and microSD edge storage up to 512 GB
• · DC 12 V or IEEE 802.3af PoE power, 4 kV surge protection, and IP67 housing

Technical Context

Dual-light illumination combines infrared and warm light up to 30 m for flexible night monitoring. The 4.0 mm lens provides more focused coverage than the 2.8 mm version, while Smart Intrusion Prevention classifies targets to reduce false alarms and people-counting analytics provide occupancy and flow information.

Installation Notes

The metal turret housing supports pan adjustment from 0° to 360°, tilt from 0° to 80°, and rotation from 0° to 360°. It operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, wall, slant, pole, pendant, corner, and cable-gland accessories are available.
