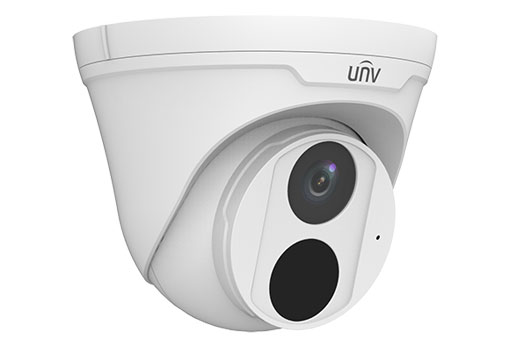

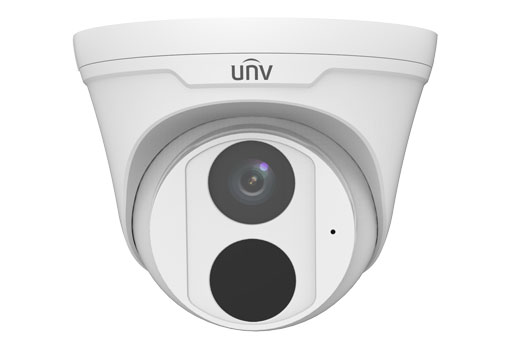

Uniview - IPC3614SR3-ADPF40-F - UNV 4MP WDR Fixed Turret Camera, 4.0mm, Built-in Mic
Part number:
IPC3614SR3-ADPF40-F
Price:
UNV 4MP WDR Fixed Turret Camera, 4.0mm, Built-in Mic
Features:
Optics:
- Day/night functionality
- Up to 120dB WDR (Wide Dynamic Range)
- Smart IR, up to 30m (98ft) IR distance
Compression:
- Ultra 265, H.264, MJPEG
- Triple streams
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- Micro SD, up to 256 GB
- Built-in Mic
- 2KV surge protection designed for network interface
- IP67
- 3-Axis
| IPC3614SR3-ADPF28-F | IPC3614SR3-ADPF40-F | |||||||
| Camera | ||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | ||||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | ||||
| Angle of view(H) | 107.8° | 82.0° | ||||||
| Angle of View (V) | 57.0° | 41.6° | ||||||
| Angle of View (O) | 140.1° | 100.9° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour:0.01Lux (F2.0, AGC ON) 0Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >56dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile | |||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P(1920*1080),Max30fps Sub Stream: 720P (1280*720), Max 30fps; Third Stream: 4CIF (704*576), Max 30fps | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 4 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180° | |||||||
| Dewarping | NA | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Audio | ||||||||
| Audio Compression | G.711 | |||||||
| Suppression | Supported | |||||||
| Sampling Rate | 8KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 256 GB | |||||||
| Network Storage | ANR | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Client | EZStation EZView EZLive | |||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||
| Interface | ||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
| Built-in Mic | Supported | |||||||
| Certifications | ||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 5.5W | ||||||||
| Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6” x 3.8”) | |||||||
| Net Weight | 0.33kg (0.73lb) | |||||||
| Material | Metal + Plastic | |||||||
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 2KV | |||||||
| Ingress Protection | IP67 | |||||||
