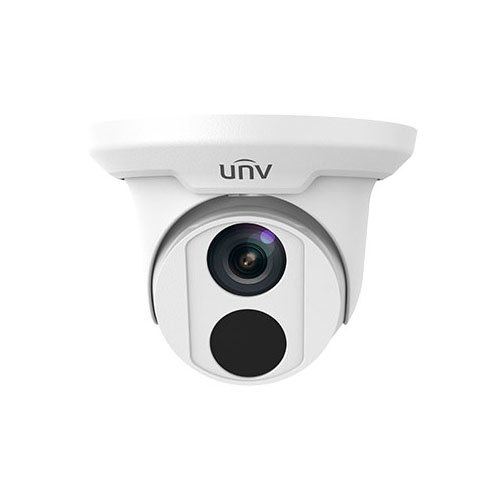

Uniview - IPC3614SR3-DPF28 - UNV 4MP Network IR Fixed Dome Camera(2.8mm,Standard,30m IR,PoE)
Part number:
IPC3614SR3-DPF28
Price:
UNV 4MP Network IR Fixed Dome Camera(2.8mm,Standard,30m IR,PoE)
Features:
Optics:
- Day/night functionality
- Up to 120dB WDR (Wide Dynamic Range)
- Smart IR, up to 30m (100ft) IR distance
Compression:
- Ultra 265, H.264, MJPEG
- Triple streams
- 9:16 corridor format
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- 4KV surge protection designed for network interface
- IP67 Waterproof
- 3-Axis Bracket
| IPC3614SR3-DPF28 | |
| Camera | |
| Sensor | 1/3", 4 megapixel, progressive scan, CMOS |
Lens | 2.8mm@F1.8 Angle of view(H): 112.5° |
Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR | 30m (98 ft) IR range |
| AWB(Auto white balance) |
Auto/manual |
| Gain Control | Auto/manual |
| WDR | 120 dB |
| Noise Reduction | 2D/3D |
| Video | |
| Max. Resolution | 2592×1520 |
| Video Compression | H.265, H.264, MJPEG |
Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| 9:16 Corridor Mode | Supported |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 4 areas |
| Network | |
Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, QoS |
| Compatible Integration | ONVIF, API |
| Interface | |
| Network | 10M/100M Base-TX Ethernet |
| General | |
Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: Max 5.5 W | |
| Dimensions (Ø x H) | Φ126 x 94 mm (Ø5.0” x 3.7”) |
| Weight | 0.33 kg (0.73 lb) |
| Operating Conditions | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP66 |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
