IPC3614SR3-DPF28M - EOL
This product has been discontinued.
Part number:
IPC3614SR3-DPF28M
Price:

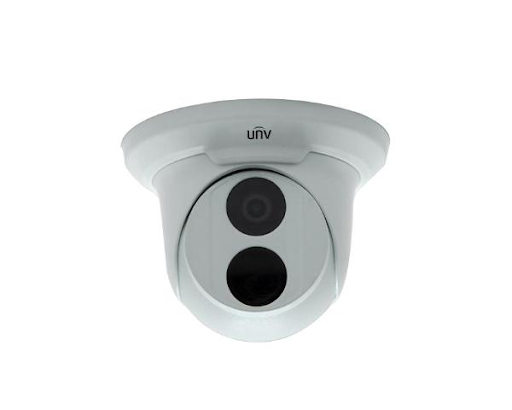

UNV 4MP Network IR Fixed Dome Camera(2.8mm,Standard,Metal,30m IR,PoE)
Optics:
- Day/night functionality
- Up to 120dB WDR (Wide Dynamic Range)
- Smart IR, up to 30m (100ft) IR distance
Compression:
- Ultra 265, H.264, MJPEG
- Triple streams
- 9:16 corridor format
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- 4KV surge protection designed for network interface
- IP67 Waterproof
- 3-Axis Bracket
| IPC3614SR3-DPF28 | IPC3614SR3-DPF36 | |||||||
| Camera | ||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 3.6mm@F2.0 | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | ||||
| 3.6 | 81 | 32.4 | 16.2 | 8.1 | ||||
| Angle of view(H) | 104.4° | 76.5° | ||||||
| Angle of View (V) | 67° | 53.2° | ||||||
| Angle of View (O) | 135.7° | 99.5° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| Adjustment Range | Pan: 0°~360° , Tilt: 0° ~ 77°, Rotation: 0° ~ 360° | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Minimum Illumination | Colour: 0.03Lux (F2.0, AGC ON) 0Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| AWB (Auto white balance) |
Auto/manual | |||||||
| Gain Control | Auto/manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
Frame Rate | Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | |||||||
| Interface | ||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
