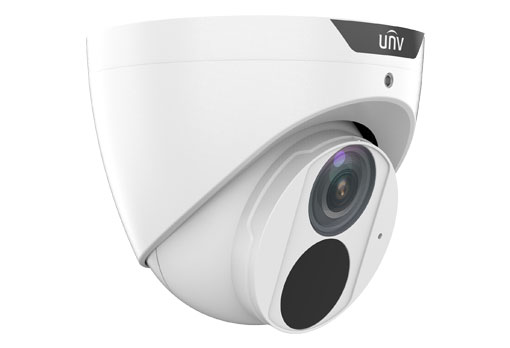

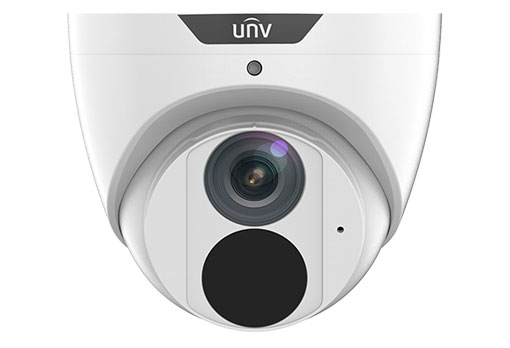

UNV 4MP Network IR Fixed Dome Camera (2.8mm, LightHunter, Metal, 30m IR, PoE, Built-in Mic, SD)
Features:
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@30/ 25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
| IPC3614SS-ADF28KM | IPC3614SS-ADF40KM | |||||||
| Camera | ||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | ||||
| 4.0 | 90 | 36 | 18 | 9 | ||||
| Angle of view(H) | 107.8° | 82° | ||||||
| Angle of View (V) | 57.0° | 41.6° | ||||||
| Angle of View (O) | 140.1° | 100.9° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 40m (131ft) IR range | |||||||
| wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| 9:16 Corridor Mode | Support | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| Dewarping | Support | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
