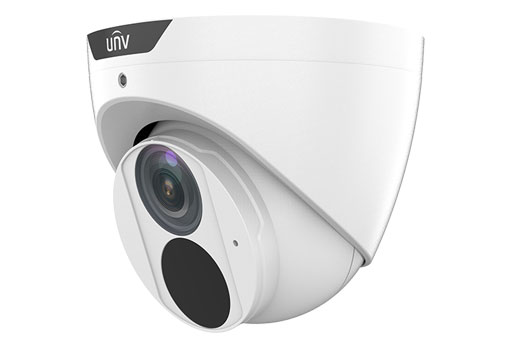

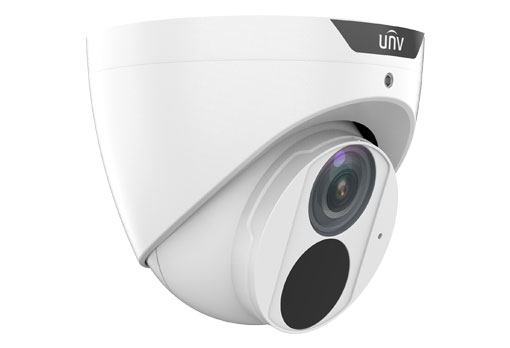

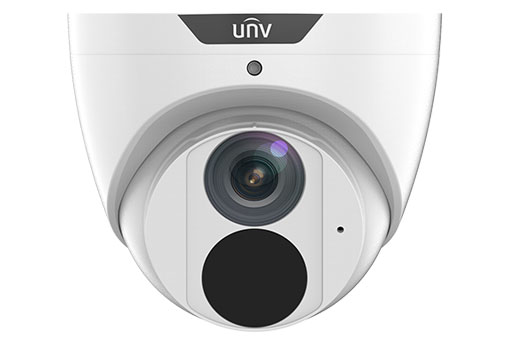

Uniview - IPC3614SS-ADF40KM-I0 - 4MP LightHunter Deep Learning Dome Network Camera, 4.0mm
Part number:
IPC3614SS-ADF40KM-I0
Price:
UNV 4MP Network IR Fixed Dome Camera(4.0mm,Premier Protection,LightHunter,Metal,30m IR,PoE, Built-in Mic, SD)
Features:
Optics:
- 1/2.7’’, Powered by lighthunter
- Smart IR, up to 40m (131 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
Smart:
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
Compression:
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 2688*1520@30fps in the main stream
- ROI (Region of Interest)
Network:
- ONVIF Conformance
Structure:
- Built-in Mic
- DC12V or PoE power supply
- Wide voltage range of ±25% in DC
- Micro SD, up to 256 GB
- IP67 ingress protection
| IPC3614SS-ADF28KM-I0 | IPC3614SS-ADF40KM-I0 | ||||||
| Camera | |||||||
| Sensor | 1/2.7", 4.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||
| Iris | Fixed | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | |||
| 2.8 | 63.0(206.7ft) | 25.2(82.7ft) | 12.6(41.7ft) | ||||
| 4.0 | 90.0(295.3ft) | 36.0(118.1ft) | 18.0(59.1ft) | ||||
| Field of View (H) | 95.8° | 78.9° | |||||
| Field of View (V) | 51.5° | 40.8° | |||||
| Field of View (D) | 124.5° | 97.0° | |||||
| Shutter | Auto/Manual, 1~1/100000s | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~75° | Rotate: 0°~360° | ||||
| Min. Illumination | Colour:0.002lux (F1.6, AGC ON) 0 lux with IR | ||||||
| WDR | 120dB | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >56dB | ||||||
| IR Range | Up to 40m (131ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| ROI | Supported | ||||||
| Video stream | Triple streams | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Intelligent | |||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||
| Events | |||||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | ||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Exception Detection And Statistics | Object Removed, Object Left Behind | ||||||
| Audio | |||||||
| Audio Compression | G.711U,G.711A | ||||||
| Two-way Audio | N/A | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||
| Network Storage | ANR,NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Client | EZStation EZLive Ezview | ||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Interface | |||||||
| Audio I/O | N/A | ||||||
| Alarm I/O | N/A | ||||||
| Built-in Mic | Supported | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Certification | |||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||
| General | |||||||
Power | DC12V(±25%), PoE(IEEE 802.3af) | ||||||
| Power consumption: Max 4W | |||||||
| Dimensions (Ø x H) | Φ110.5 x 94.1mm(Φ4.35'' x 3.7'') | ||||||
| Weight | 0.43kg(0.95lb) | ||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge protection | 2KV | ||||||
