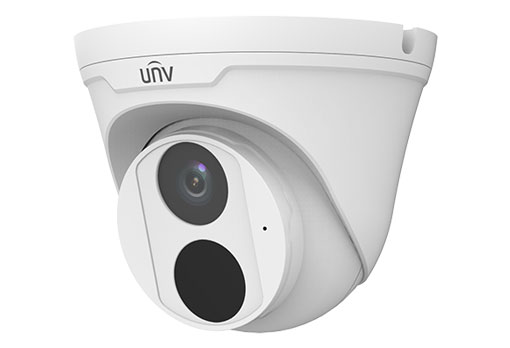

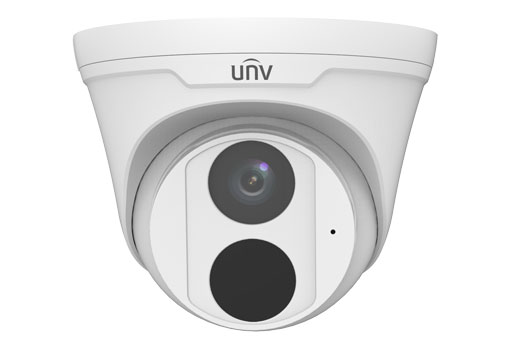

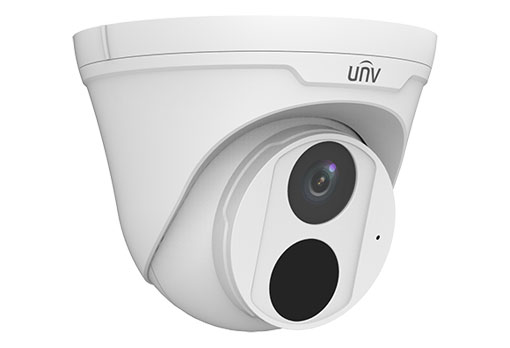

Uniview - IPC3615SR3-ADF40K-G - UNV 5MP WDR Fixed Turret, 4.0mm, Built-in Mic
Part number:
IPC3615SR3-ADF40K-G
Price:
UNV 5MP WDR Fixed Turret, 4.0mm, Built-in Mic
Features:
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
| IPC3615SR3-ADF40K-G | |||
| Camera | |||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||
| Lens | 4.0mm@F1.6 | ||
DORI Distance | Observe (m) | Recognize (m) | Identify (m) |
| 25.2 | 12.6 | 6.3 | |
| 36.0 | 18.0 | 9.0 | |
| Angle Of View (H) | 91.2° | ||
| Angle Of View (V) | 47.9° | ||
| Angle Of View (O) | 95.9° | ||
| Adjustment angle | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
Minimum Illumination | Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| Digital noise reduction | 2D/3D DNR | ||
| S/N | >56dB | ||
| IR Range | Up to 30m (98ft) IR range | ||
| Wavelength | 850nm | ||
| IR On/Off Control | Auto/Manual | ||
| Defog | Digital Defog | ||
| WDR | 120dB | ||
| Video | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||
Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||
| Video Bit Rate | 128 Kbps~16 Mbps | ||
| 9:16 Corridor Mode | Supported | ||
| OSD | Up to 4 OSDs | ||
| Privacy Mask | Up to 4 areas | ||
| ROI | Up to 8 areas | ||
| Motion Detection | Up to 4 areas | ||
| Image | |||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||
| Digital noise reduction | 2D/3D DNR | ||
| Smart IR | Supported | ||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||
| Dewarping | N/A | ||
| HLC | Supported | ||
| BLC | Supported | ||
| Smart | |||
| Behavior Detection | (Cross line, intrusion)based on human body detection, motion detection, tampering alarm, audio detection | ||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||
| Network | |||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||
Client | EZStation EZView EZLive | ||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||
| Audio | |||
| Audio Compression | G.711 | ||
| Suppression | Supported | ||
| Sampling Rate | 8KHZ | ||
| Storage | |||
| Edge Storage | Micro SD, up to 256 GB | ||
| Network Storage | ANR,NAS(NFS) | ||
| Interface | |||
| Network | 10/100M Base-TX Ethernet | ||
| Built-in Mic | Supported | ||
| Certifications | |||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||
| General | |||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||
| Power consumption: Max 6.0W | |||
| Dimensions (Ø x H) | Φ118 x 95mm (Φ4.6” x 3.8”) | ||
| Net Weight | 0.35kg (0.77lb) | ||
| Material | Metal + Plastic | ||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Surge Protection | 4KV | ||
| Ingress Protection | IP67 | ||
| Reset Button | N/A | ||
