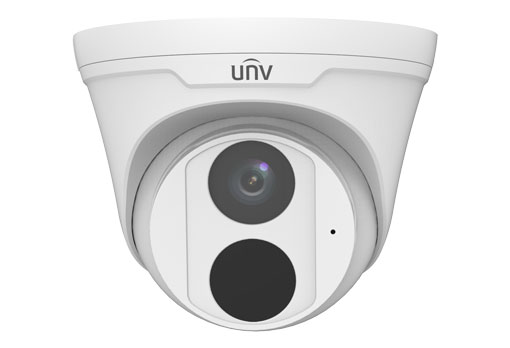

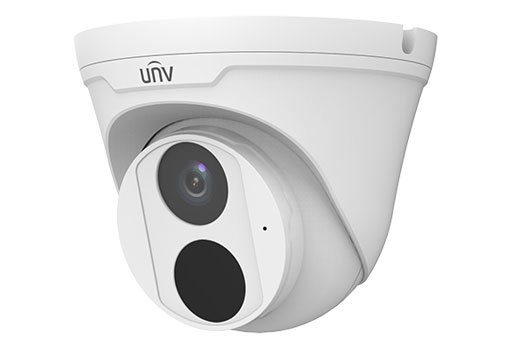

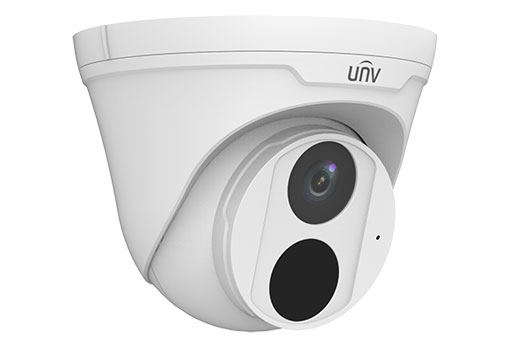

Uniview - IPC3615SR3-ADPF28-F - EOL Replacement: IPC3615SR3-ADF28KM-G
Part number:
IPC3615SR3-ADPF28-F
Price:
UNV 5MP WDR Network IR Fixed Dome(2.8mm,PoE,Metal,30m IR)
Features:
Optics:
- Day/night functionality
- Up to 120dB WDR (Wide Dynamic Range)
- Smart IR, up to 30m (98ft) IR distance
Compression:
- Ultra 265, H.264, MJPEG
- Triple streams
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- Micro SD, up to 128 GB
- Built-in Mic
- 2KV surge protection designed for network interface
- IP67
- 3-Axis
| IPC3615SR3-DPF28M | IPC3615SR3-DPF40M | |||||||
| Camera | ||||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | ||||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | ||||
| Angle of view(H) | 105.6° | 80.0° | ||||||
| Angle of View (V) | 69.9° | 52.2° | ||||||
| Angle of View (O) | 137.3° | 98.4° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >56dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile | |||||||
Frame Rate | Main Stream: 5MP (2592*1944), Max 25fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 25fps; Third Stream: 4CIF (704*576), Max 25fps | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 4 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
Quick Start Guide
1.1mb
