UNV - IPC3616SB-ADF28KMC-I1 - 6MP HD Intelligent Light and Audible Warning Fixed Eyeball
Product Overview

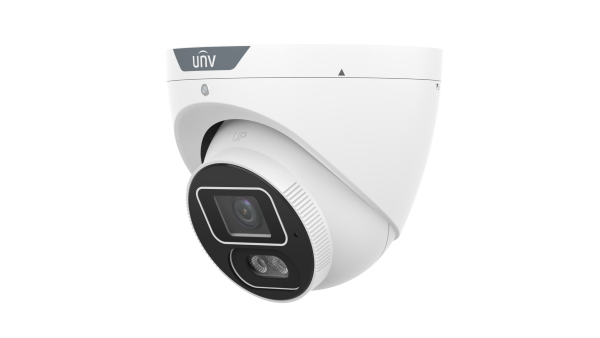

The Uniview IPC3616SB-ADF28KMC-I1 is a 6MP ColorHunter fixed eyeball network camera with Wise-ISP technology, a 2.8 mm lens, and intelligent dual-light illumination. It combines full-color imaging, Smart Intrusion Prevention, people counting, 130 dB true WDR, and built-in light-and-audible warning functions.
The camera supports 6MP video at up to 25 fps, built-in microphone and speaker, two-way audio, triple-stream encoding, microSD storage up to 512 GB, DC 12 V or IEEE 802.3af PoE power, and IP67 protection.
Key Configuration
Model: IPC3616SB-ADF28KMC-I1 | Resolution: 6MP, up to 3288 × 1860 at 25 fps | Lens: 2.8 mm fixed, F1.4 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T | Protection: IP67
Key Features
- · 6MP 1/2.5-inch CMOS sensor with 3288 × 1860 video at up to 25 fps
- · ColorHunter with Wise-ISP technology for 24-hour full-color imaging
- · 2.8 mm fixed wide-angle lens with 110.1° horizontal field of view
- · Dual-light illumination with infrared and warm light up to 30 m each
- · 130 dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
- · Smart Intrusion Prevention with target classification for people, vehicles, and non-motorized vehicles
- · People-flow counting and crowd-density monitoring
- · Built-in microphone and speaker with two-way audio
- · Ultra 265, H.265, H.264, and MJPEG compression with triple streams
- · DC 12 V or IEEE 802.3af PoE power, 4 kV surge protection, and IP67 housing
Technical Context
ColorHunter with Wise-ISP is designed to preserve color detail in low-light scenes, while dual-light illumination combines infrared and warm light up to 30 m. Smart Intrusion Prevention classifies targets to reduce false alarms, and the integrated speaker supports audible warning responses at the camera location.
Installation Notes
The metal eyeball housing supports pan adjustment from 0° to 360°, tilt from 0° to 80°, and rotation from 0° to 360°. It operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, wall, pole, pendant, corner, and cable-gland accessories are available.
| Product Information | |
| Model | IPC3616SB-ADF40KMC-I1 |
| Product Type | 6MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera |
| Sensor | 1/2.5" CMOS |
| Lens and Image | |
| Maximum Resolution | 6MP |
| Lens | 4.0mm fixed lens, F1.4 |
| Field of View | Horizontal: 94.4° Vertical: 48.0° Diagonal: 111.3° |
| Minimum Illumination | Color: 0.002 Lux, F1.4, AGC ON 0 Lux with IR enabled |
| Day/Night | IR-cut filter with automatic switch, ICR |
| Shutter | Auto/manual, 1/1 to 1/100000 s |
| WDR | 130dB true WDR |
| Signal-to-Noise Ratio | >56dB |
| Adjustment Angle | Pan: 0°–360° Tilt: 0°–80° Rotate: 0°–360° |
| DORI Distance | |
| Detect | 90.0m (295.3ft) |
| Observe | 36.0m (118.1ft) |
| Recognize | 18.0m (59.1ft) |
| Identify | 9.0m (29.5ft) |
| Illumination | |
| Supplemental Light | Dual light: infrared and warm light |
| IR Distance | Up to 30m (98.4ft) |
| Warm Light Distance | Up to 30m (98.4ft) |
| IR Wavelength | 850nm |
| Light Control | Automatic/manual IR and supplemental-light control |
| Video | |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Main Stream | 6MP 3288×1860 up to 25fps 6MP 3200×1800 up to 25fps 4MP 2560×1440 up to 30fps 3MP 2304×1296 up to 30fps 1080p and 720p up to 30fps |
| Sub Stream | 720p, D1, 640×360, 2CIF and CIF up to 30fps |
| Third Stream | D1, 640×360, 2CIF and CIF up to 30fps |
| Video Bit Rate | 128Kbps–16Mbps |
| Video Features | Triple streams, U-Code, 9:16 corridor mode, up to 8 OSDs, up to 4 privacy-mask areas, ROI support |
| Intelligent Features | |
| Perimeter Protection | Cross-line, intrusion, enter-area and leave-area detection |
| Target Classification | Human, vehicle and non-motor vehicle classification with false-alarm filtering |
| People Analysis | People-flow counting and crowd-density detection |
| Basic Detection | Motion detection, ultra motion detection, tampering alarm and audio detection |
| Image Functions | 2D/3D DNR, HLC, BLC, digital defog, Smart IR, flip and dewarping |
| Audio and Storage | |
| Audio | Built-in microphone and speaker Two-way audio supported |
| Audio Compression | G.711U, G.711A and AAC-LC |
| Audio Bit Rate | G.711U/G.711A: 64Kbps AAC-LC: 128Kbps |
| Local Storage | MicroSD card up to 512GB |
| Network Storage | ANR and NAS via NFS |
| Network and Interfaces | |
| Network Interface | 1× RJ45 10/100 Base-TX Ethernet port |
| Protocols | IPv4/IPv6, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, HTTP, HTTPS, FTP, RTP, RTCP, RTMP, SNMP, QoS, SSL/TLS and 802.1x |
| Integration | ONVIF Profile S, Profile G and Profile T; API and SDK |
| Users | Up to 32 users with administrator, operator and common-user levels |
| Audio I/O | Built-in microphone and speaker |
| Alarm I/O | Not available |
| Wi-Fi / Video Output | Not available |
| Power and Mechanical | |
| Power Supply | DC 12V ±25% or PoE IEEE 802.3af |
| Power Consumption | Maximum 9.6W |
| Power Connector | Ø5.5mm coaxial power plug |
| Dimensions | Ø111 × 98mm (Ø4.4 × 3.8in) |
| Weight | 0.47kg (1.04lb) |
| Material | Metal |
| Environmental Protection | |
| Protection Rating | IP67 |
| Operating Environment | -30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing |
| Storage Environment | -30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing |
| Surge Protection | 4kV |
| Certifications and Accessories | |
| Certifications | CE-EMC, FCC, CE-LVD, UL/CUL, CE-RoHS and WEEE |
| Compatible Accessories | TR-JB03-G-IN, TR-JB07/WM03-G-IN-V2, TR-WM03-D-IN-V2, TR-A01-IN, TR-UP06-C-IN-V2, TR-UC08-C-V2, TR-SE24-IN, TR-SE24-A-IN and TR-CM24-IN |
