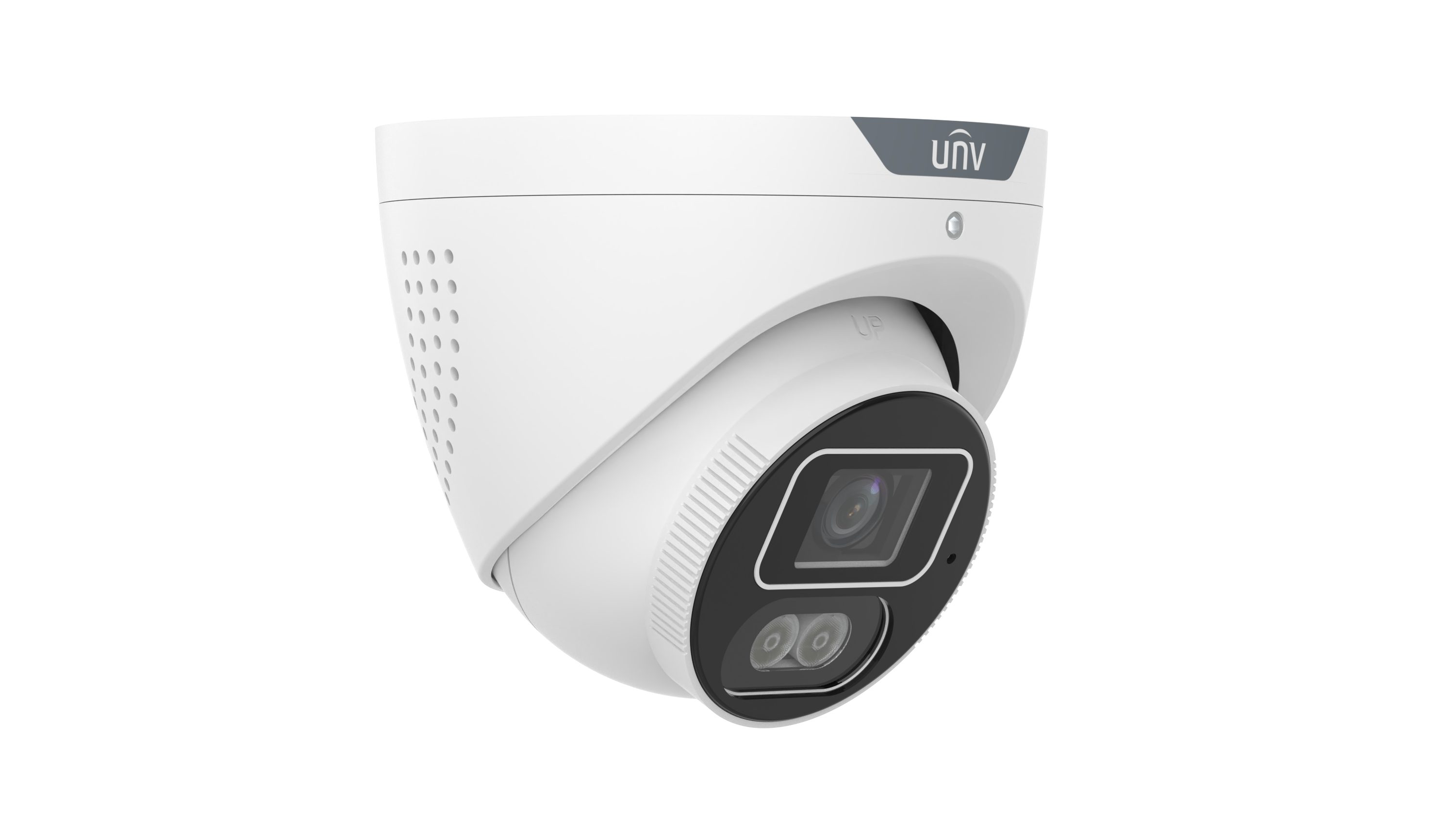

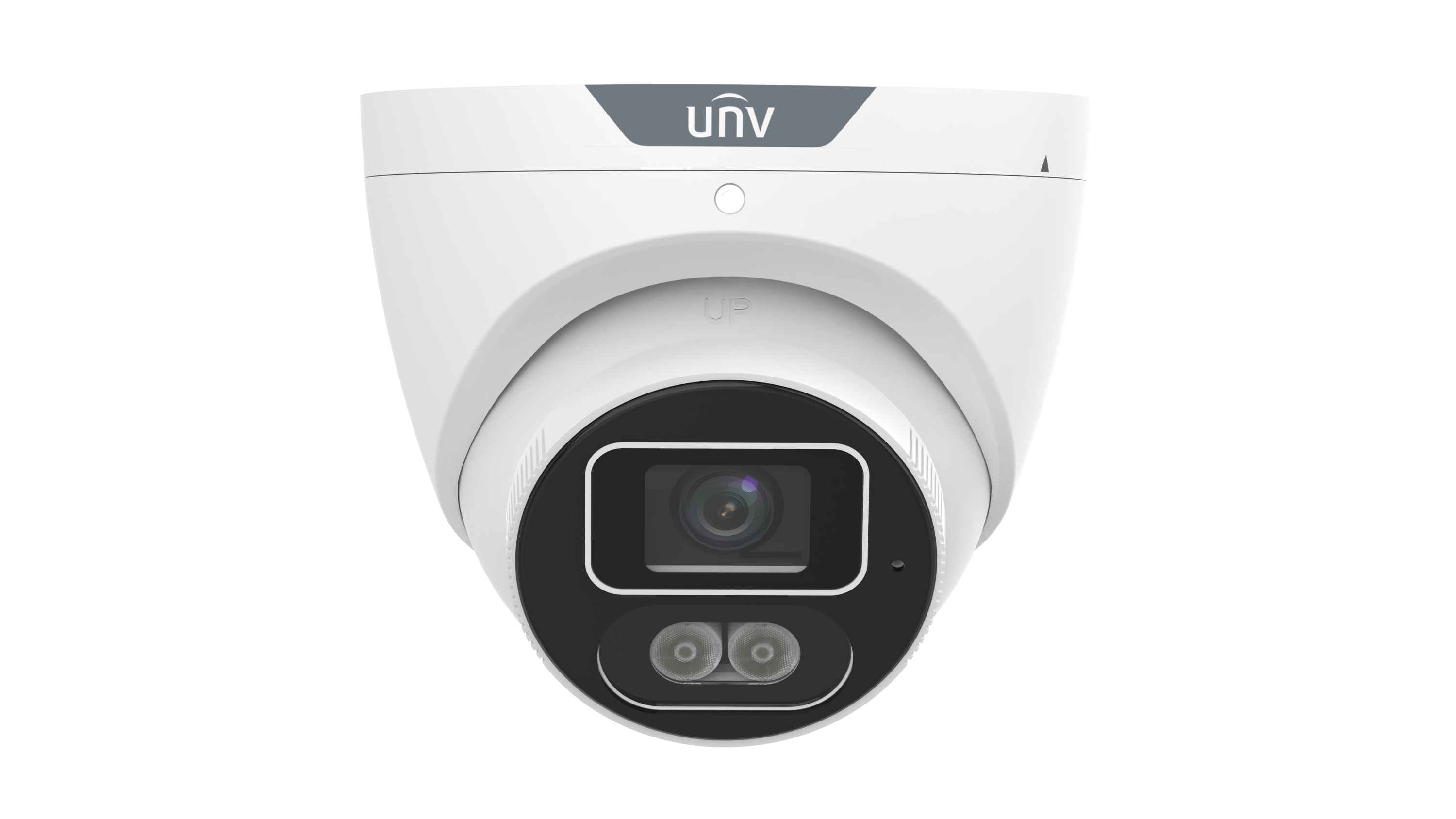

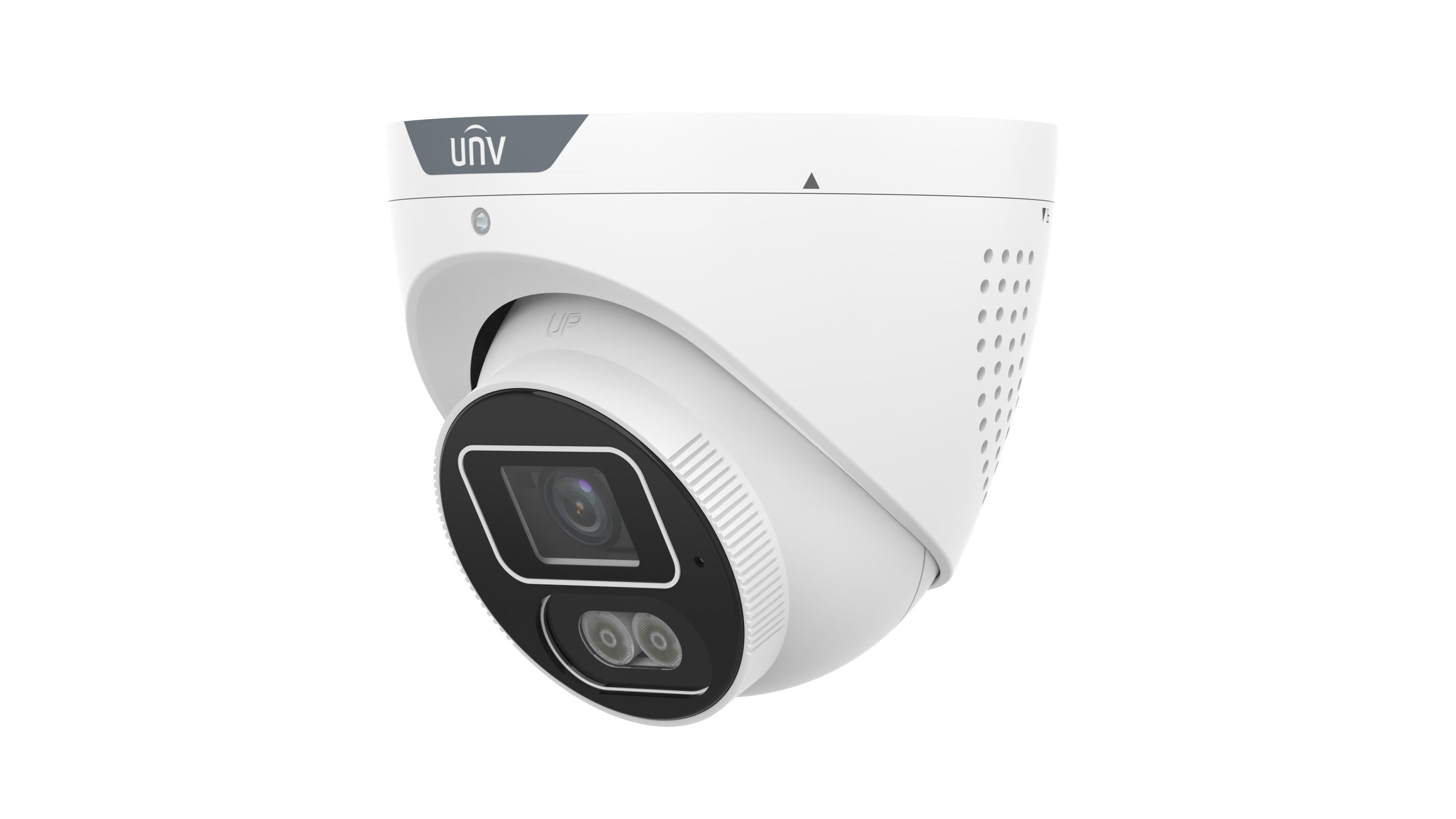

Uniview - IPC3618SB-ADF40KMC-I1 - 8MP WDR Dual-light Alarm Eyeball Network Camera
• High quality image with 8 MP, 1/2.7" CMOS sensor
• 8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
• Intelligent people flow counting and crowd density monitoring
• 130 dB true WDR technology ensures clear image in strong backlight scene
• Supports 9:16 corridor mode
• Built-in mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• MicroSD, up to 512 GB
• IP67 protection
| Camera | |
| Max Resolution / Sensor | 8 MP (3840 × 2160) / 1/2.7" CMOS |
| Min. Illumination (Color/Light) | 0.003 Lux (F1.4, AGC ON), 0 Lux with light |
| Day/Night / Shutter | IR-cut filter with auto switch (ICR) / Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle (Tilt) | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| S/N / WDR | > 56 dB / 130 dB |
| Lens | |
| Focal Length / Lens Type | 4.0 mm / Fixed |
| Iris Type / Iris | Fixed / F1.4 |
| Field of View (H/V/D) | H: 87.1°, V: 50.1°, D: 100.2° |
| DORI Distance | |
| DORI Distance (Detect) | **120.0 m (393.7 ft.)** |
| DORI Distance (Observe) | 48.0 m (157.5 ft.) |
| DORI Distance (Recognize) | 24.0 m (78.7 ft.) |
| DORI Distance (Identify) | 12.0 m (39.4 ft.) |
| Illuminator | |
| Supplemental Light | Dual light (IR and Warm Light) |
| Illumination Distance (IR/Warm) | 30 m (98.4 ft) |
| Control / Wavelength | IR On/Off and Light On/Off Auto/Manual / 850 nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Baseline/Main/High profile) |
| Frame Rate (Main Stream) | 8 MP (3840 × 2160), max. 30 fps |
| Video Bit Rate / Stream | 128 Kbps to 16 Mbps / Triple streams |
| OSD / Privacy Mask / ROI / U-code | Up to 8 OSDs / Up to 4 areas / Support / Support |
| Image | |
| Digital Noise Reduction / Smart IR | 2D/3D DNR / Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Features | HLC (Support), BLC (Support), Defog (Digital defog) |
| Intelligent Features | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (human/vehicle filtering) |
| People Counting | Support people flow counting and crowd density monitoring |
| Basic Events | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| Audio | |
| Compression / Bitrate | G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz) |
| Two-way Audio / Suppression | Support / Support |
| Built-in Mic / Speaker | Support / Support |
| Storage & Network | |
| Edge Storage / Network Storage | MicroSD, up to 512 GB / ANR, NAS (NFS) |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| General & Environment | |
| Power / Power Consumption | DC 12 V±25%, PoE (IEEE 802.3af) / Max. 11.5 W |
| Dimensions (Ø × H) / Weight | Ø111 mm × 98 mm (Ø4.4" × 3.8") / 0.47 kg (1.04 lb) |
| Protection Rating | IP67 |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Surge Protection | 4 KV |
| Certification | |
| EMC | CE-EMC, FCC |
| Safety | CE-LVD, UL/CUL |
| Environment | CE-RoHS, WEEE |
| Web Client Language | 20 Languages |
The IPC3618SB-ADF40KMC-I1 camera uses an 8 MP 1/2.7" CMOS sensor, providing a maximum resolution of 3840 × 2160 at up to 30 frames per second. The optics feature a fixed lens with a focal length of 4.0 mm and an F1.4 aperture, offering a horizontal field of view of 87.1°. The camera utilizes a Dual Light illumination system Smart IR and Warm Light, with an illumination distance of up to 30 meters. Video compression is supported via Ultra 265, H.265, H.264, and MJPEG, and the camera supports triple video streams.
Image processing features include 130 dB Wide Dynamic Range, which processes high-contrast lighting to maintain detail in both bright and shadowed areas. 2D/3D Digital Noise Reduction is applied to clean up video artifacts. The ColorHunter with Wise-ISP technology enables 24-hour full-color images, with a minimum color illumination of only 0.003 Lux. The camera includes advanced Intelligent Intrusion Prevention System, which classifies targets (humans/vehicles) to reduce false alarms. The integrated built-in mic and speaker provide two-way audio and facilitate active deterrence with light and sound alarms. The camera has an IP67 protection rating against dust and water immersion. The operational temperature range is specified from -30 °C to 60 °C (-22 °F to 140 °F). Power is supplied via DC 12 V or Power over Ethernet, with a maximum power consumption of 11.5 W.
