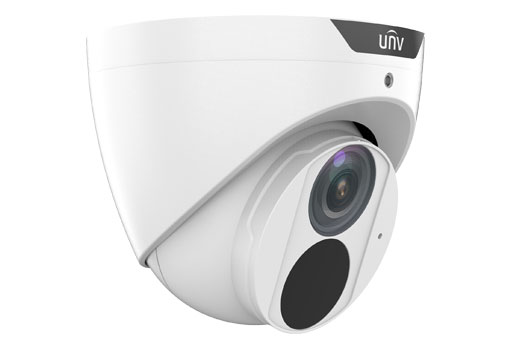

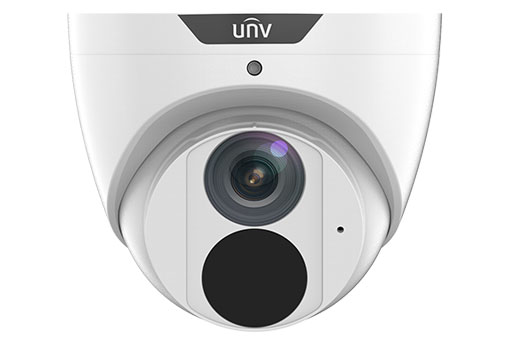

Uniview - IPC3618SR3-ADF40KM-G - UNV 8MP WDR Network IR Fixed Turret Camera
Part number:
IPC3618SR3-ADF40KM-G
Price:
UNV 8MP WDR Network IR Fixed Turret Camera
Features:
- High quality image with 8MP, 1/2.7"CMOS sensor
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
| IPC3618SR3-ADF40KM-G | ||
| Camera | ||
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | |
| Minimum Illumination | Support LightHunter: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| Adjustment angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° | |
| S/N | >56dB | |
| WDR | 120dB | |
| Lens | ||
| Lens Type | 2.8mm and 4.0mm @1.6, Fixed-focal | |
| Lens Mount | M12 | |
| Angle of view (H) | 112.9° | |
| Angle of View (V) | 59.1° | |
| Angle of View (O) | 121.2° | |
| DORI | ||
| DORI Distance | Lens (mm) | Detect (m) |
| 2.8mm | 84 | |
| 4.0mm | 120 | |
| Illuminator | ||
| IR Range | Up to 30m (98ft) IR range | |
| Wavelength | 850nm | |
| IR On/Off Control | Auto/Manual | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| H.264 code profile | Baseline profile, Main profile, High profile | |
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |
| Video Bit Rate | 128 Kbps~16 Mbps | |
| U-code | Supported | |
| 9:16 Corridor Mode | Supported | |
| OSD | Up to 4 OSDs | |
| Privacy Mask | Up to 4 areas | |
| ROI | Up to 8 areas | |
| Motion Detection | Up to 4 areas | |
| Image | ||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |
| Digital noise reduction | 2D/3D DNR | |
| Smart IR | Supported | |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |
| Dewarping | N/A | |
| HLC | Supported | |
| BLC | Supported | |
| Defog | Digital Defog | |
| Events | ||
| Basic Detection | Cross line, intrusion(based on human body detection) | |
| motion detection, tampering alarm, audio detection | ||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | |
| Audio | ||
| Audio Compression | G.711 | |
| Suppression | Supported | |
| Sampling Rate | 8KHZ | |
| Storage | ||
| Edge Storage | Micro SD, up to 256 GB | |
| Network Storage | ANR,NAS(NFS) | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |
| Client | EZStation EZView EZLive | |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | ||
| Interface | ||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |
| Built-in Mic | Supported | |
| Certification | ||
| EMC | FCC: FCC Part 15 | |
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 | |
| General | ||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |
| Power consumption: Max 4.5W | ||
| Power Interface | Ø 5.5mm coaxial power plug | |
| Dimensions (Ø x H) | Φ118 x 95mm (Φ4.6” x 3.8”) | |
| Weight | 0.36kg (0.79lb) | |
| Material | Metal | |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Surge Protection | 4KV | |
| Reset Button | N/A | |
| Ingress Protection | Ingression protection: IP67 | |
