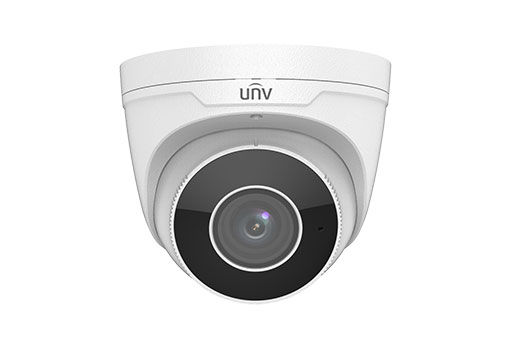

Uniview - IPC3632ER3-DUPZ-C - 2MP Starlight Eyeball Network Motorized Vari-focal Dome Camera
This product has been discontinued.
Part number:
IPC3632ER3-DUPZ-C
Price:
UNV 2MP Starlight Eyeball Network Motorized Vari-focal Dome Camera(WDR,SimPlified Cable,PoE,RJ45,Mic,2.7-13.5mm,30m IR,SD,H.265)
Optics:
- Super Starlight illumination
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in motorized lens for remote zoom
Compression:
- Ultra 265, H.264, MJPEG
- Triple streams
- 9:16 corridor mode
Network:
- ONVIF Conformance
Structure:
- Support PoE power supply
- Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC3632ER3-DUPZ-C | |||||||
| Camera | |||||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.7 ~ 13.5 mm, AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.7 | 41.9 | 16.8 | 8.4 | 4.2 | |||
| 13.5 | 309.5 | 8 3.8 | 41.9 | 20.9 | |||
| Angle of view (H) | 121.36° ~ 33.51° | ||||||
| Angle of View (V) | 74.1° ~ 13.2° | ||||||
| Angle of View (O) | 157.8° ~ 41.2° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.0005Lux (F1.2, AGC ON) 0Lux with IR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 30m (98ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps, ; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||
| 9:16 Corridor Format | Supported | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Suppression | Supported | ||||||
