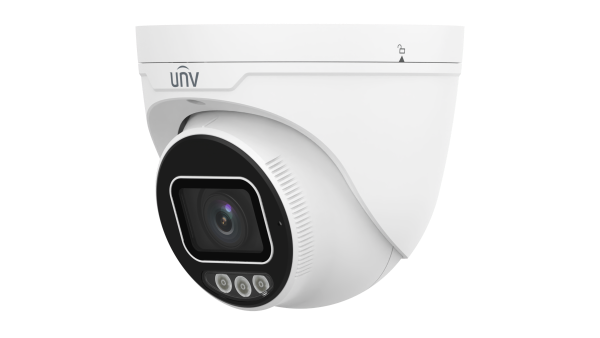

UNV - IPC3634SB-ADZKM-DL-I1 - 4MP Intelligent Dual-light VF Turret Network Camera
Product Overview
The Uniview IPC3634SB-ADZKM-DL-I1 is a 4MP intelligent dual-light varifocal turret network camera with a motorized 2.7–13.5 mm lens. It combines Smart Intrusion Prevention, people counting, 120 dB true WDR, and infrared/warm-light illumination up to 40 m for advanced surveillance across changing scenes.
The camera supports 4MP video at up to 30 fps, triple-stream encoding, microSD storage up to 512 GB, DC 12 V or IEEE 802.3af PoE power, and IP67/IK10 protection.
Key Configuration
Model: IPC3634SB-ADZKM-DL-I1 | Resolution: 4MP, up to 2688 × 1520 at 30 fps | Lens: 2.7–13.5 mm motorized varifocal, F1.2 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T/M | Protection: IP67, IK10
Key Features
- · 4MP 1/2.9-inch CMOS sensor with 2688 × 1520 video at up to 30 fps
- · 2.7–13.5 mm motorized varifocal lens with 107.4° to 29.2° horizontal field of view
- · Dual-light illumination with infrared and warm light up to 40 m each
- · 120 dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
- · Smart Intrusion Prevention with cross-line, intrusion, enter-area, and leave-area detection
- · Target classification and false-alarm filtering for people, vehicles, and non-motor vehicles
- · People-flow counting and crowd-density detection
- · Ultra 265, H.265, H.264, and MJPEG compression with triple streams
- · 9:16 corridor mode, ROI encoding, and microSD edge storage up to 512 GB
- · DC 12 V or IEEE 802.3af PoE power, 4 kV surge protection, IP67, and IK10 protection
Technical Context
The motorized varifocal lens supports wide-area observation and focused long-range coverage from the same camera. Dual-light illumination combines infrared and warm light up to 40 m, while Smart Intrusion Prevention classifies targets to reduce false alarms and people-counting analytics provide occupancy and flow information.
Installation Notes
The metal turret housing supports pan adjustment from 0° to 360°, tilt from 0° to 75°, and rotation from 0° to 360°. It operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, wall, pole, pendant, corner, and cable-gland accessories are available.
| Product Information | |
| Model | IPC3634SB-ADZKM-DL-I1 |
| Product Type | 4MP Intelligent Dual-Light Varifocal Turret Network Camera |
| Image Sensor | 1/2.9" CMOS |
| Camera and Lens | |
| Maximum Resolution | 4MP |
| Lens | 2.7–13.5mm motorized varifocal lens, F1.2 |
| Field of View | Horizontal: 107.4°–29.2° Vertical: 57.2°–17.0° Diagonal: 124.6°–32.5° |
| Minimum Illumination | Color: 0.001 Lux, F1.2, AGC ON 0 Lux with IR enabled |
| Day/Night | IR-cut filter with automatic switch, ICR |
| Shutter | Auto/manual, 1/1 to 1/100000 s |
| WDR | 120dB true WDR |
| Signal-to-Noise Ratio | >52dB |
| Adjustment Angle | Pan: 0°–360° Tilt: 0°–75° Rotate: 0°–360° |
| DORI Distance | |
| Detect | 60.8–303.8m (199.5–996.7ft) |
| Observe | 24.3–121.5m (79.7–398.6ft) |
| Recognize | 12.2–60.8m (40.0–199.5ft) |
| Identify | 6.1–30.4m (20.0–99.7ft) |
| Dual-Light Illumination | |
| Supplemental Light | Infrared and warm light |
| IR Distance | Up to 40m (131.2ft) |
| Warm Light Distance | Up to 40m (131.2ft) |
| IR Wavelength | 850nm |
| Light Control | Automatic/manual |
| Video | |
| Compression | Ultra 265, H.265, H.264 and MJPEG |
| Main Stream | 4MP 2688×1520 up to 30fps 4MP 2560×1440 up to 30fps 3MP 2304×1296 up to 30fps 1080p and 720p up to 30fps |
| Sub Stream | 720p, D1, 640×360, 2CIF and CIF up to 30fps |
| Third Stream | D1, 640×360, 2CIF and CIF up to 30fps |
| Video Bit Rate | 128Kbps–16Mbps |
| Video Features | Triple streams, U-Code, 9:16 corridor mode, up to 8 OSDs, up to 4 privacy-mask areas and ROI support |
| Intelligent Features | |
| Perimeter Protection | Cross-line, intrusion, enter-area and leave-area detection |
| Target Classification | Human, vehicle and non-motor vehicle classification with false-alarm filtering |
| People Analysis | People-flow counting and crowd-density detection |
| Basic Detection | Motion detection, ultra motion detection, tampering alarm and audio detection |
| Image Functions | 2D/3D DNR, Smart IR, HLC, BLC, digital defog, flip and dewarping |
| Storage and Network | |
| Local Storage | MicroSD card up to 512GB |
| Network Storage | ANR and NAS via NFS |
| Network Interface | 1× RJ45 10/100 Base-TX Ethernet port |
| Protocols | IPv4/IPv6, TCP, UDP, DHCP, PPPoE, RTSP, RTP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, SSL/TLS and 802.1x |
| Integration | ONVIF Profile S, Profile G, Profile T and Profile M; API and SDK |
| Users | Up to 32 users with administrator, operator and common-user levels |
| Power and Mechanical | |
| Power Supply | DC 12V ±25% or PoE IEEE 802.3af |
| Power Consumption | Maximum 7.1W |
| Power Connector | Ø5.5mm coaxial power plug |
| Dimensions | Ø129 × 110mm (Ø5.1 × 4.3in) |
| Weight | 0.68kg (1.50lb) |
| Material | Metal |
| Reset Button | Supported |
| Environmental Protection | |
| Protection Rating | IP67 and IK10 |
| Operating Environment | -30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing |
| Storage Environment | -30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing |
| Surge Protection | 4kV |
| Certifications and Accessories | |
| Certifications | CE-EMC, FCC, CE-LVD, UL/CUL, CE-RoHS and WEEE |
| Compatible Accessories | TR-JB07/WM03-F-IN-V2, TR-WM03-B-IN-V2, TR-JB03-H-IN-V2, TR-JB03-J-IN, TR-A01-IN, TR-UP06-C-IN-V2, TR-UC08-C-V2, TR-SE24-IN, TR-SE24-A-IN and TR-CM24-IN |
