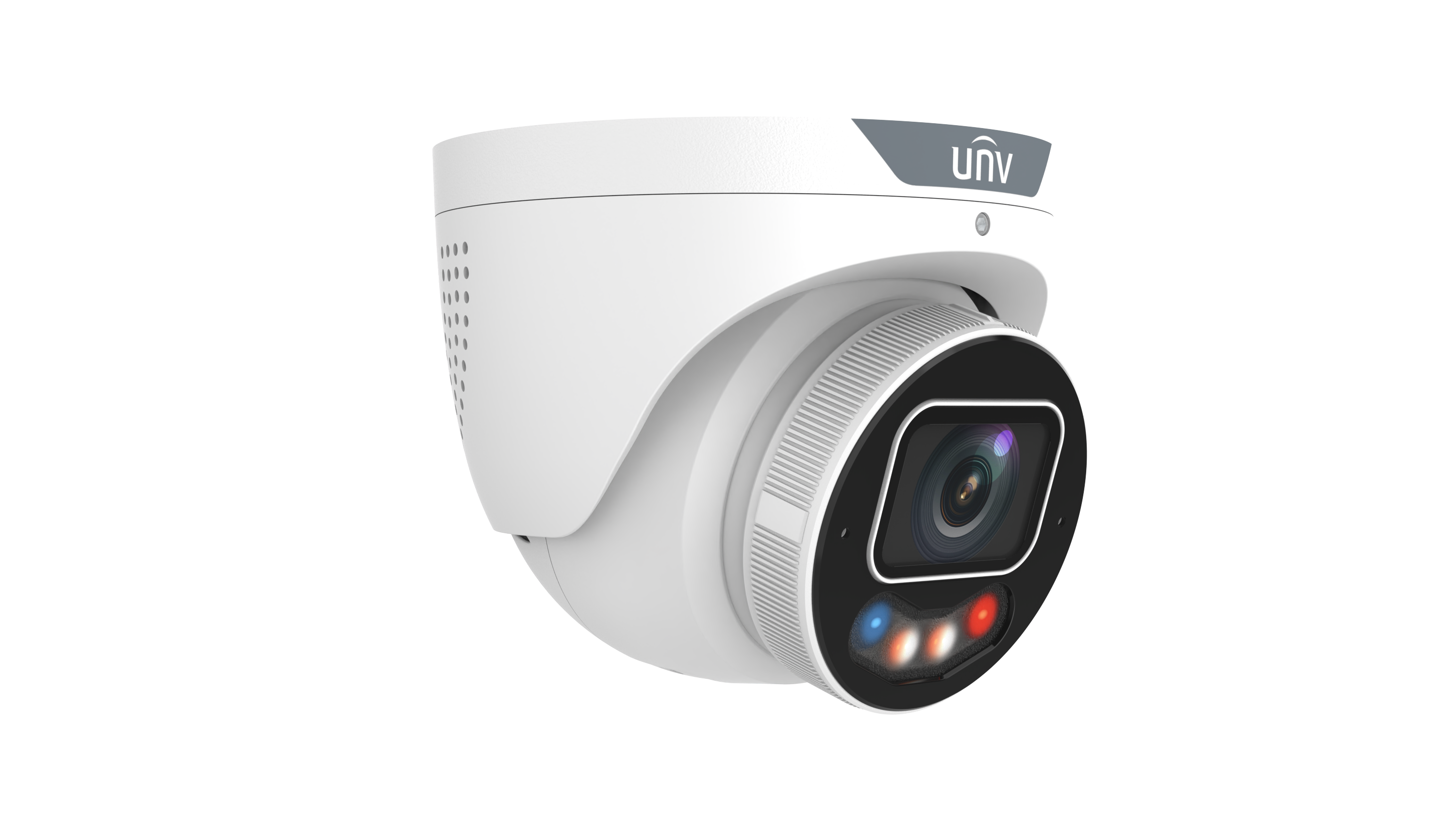

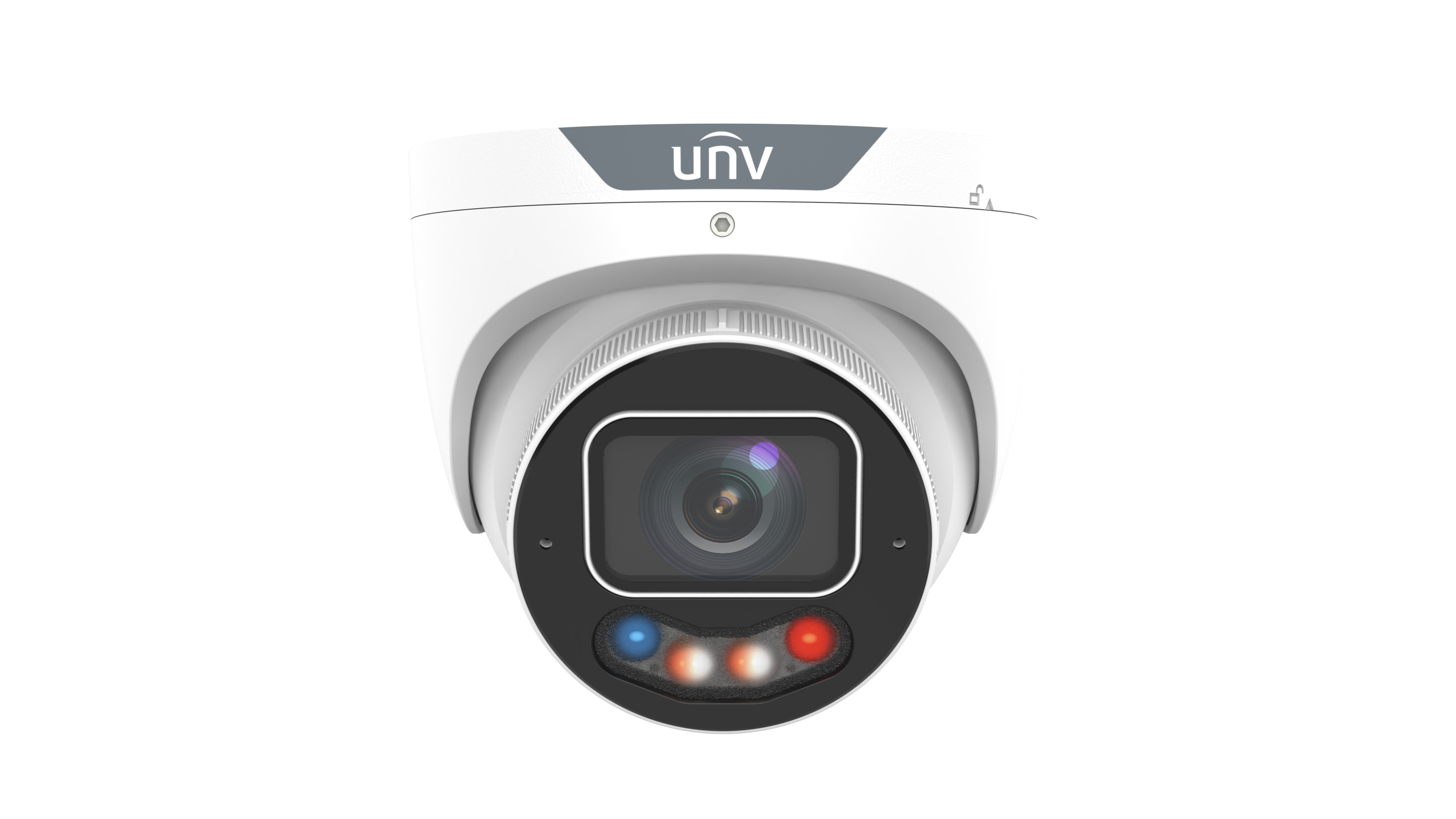

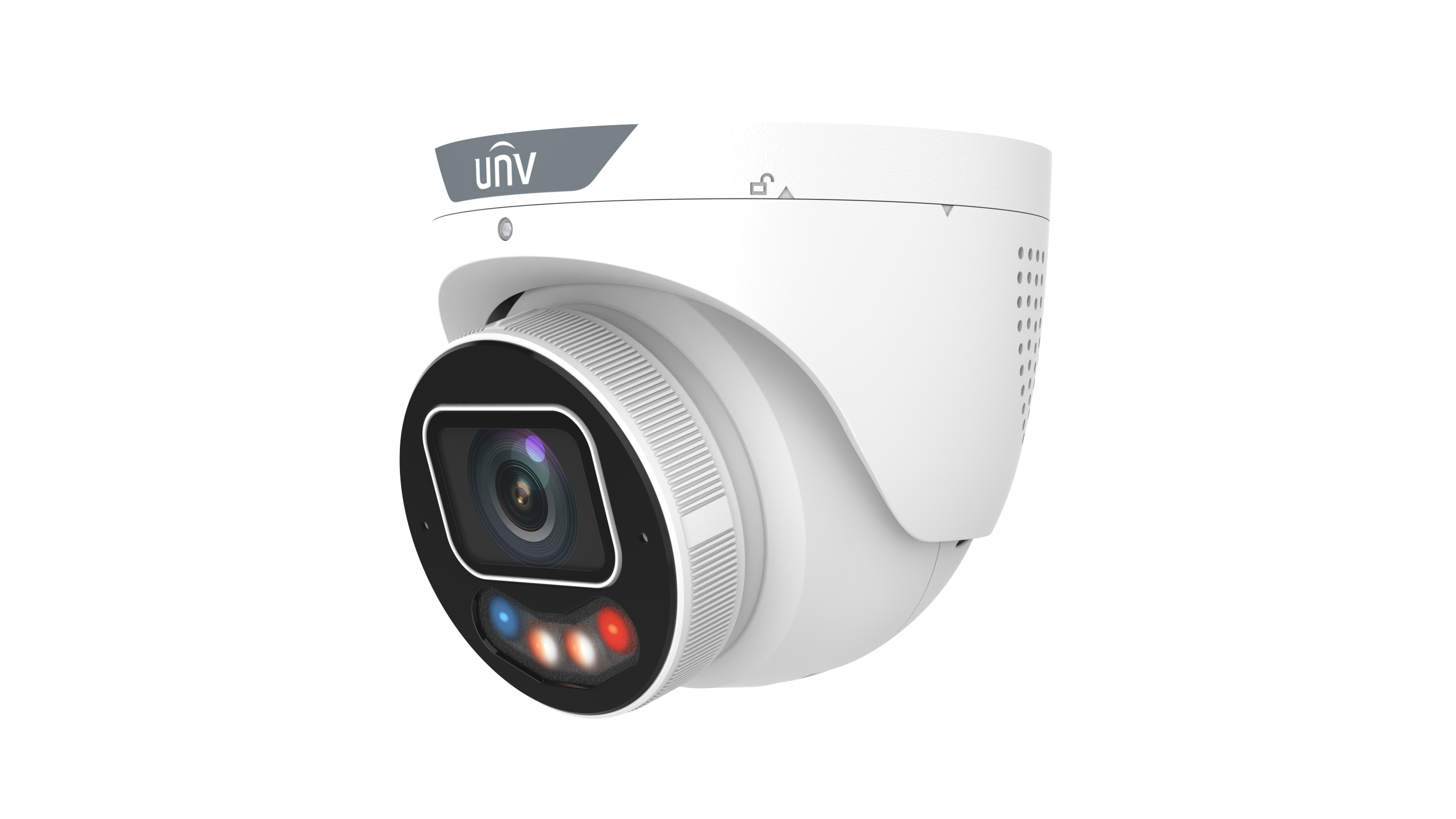

Uniview - IPC3634SE-ADF28KMC-WP-I1N - 4MP Dual-light Eyeball Warning Network Camera
• High quality image with 4 MP, 1/1.8" CMOS sensor
• Features an F1.0 large-aperture lens
• 4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non motor vehicles
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1
• Built-in dual-mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant
• Supports NEMA 4X and IP67 protection
| Camera | |
| Max Resolution / Sensor | 4 MP / 1/1.8" CMOS |
| Min. Illumination (Color) | 0.0003 Lux (F1.0, AGC ON), 0 Lux with light |
| Day/Night / Shutter | IR-cut filter with auto switch (ICR) / Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle (Pan/Tilt/Rotate) | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N / WDR | > 56 dB / 130 dB |
| Lens | |
| Focal Length / Lens Type | 2.8 mm / Fixed |
| Iris Type / Iris | Fixed / F1.0 |
| Field of View (H/V/D) | H: 111.0°, V: 61.4°, D: 133.0° |
| DORI Distance | |
| DORI Distance (Detect) | 43.4 m (142.4 ft.) |
| DORI Distance (Observe) | 17.4 m (57.1 ft.) |
| DORI Distance (Recognize) | 8.7 m (28.5 ft.) |
| DORI Distance (Identify) | 4.3 m (14.1 ft.) |
| Illuminator | |
| Supplemental Light | Dual light (IR and Warm Light) |
| Illumination Distance (IR/Warm) | 30 m (98.4 ft) |
| Control / Wavelength | IR On/Off and Light On/Off Auto/Manual / 850 nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate (Main Stream) | 4 MP (2688 × 1520), max. 30 fps |
| Video Bit Rate / Stream | 128 Kbps to 16 Mbps / Triple streams |
| OSD / Privacy Mask / ROI / U-code | Up to 8 OSDs / Up to 4 areas / Support / Support |
| Intelligent | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (human, vehicle, non-motor vehicle filtering) |
| Counting / Attribute Collection | People flow counting, crowd density monitoring / SIP with color retrieval |
| Basic Events | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| Audio | |
| Compression / Bitrate | G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz) |
| Two-way Audio / Built-in Mic/Speaker | Support / Built-in dual-mic and speaker |
| Storage & Network | |
| Edge Storage / Network Storage | MicroSD, up to 512 GB / ANR, NAS (NFS) |
| Protocols / Integration | (Extensive list including IPv4/6, TCP, UDP, HTTPS) / ONVIF (Profile S, G, T, M), API, SDK |
| Interface | |
| Audio I/O | 1 Input: 35 kΩ, 2 V [p-p], 1 Output: 600 Ω, 2 V [p-p] |
| Alarm I/O / Serial Port | 1/1 / N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| General & Environment | |
| Power / Consumption | DC 12 V±25%, PoE (IEEE 802.3af) / Max. 5.0 W |
| Dimensions (Ø × H) / Weight | Ø128.7 mm × 110.3 mm (Ø5.1" × 4.3" ) / 1.02 kg (2.25 lb) |
| Protection Rating | IP67, **IK10** vandal resistant, **NEMA 4X** |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉) |
| Surge Protection / Reset Button | 4 KV / Support |
| Certification | |
| EMC / Safety / Environment | CE-EMC, FCC / CE-LVD, UL/CUL / CE-RoHS, WEEE |
The IPC3634SE-ADF28KMC-WP-I1N camera uses a 4 MP 1/1.8" CMOS sensor, providing a maximum resolution of 2688 × 1520 at up to 30 frames per second. The optics feature a fixed lens with an F1.0 large-aperture and a focal length of 2.8 mm, offering a wide horizontal field of view of 111.0°. The camera utilizes a Dual Light illumination system Smart IR and Warm Light, with an illumination distance of up to 30 meters. Video compression is supported via Ultra 265, H.265, H.264, and MJPEG, and the camera supports triple video streams.
Image processing features include 130 dB true Wide Dynamic Range, which processes high-contrast lighting to maintain detail in both bright and shadowed areas. 2D/3D Digital Noise Reduction is applied to clean up video artifacts. The ColorHunter with Wise-ISP technology enables 24-hour full-color images, with an extremely low minimum color illumination of only 0.0003 Lux (F1.0). The camera includes advanced Intelligent Intrusion Prevention System, which classifies targets (humans and vehicles) to reduce false alarms. The integrated built-in dual-mic and speaker provide two-way audio and facilitate active deterrence with Red & Blue light and sound alarms. The camera has IP67, IK10, and NEMA 4X protection ratings. The operational temperature range is specified from -40 °C to 60 °C (-40 °F to 140 °F). Power is supplied via DC 12 V or Power over Ethernet, with a maximum power consumption of 5.0 W.
