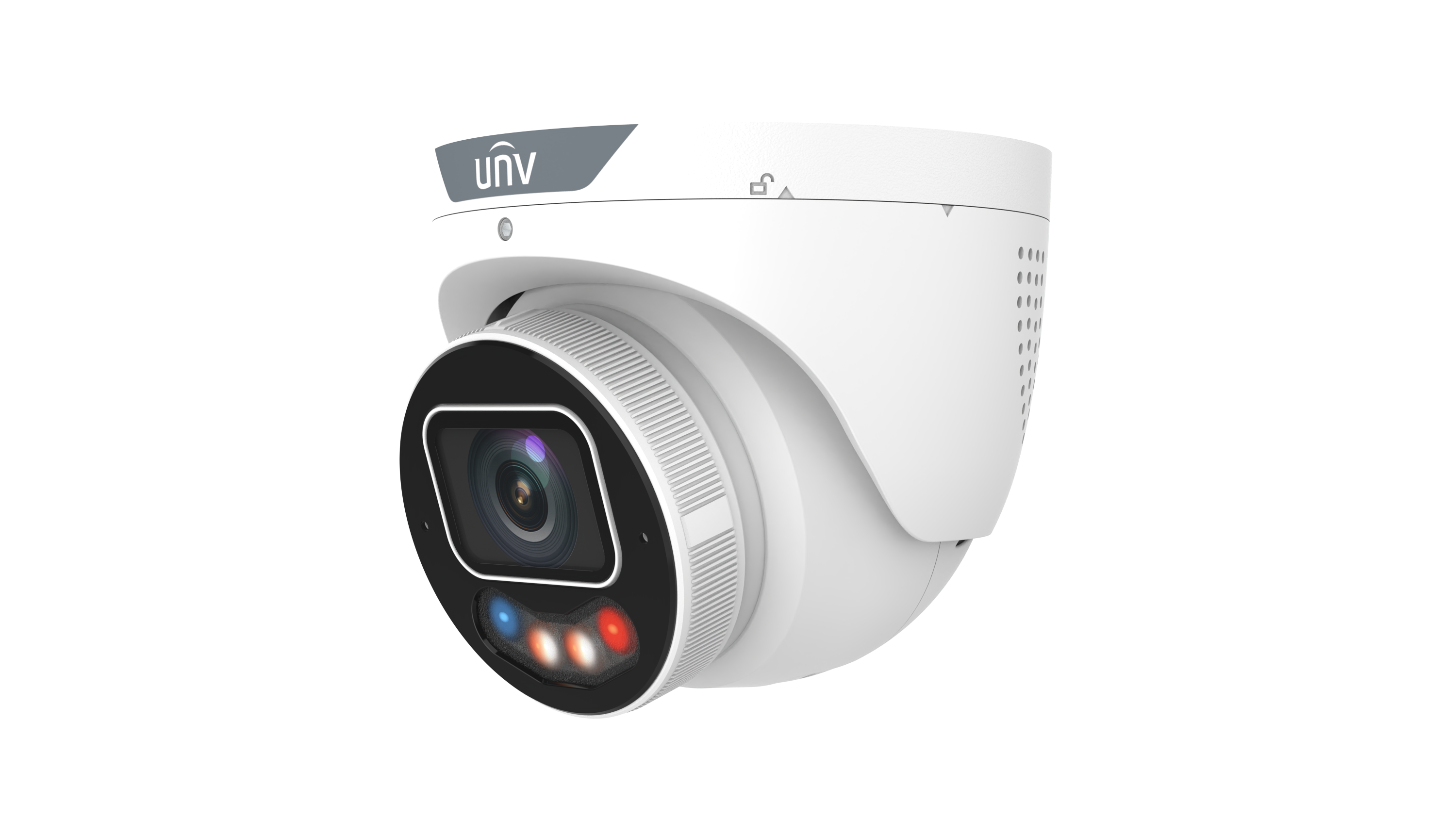

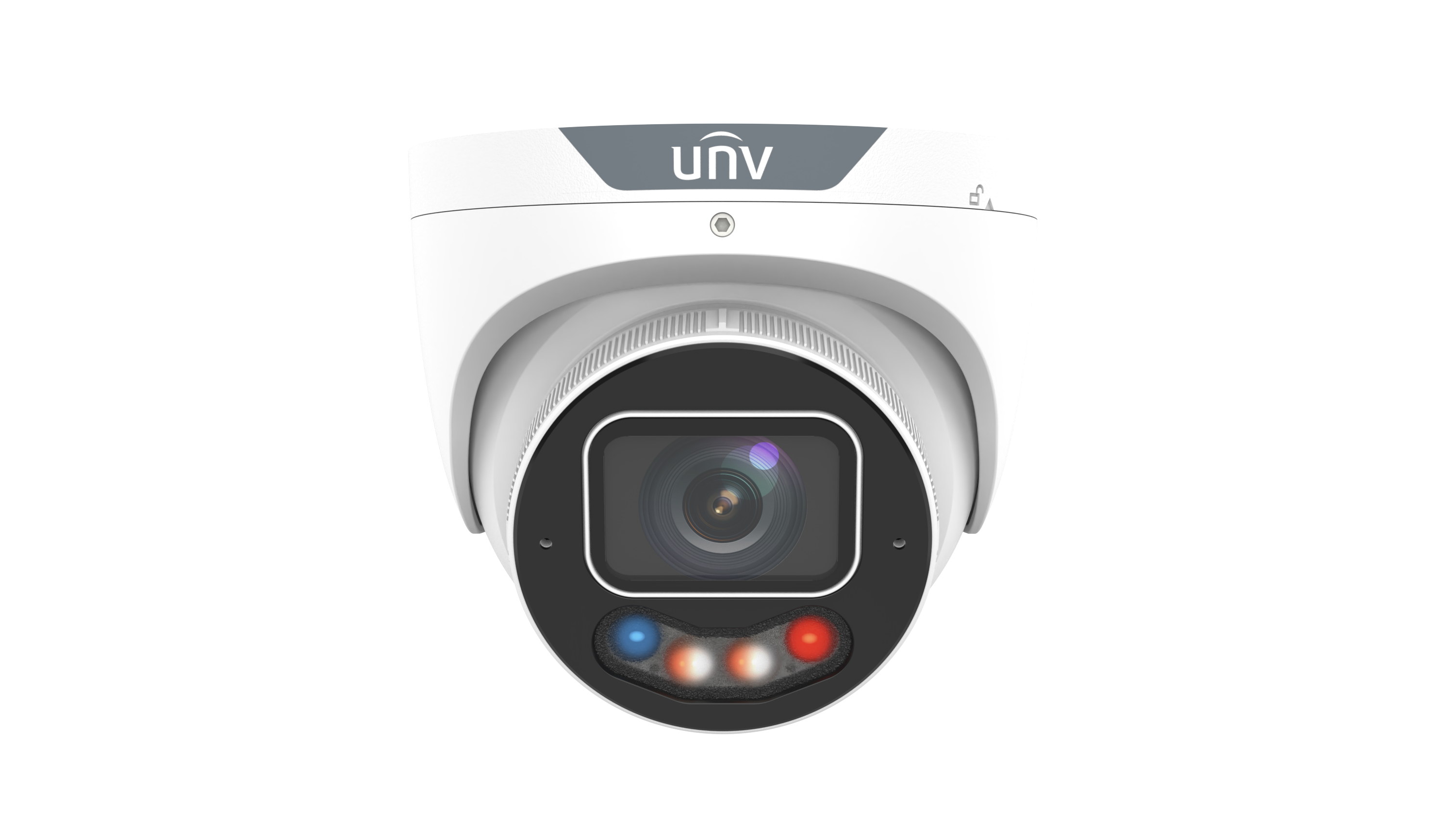

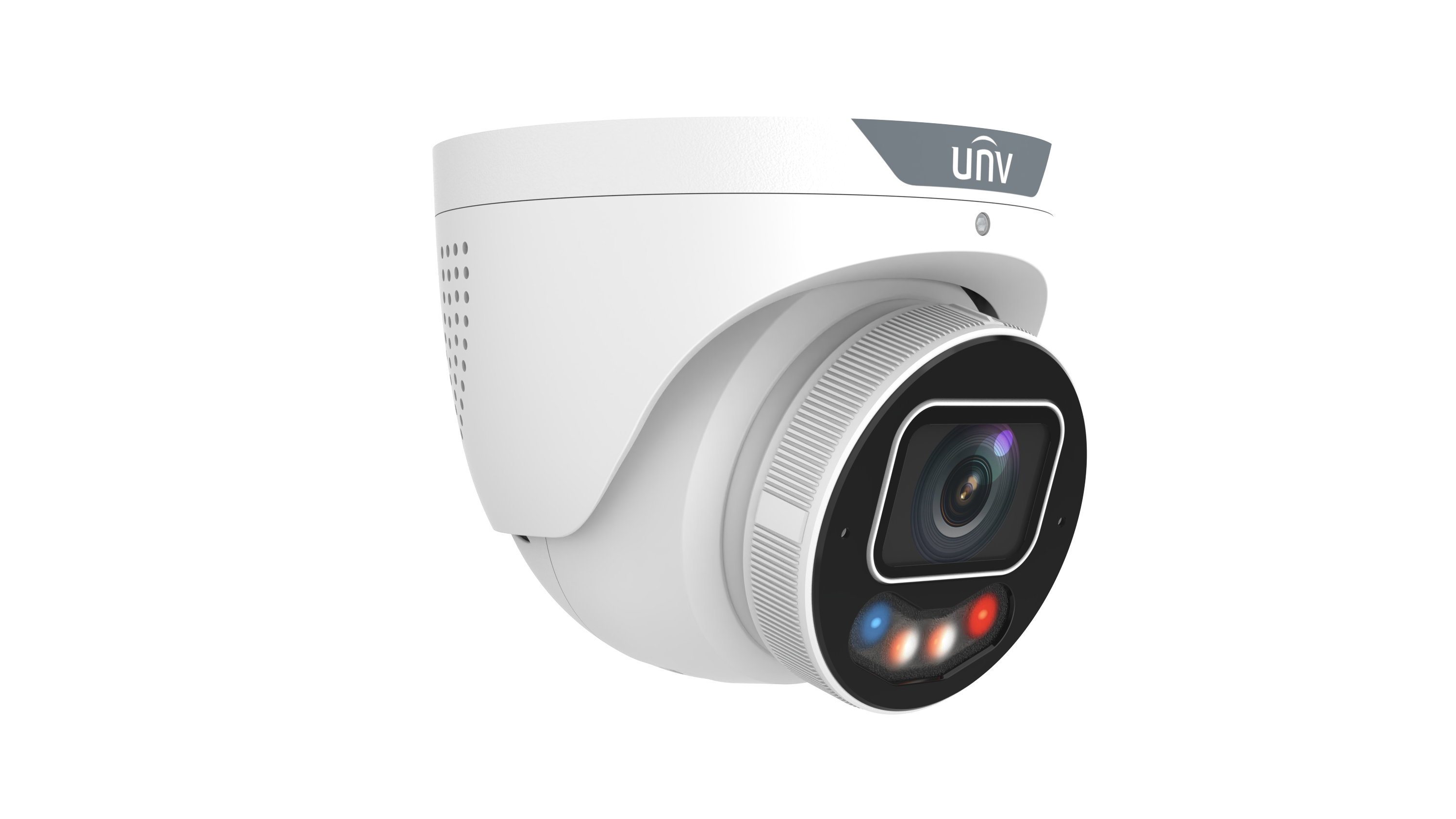

Uniview - IPC3634SE-ADZKMC-WP-I1 - 4MP OwlView Plus Tri-Guard VF Dual-light Turret Network Camera
• High quality image with 4 MP, 1/1.8" CMOS sensor
• Features an F1.2 large-aperture lens
• 4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non motor vehicle
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1, built-in mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant and IP67 protection
| Camera | |
| Max Resolution | 4 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.2, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 78°, Rotate: 0° to 360° |
| S/N | > 56 dB |
| WDR | 130 dB |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Iris Type | Fixed |
| Iris | F1.2 |
| Field of View (H) | 113.5° to 54.6° |
| Field of View (V) | 61.6° to 30.8° |
| Field of View (D) | 131.1° to 62.8° |
| Lens Type | Motorized |
| DORI | |
| DORI Distance (Lens) | 2.8 to 12 mm |
| DORI Distance (Detect) | 43.4 m to 186.2 m (142.4 ft. to 610.9 ft) |
| DORI Distance (Observe) | 17.4 m to 74.5 m (57.1 ft. to 244.4 ft) |
| DORI Distance (Recognize) | 8.7 m to 37.2 m (28.5 ft. to 122.1 ft) |
| DORI Distance (Identify) | 4.3 m to 18.6 m (14.1 ft. to 61.0 ft) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 30 fps 4 MP (2560 × 1440), max. 30 fps 3 MP (2304 × 1296), max. 30 fps 1080P (1920 × 1080), max. 30 fps 720P (1280 × 720), max. 30 fps |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 30 fps 720P (1280 × 720), max. 30 fps D1 (720 × 576), max. 30 fps 640 × 360, max. 30 fps 2CIF (704 × 288), max. 30 fps CIF (352 × 288), max. 30 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps 640 × 360, max. 30 fps 2CIF (704 × 288), max. 30 fps CIF (352 × 288), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Auto Scene Match (ASM) | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Statistical Analysis | N/A |
| People Counting | Support people flow counting and crowd density monitoring |
| Attribute Collection | SIP with color retrieval |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.2, DTLS 1.2, Certificate Management, Brute Force Protection, Strong Password, OTP (One Time Programmable), Port Security, MAC Filtering, IP Filtering, Digital Watermarking, Configuration Encrypted Storage, Configuration Encrypted Export, HTTPS, Secure Boot, Firmware Encryption, Gateway ARP Binding, RTP/RTSP over HTTPS, Audit logs, Protected Shell, Session Timeout, Signed Firmware, 802.1X Authentication (EAP-TLS, EAP-MD5), WSSE and Digest Authentication for ONVIF, Password protection, Digest Authentication for HTTP, Digest SHA256 Authentication for HTTP, Digest SHA256 Authentication for ONVIF, Basic and Digest Authentication for RTSP |
| Client | EZStation, APP |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Built-in dual-mic |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) NEMA 4X |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 5.0 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H) |
| Weight | 0.85 kg (1.87 lb) |
| Material | Metal |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
The IPC3634SE-ADZKMC-WP-I1 camera uses a 4 MP 1/1.8" CMOS sensor, providing a maximum resolution of 2688 × 1520 at up to 30 frames per second. The optics feature a Motorized Vari-focal lens with a focal length ranging from 2.8 to 12 mm and an F1.2 large-aperture. The horizontal field of view is adjustable from 113.5° to 54.6°. The camera utilizes a Dual Light illumination system, Smart IR and Warm Light, with an illumination distance of up to 30 meters for both. Video compression is supported via Ultra 265, H.265, H.264, and MJPEG, and the camera supports triple video streams.
Image processing features include 130 dB true Wide Dynamic Range, which processes high-contrast lighting to maintain detail in both bright and shadowed areas. 2D/3D Digital Noise Reduction is applied to clean up video artifacts. The ColorHunter with Wise-ISP technology enables 24-hour full-color images, with an extremely low minimum color illumination of only 0.0005 Lux. The camera includes an advanced Intelligent Intrusion Prevention System, which classifies targets to reduce false alarms, along with features like People Counting and Auto Scene Match. The integrated built-in dual-mic and speaker provide two-way audio and facilitate active deterrence with light and sound alarms, and it features dedicated Alarm I/O and Audio I/O ports. The camera has IP67 for dust and water, IK10 vandalism protection ratings, and is NEMA 4X compliant. The operational temperature range is specified from -40 °C to 60 °C (-40 °F to 140 °F). Power is supplied via DC 12 V or Power over Ethernet, with a maximum power consumption of 5.0 W.
