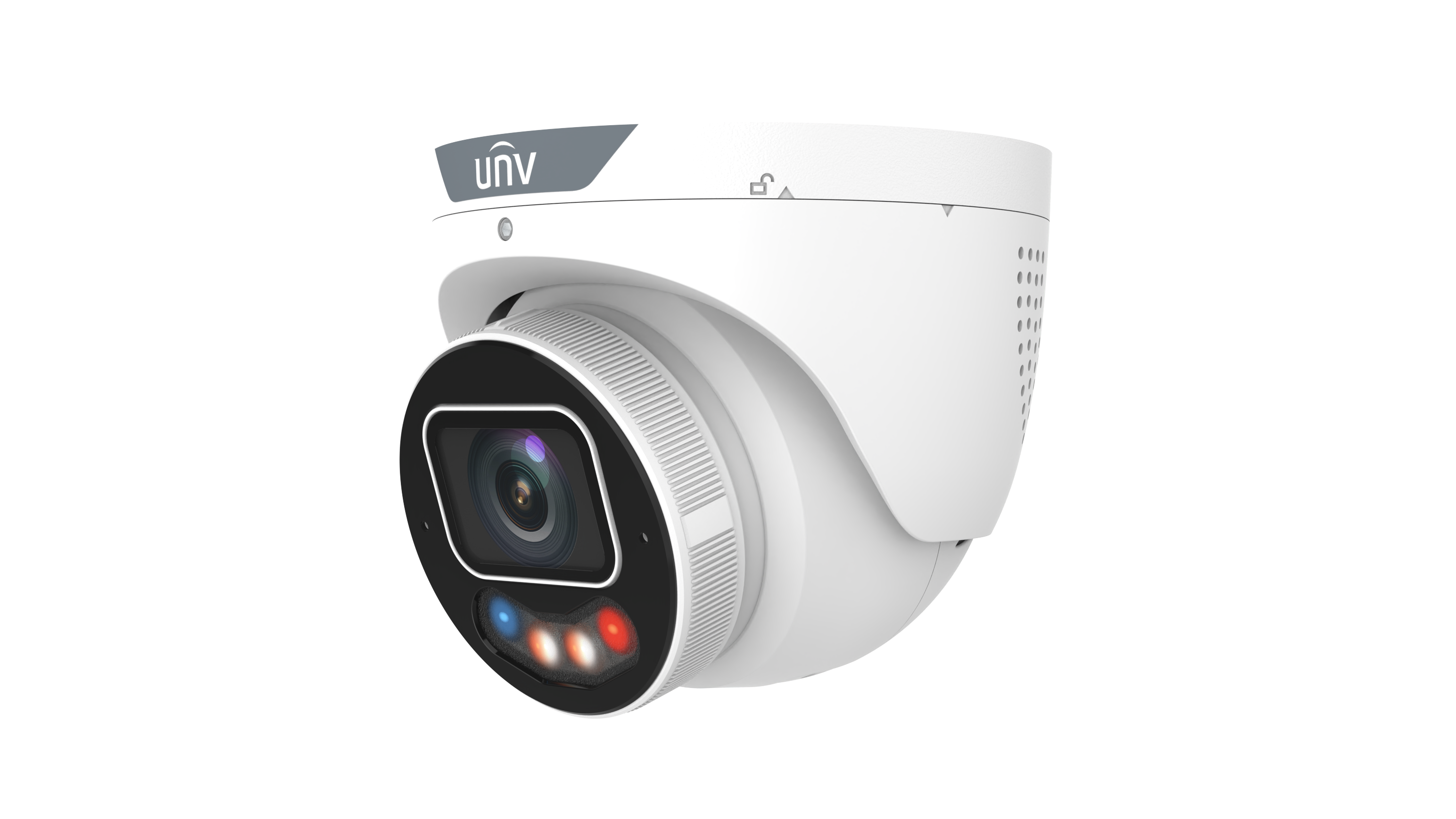

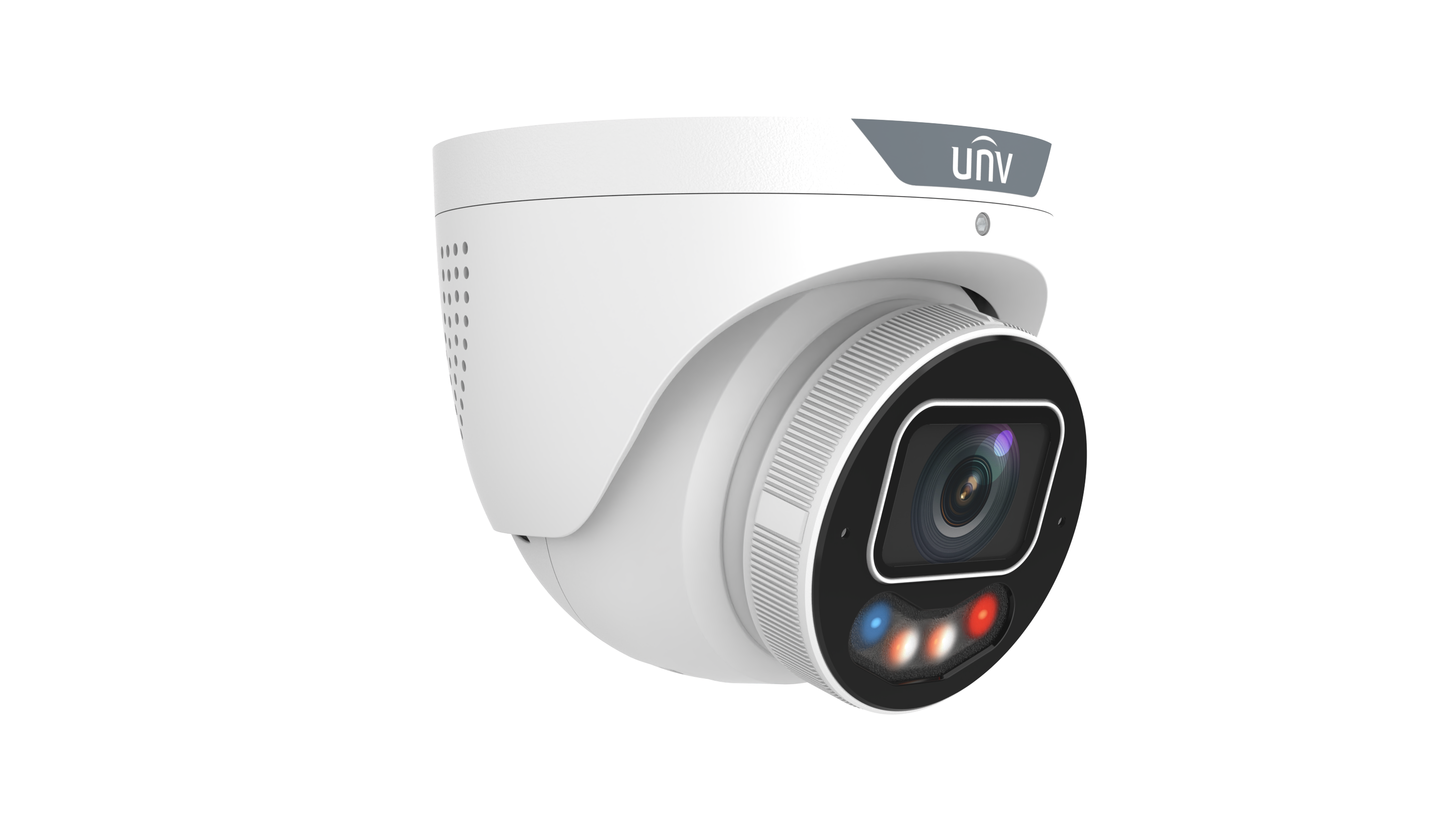

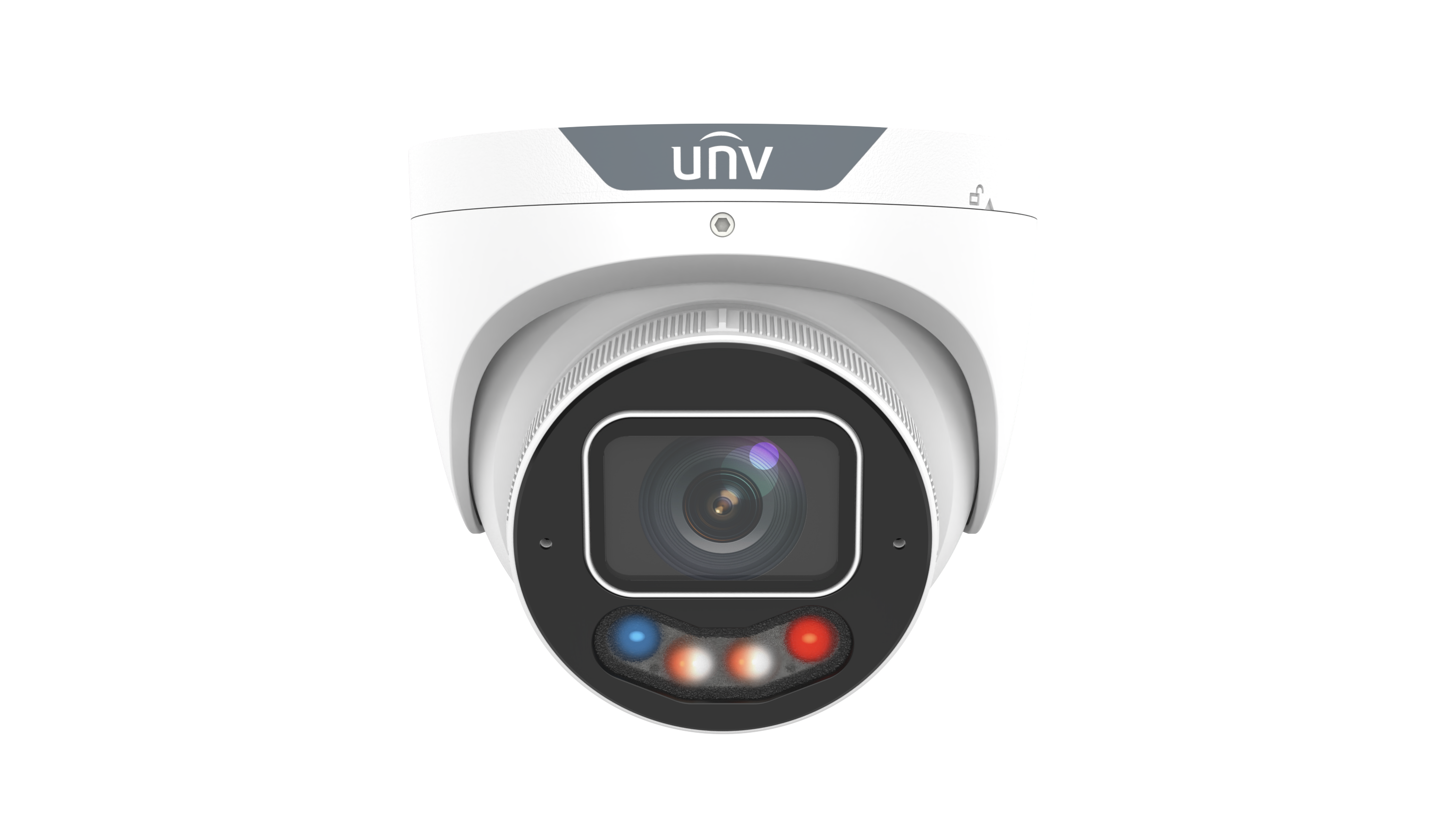

Uniview - IPC3634SE-ADZKMC-WP-I1N - 4MP OwlView Plus Tri-Guard VF Dual-light Turret Network Camera
• High quality image with 4MP, 1/1.8"CMOS sensor
• Features an F1.2 large-aperture lens
• 4MP (2688 × 1520)@30/25 (default) fps; 4MP (2560 × 1440)@30/25 fps; 3MP (2304 × 1296)@30/25 fps; 2MP (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• Colorhunter with Wise ISP technology ensures 24 hour full color images
• Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Smart intrusion prevention with Color retrieval
• Auto Scene Match (ASM)
• 130 dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Alarm: 1 in/1 out, Audio: 1 in/1 out, Built in Mic and Speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• White Light, up to 30 m (98.4 ft) warm light distance
• Supports up to 512 GB Micro SD Card
• IK10 vandal resistant and IP67 protection
| Image Quality & Resolution | |
| Resolution | 4MP High quality imaging |
| Sensor | 1/1.8" CMOS sensor |
| Lens Aperture | F1.2 large-aperture lens |
| Frame Rates | 4MP (2688 × 1520)@30/25 fps (default) 4MP (2560 × 1440)@30/25 fps 3MP (2304 × 1296)@30/25 fps 2MP (1920 × 1080)@30/25 fps |
| Video Technology | |
| Compression | Ultra 265 H.265 H.264 MJPEG |
| Color Technology | Colorhunter with Wise ISP technology 24 hour full color imaging |
| WDR Technology | 130 dB True WDR - Enables clear images in strong light scenes |
| Display Mode | Corridor Mode Support 9:16 aspect ratio |
| Intelligent Features | |
| Perimeter Protection | Cross line detection Intrusion detection Enter area detection Leave area detection |
| Smart Intrusion Prevention | Target classification to reduce false alarms from leaves, birds, and lights Accurately focuses on: Human, Motor Vehicle, Non-Motor Vehicle Smart intrusion prevention with Color retrieval |
| People Analytics | Intelligent People Flow Counting Crowd Density Monitoring |
| Auto Scene Match (ASM) | Supported |
| Audio & Input/Output | |
| Audio Input | Built-in dual microphone |
| Audio Output | Built-in speaker |
| Alarm I/O | 1 input / 1 output |
| Audio I/O | 1 input / 1 output |
| Illumination | |
| Smart IR | Up to 30 m (98.4 ft) IR distance |
| White Light | Up to 30 m (98.4 ft) warm light distance |
| Storage | |
| Edge Storage | Supports up to 512 GB Micro SD Card |
| Protection & Durability | |
| Vandal Resistance | IK10 Vandal resistant rating |
| Weather Protection | IP67 Protection against dust and water immersion |
The IPC3634SE-ADZKMC-WP-I1N camera uses a 4 MP 1/1.8" CMOS sensor, providing a maximum resolution of 2688 × 1520 at up to 30 frames per second. The optics feature a Motorized Vari-focal lens with a focal length ranging from 2.8 to 12 mm and an F1.2 large-aperture. The horizontal field of view is adjustable from 113.5° to 54.6°. The camera utilizes a Dual Light illumination system, Smart IR and Warm Light, with an illumination distance of up to 30 meters for both. Video compression is supported via Ultra 265, H.265, H.264, and MJPEG, and the camera supports triple video streams.
Image processing features include 130 dB true Wide Dynamic Range, which processes high-contrast lighting to maintain detail in both bright and shadowed areas. 2D/3D Digital Noise Reduction is applied to clean up video artifacts. The ColorHunter with Wise-ISP technology enables 24-hour full-color images, with an extremely low minimum color illumination of only 0.0005 Lux. The camera includes an advanced Intelligent Intrusion Prevention System, which classifies targets (human, motor vehicle, non-motor vehicle) to reduce false alarms, along with features like People Counting and Auto Scene Match. The integrated built-in dual-mic and speaker provide two-way audio and facilitate active deterrence with light and sound alarms, and it features dedicated Alarm I/O and Audio I/O ports. The camera has IP67 for dust and water, IK10 vandalism protection ratings, and supports up to 512 GB Micro SD Card storage. The operational temperature range is specified from -40 °C to 60 °C (-40 °F to 140 °F). Power is supplied via DC 12 V or Power over Ethernet, with a maximum power consumption of 5.0 W.
