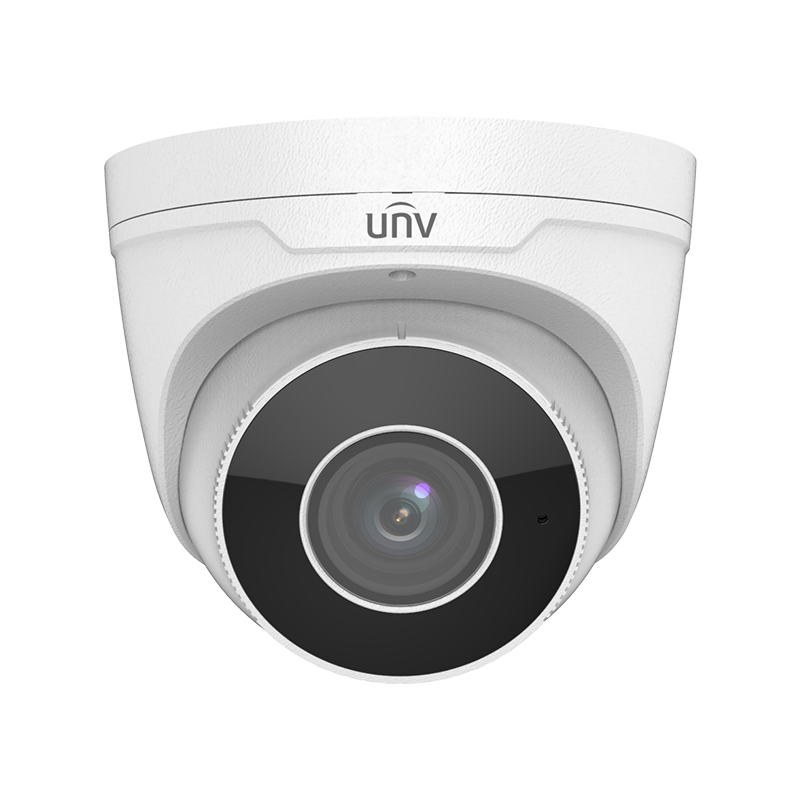

IPC3635ER3-DUPZ - EOL Replacement: IPC3635SB-ADZK-I0
UNV 5MP Starlight Eyeball Network Motorized Vari-focal Dome Camera(WDR,SimPlified Cable,PoE,RJ45,Mic,2.7-13.5mm,30m IR,SD,H.265)
Optics
Starlight illumination
Day/night functionality
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
Smart IR, up to 30m (98ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Built-in motorized lens for remote zoom
Compression
Ultra 265, H.264, MJPEG
Triple streams
9:16 corridor mode
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
| IPC3635ER3-DUPZ | ||||||
| Camera | |||||||
| Sensor | 1/2.7", progressive scan, 5.0 megapixel, CMOS | ||||||
| Lens | 2.7~13.5 mm, AF automatic focusing and motorized zoom lens | ||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
| 2.7mm | 60.8 | 24.3 | 12.2 | 6.1 | |||
| 13.5mm | 303.8 | 121.5 | 60.8 | 30.4 | |||
| Angle of view(H) | 93.38° ~ 28.56° | ||||||
| Angle of View (V) | 88°~ 16.4° | ||||||
| Angle of View (O) | 121.4°~33.7° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, shutter time: 1~1/100000 s | ||||||
Minimum Illumination | Colour: 0.002 Lux (F1.2, AGC ON) 0 Lux with IR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
Frame Rate | Main Stream: 5MP(2592 x 1944): Max. 20 fps, 5MP(2592 x 1944): Max. 25 fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps, 3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max. 30 fps; Sub Stream:2MP(1920 x 1080): Max. 30 fps; Third Stream: D1(720 x 576): Max.3 0 fps; | ||||||
| 9:16 Corridor Format | Supported | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection、Audio detection |
| Intelligent Identification | Defocus, Scene Change |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G),API |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| General | |
Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 8.16W | |
| Dimensions (Ø x H) | Φ129 x 110 mm (Ø5.08” x 4.3”) |
| Weight | 0.67 kg (1.48lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity：10%~90% RH(non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | Supported |
