UNV - IPC3636SB-ADZKM-DL-I1 - 6MP Intelligent Dual-light VF Turret Network Camera
Product Overview

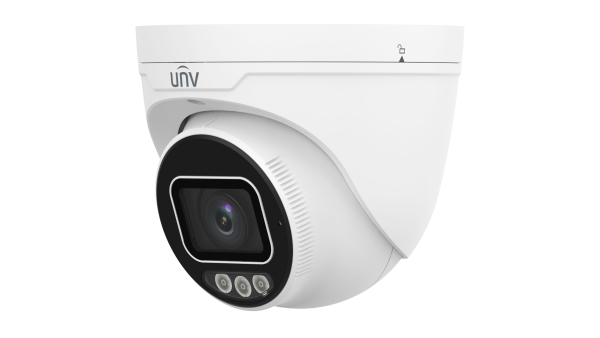

The Uniview IPC3636SB-ADZKM-DL-I1 is a 6MP intelligent dual-light variable-focal turret network camera with a 1/2.5-inch CMOS sensor and motorized 2.7–13.5mm lens. It combines smart intrusion prevention, people-flow analytics, 120dB true WDR, and IR/warm-light illumination for reliable surveillance in changing lighting conditions.
Designed for demanding outdoor installations, the camera features IP67 weather protection, IK10 vandal resistance, PoE support, and operation from -30°C to 60°C.
Key Configuration
Model: IPC3636SB-ADZKM-DL-I1 | Resolution: 6MP, up to 3288 × 1860 at 25fps | Lens: Motorized 2.7–13.5mm, F1.2 | Connectivity: RJ45 10/100M Ethernet, IEEE 802.3af PoE, microSD up to 512GB | Protection: IP67, IK10
Key Features
- · 6MP resolution with 1/2.5-inch CMOS sensor
- · Motorized 2.7–13.5mm variable-focal lens with 110.0°–34.6° horizontal field of view
- · Dual-light illumination with 40m IR and 40m warm-light distance
- · Smart intrusion prevention with cross-line, intrusion, enter-area, and leave-area detection
- · Human, vehicle, and non-motor vehicle classification for false-alarm filtering
- · People-flow counting and crowd-density monitoring
- · 120dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
- · Ultra 265, H.265, H.264, and MJPEG with triple-stream encoding and ROI support
- · 9:16 corridor mode and digital dewarping support
- · Built-in speaker, microSD storage up to 512GB, and ONVIF Profile S, G, T, and M support
Technical Context
The camera uses intelligent target classification to distinguish people, vehicles, and non-motor vehicles before generating intrusion alarms, reducing false notifications caused by environmental movement. Dual-light operation combines 850nm infrared illumination for discreet night monitoring with warm light for color video when additional scene detail is required.
Installation Notes
Install using DC 12V ±25% or IEEE 802.3af PoE. The metal turret housing supports 0°–360° pan, 0°–75° tilt, and 0°–360° rotation. The camera measures Ø129 × 110mm, weighs 0.68kg, and is suitable for outdoor environments with up to 95% non-condensing humidity. Optional junction boxes, wall mounts, pole mounts, and pendant brackets are available for supported installations.
| Product Information | |
| Model | IPC3636SB-ADZKM-DL-I1 |
| Product Type | 6MP Intelligent Dual-Light Varifocal Turret Network Camera |
| Image Sensor | 1/2.5" CMOS |
| Camera and Lens | |
| Maximum Resolution | 6MP |
| Lens | 2.7–13.5mm motorized varifocal lens, F1.2 |
| Field of View | Horizontal: 110.0°–34.6° Vertical: 58.6°–19.6° Diagonal: 132.0°–39.8° |
| Minimum Illumination | Color: 0.001 Lux, F1.2, AGC ON 0 Lux with IR enabled |
| Day/Night | IR-cut filter with automatic switch, ICR |
| Shutter | Auto/manual, 1/1 to 1/100000 s |
| WDR | 120dB true WDR |
| Signal-to-Noise Ratio | >52dB |
| Adjustment Angle | Pan: 0°–360° Tilt: 0°–75° Rotate: 0°–360° |
| DORI Distance | |
| Detect | 60.8–303.8m (199.5–996.7ft) |
| Observe | 24.3–121.5m (79.7–398.6ft) |
| Recognize | 12.2–60.8m (40.0–199.5ft) |
| Identify | 6.1–30.4m (20.0–99.7ft) |
| Dual-Light Illumination | |
| Supplemental Light | Infrared and warm light |
| IR Distance | Up to 40m (131.2ft) |
| Warm Light Distance | Up to 40m (131.2ft) |
| IR Wavelength | 850nm |
| Light Control | Automatic/manual |
| Video | |
| Compression | Ultra 265, H.265, H.264 and MJPEG |
| Main Stream | 6MP 3288×1860 up to 25fps 6MP 3200×1800 up to 25fps 4MP 2560×1440 up to 30fps 3MP 2304×1296 up to 30fps 1080p and 720p up to 30fps |
| Sub Stream | 720p, D1, 640×360, 2CIF and CIF up to 30fps |
| Third Stream | D1, 640×360, 2CIF and CIF up to 30fps |
| Video Bit Rate | 128Kbps–16Mbps |
| Video Features | Triple streams, U-Code, 9:16 corridor mode, up to 8 OSDs, up to 4 privacy-mask areas and ROI support |
| Intelligent Features | |
| Perimeter Protection | Cross-line, intrusion, enter-area and leave-area detection |
| Target Classification | Human, vehicle and non-motor vehicle classification with false-alarm filtering |
| People Analysis | People-flow counting and crowd-density detection |
| Basic Detection | Motion detection, ultra motion detection, tampering alarm and audio detection |
| Image Functions | 2D/3D DNR, Smart IR, HLC, BLC, digital defog, flip and dewarping |
| Storage and Network | |
| Local Storage | MicroSD card up to 512GB |
| Network Storage | ANR and NAS via NFS |
| Network Interface | 1× RJ45 10/100 Base-TX Ethernet port |
| Protocols | IPv4/IPv6, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, SSL/TLS and 802.1x |
| Integration | ONVIF Profile S, Profile G, Profile T and Profile M; API and SDK |
| Users | Up to 32 users with administrator, operator and common-user levels |
| Power and Mechanical | |
| Power Supply | DC 12V ±25% or PoE IEEE 802.3af |
| Power Consumption | Maximum 7.0W |
| Power Connector | Ø5.5mm coaxial power plug |
| Dimensions | Ø129 × 110mm (Ø5.1 × 4.3in) |
| Weight | 0.68kg (1.50lb) |
| Material | Metal |
| Reset Button | Supported |
| Environmental Protection | |
| Protection Rating | IP67 and IK10 |
| Operating Environment | -30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing |
| Storage Environment | -30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing |
| Surge Protection | 4kV |
| Certifications and Accessories | |
| Certifications | CE-EMC, FCC, CE-LVD, UL/CUL, CE-RoHS and WEEE |
| Compatible Accessories | TR-JB07/WM03-F-IN-V2, TR-WM03-B-IN-V2, TR-JB03-H-IN-V2, TR-JB03-J-IN, TR-A01-IN, TR-UP06-C-IN-V2, TR-UC08-C-V2, TR-SE24-IN, TR-SE24-A-IN and TR-CM24-IN |
