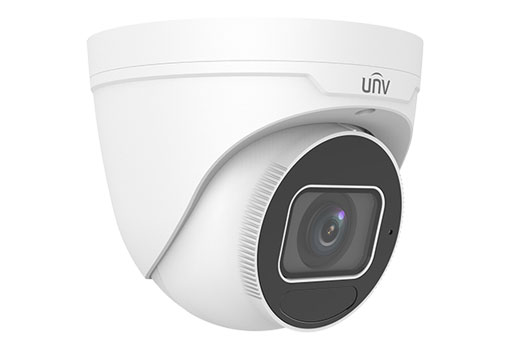

UNV - IPC3638SB-ADZK-I0 - 8MP Eyeball Network Motorized Vari-focal Dome Camera, 2.8-12mm
Product Overview
Uniview IPC3638SB-ADZK-I0 is an 8MP HD Intelligent LightHunter IR VF eyeball network camera with a 1/2.8" progressive scan CMOS sensor and 2.8–12mm motorized zoom lens with auto-focus. It delivers 8MP (3840×2160) at 20 fps and supports Ultra 265, H.265, H.264, and MJPEG compression. The camera provides 120 dB true WDR, LightHunter technology, Smart IR up to 40 meters, built-in microphone, and intelligent perimeter protection with target classification.
Key Configuration
- • 8MP maximum resolution (3840×2160) at 20 fps; 5MP (3072×1728) at up to 30 fps
- • 2.8–12mm motorized zoom lens with auto-focus; horizontal FOV: 107.4° to 29.2°
- • IR range: up to 40 m (131 ft) at 850 nm wavelength
- • Triple video streams (main, sub, third) with ROI up to 8 areas
- • Video bit rate: 128 Kbps to 16 Mbps
Key Features
• Minimum illumination: 0.003 Lux color (F1.6, AGC ON), 0 Lux with IR; day/night ICR filter
• 120 dB true WDR; LightHunter technology; digital defog; 2D/3D DNR
• Smart intrusion prevention with false alarm filtering: cross line, intrusion, enter area, leave area detection; target classification for human, motor vehicle, non-motor vehicle
• People flow counting and crowd density monitoring
• Built-in microphone; G.711 audio compression with suppression
• ONVIF Profiles S, G, T; API integration; edge storage via microSD up to 256GB; ANR network storage
Technical Context
DORI distances vary with zoom: at 2.8mm – detect 86.9m, observe 34.8m, recognize 17.4m, identify 8.7m; at 12mm – detect 372.4m, observe 149.0m, recognize 74.5m, identify 37.2m. Main stream supports up to 8MP at 20 fps; sub stream supports up to 1080P at 30 fps; third stream supports up to D1 at 30 fps. OSD up to 8 overlays; privacy mask up to 4 areas; motion detection up to 4 areas. Dewarping supported. Supports 9:16 Corridor Mode.
Installation Notes
Dimensions (Ø × H): Φ129 × 110 mm (Φ5.1" × 4.3"); net weight: 0.69 kg (1.52 lb). Metal construction. Operating temperature: -30°C to 60°C (-22°F to 140°F), humidity ≤95% RH non-condensing. Ingress protection: IP67; vandal resistance: IK10. Power: DC 12V ±25% or PoE (IEEE 802.3af); max power consumption 9.0W. Surge protection: 6KV. Reset button supported. 3-axis adjustment: pan 0°–360°, tilt 0°–75°, rotate 0°–360°.
| IPC3638SB-ADZK-I0 | |||||||
| Camera | |||||||
| Sensor | 1/2.8", 8.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 86.9 | 34.8 | 17.4 | 8.7 | |||
| 12 | 372.4 | 149.0 | 74.5 | 37.2 | |||
| Angle of view (H) | 107.4°~ 29.2° | ||||||
| Angle of View (V) | 54.2°~ 16.3° | ||||||
| Angle of View (O) | 111.0°~33.1° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| S/N | >56dB | ||||||
| IR Range | Up to 40m (131ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | Supported | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,SNMP | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Client | EZStation EZView EZLive | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
| Interface | |||||||
| Built-in Mic | Supported | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Certifications | |||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 9.0W | |||||||
| Dimensions (Ø x H) | Φ129 x 110mm (Ø5.1” x 4.3”) | ||||||
| Net Weight | 0.69kg (1.52lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 6KV | ||||||
| Ingress Protection | IP67 | ||||||
| Vandal Resistant | IK10 | ||||||
| Reset Button | Supported | ||||||
