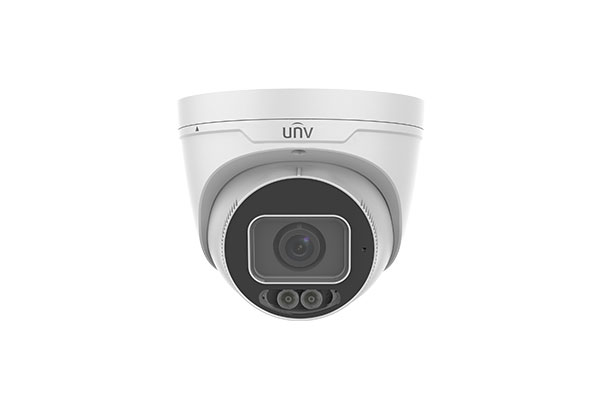

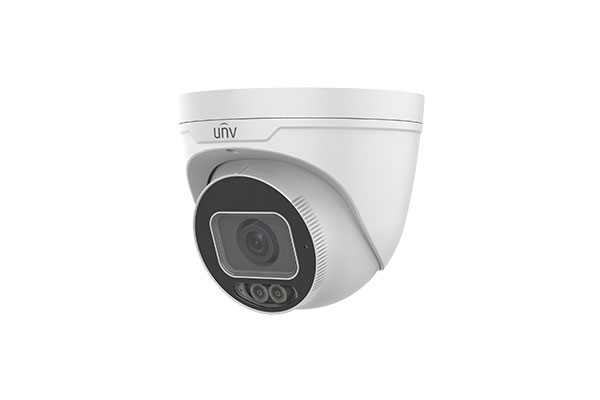

Uniview - IPC3638SE-ADF28K-WL-I0 - 8MP White Light Turret Camera, 2.8mm
Part number:
IPC3638SE-ADF28K-WL-I0
Price:
UNV 8MP White Light Turret, 2.8mm
Features:
- High quality image with 8MP, 1/1.8"CMOS sensor
- 8MP (3840*2160)@ 30(AI off)/25fps; 5.3MP (3072*1728)@ 30/25fps; 3.6MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps; 720P (1280*720), Max 30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Colorhunter technology ensures 24-hour full-color images
- F1.0 Super aperture
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Supports 256 G micro SD card
- IK10 vandal resistant and IP67 protection
| IPC3638SE-ADF28K-WL-I0 | |||
| Camera | |||
| Sensor | 1/1.8", 8.0 megapixel, progressive scan, CMOS | ||
| Minimum Illumination | Colour: 0.0005 lux (F1.0, AGC ON) | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 72° | |
| WDR | 120dB | ||
| S/N | >56dB | ||
| Lens | |||
| Lens | 2.8mm@F1.0 | ||
| Iris | Fixed | ||
| Field of View (H) | 110.15° | ||
| Field of View (V) | 59.06° | ||
| Field of View (D) | 143.19° | ||
| DORI | |||
| DORI Distance | Lens (mm) | Detect (m) | |
| 2.8 | 63.0 | ||
| 4.0 | 90.0 | ||
| Illuminator | |||
| LED Distance | Up to 30m (98ft) | ||
| LEDs Number | 2 | ||
| LED On/Off Control | Auto/Manual | ||
| Video | |||
| Video Compression | Ultra265, H.265, H.264, MJPEG | ||
| H.264 code profile | Baseline profile, Main profile, High profile | ||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 30fps;5.3MP (3072*1728), Max 30fps; 3.6MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||
| Video Bit Rate | 128 Kbps~16 Mbps | ||
| U-code | Support | ||
| OSD | Up to 8 OSDs | ||
| Privacy Mask | Up to 4 areas | ||
| ROI | Up to 8 areas | ||
| Video Stream | Triple streams | ||
| Image | |||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||
| Digital Noise Reduction | 2D/3D DNR | ||
| Smart Illumination | Support | ||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||
| Dewarping | N/A | ||
| HLC | Support | ||
| BLC | Support | ||
| Defog | Digital Defog | ||
| Intelligent | |||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||
| Events | |||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | ||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||
| Audio | |||
| Audio Compression | G.711 | ||
| Audio Bitrate | 64 Kbps | ||
| Two-way audio | Support | ||
| Suppression | Support | ||
| Sampling Rate | 8KHZ | ||
| Storage | |||
| Edge Storage | Micro SD, up to 256 GB | ||
| Network Storage | ANR, NAS(NFS) | ||
| Network | |||
| Protocols | IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||
| Client | EZStation EZView EZLive | ||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||
| Interface | |||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||
| Alarm I/O | 1/1 | ||
| RS485 | N/A | ||
| Built-in Mic | Support | ||
| Built-in Speaker | N/A | ||
| WIFI | N/A | ||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||
| Video Output | N/A | ||
| Certifications | |||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||
| General | |||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||
| Power consumption: Max 11W | |||
| Power Interface | Ø 5.5mm coaxial power plug | ||
| Dimensions (Ø x H) | Φ129 x 110mm (Φ5.1” x 4.3”) | ||
| Weight | 0.64kg (1.41lb) | ||
| Material | Metal | ||
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Surge Protection | 4KV | ||
| Reset Button | Support | ||
