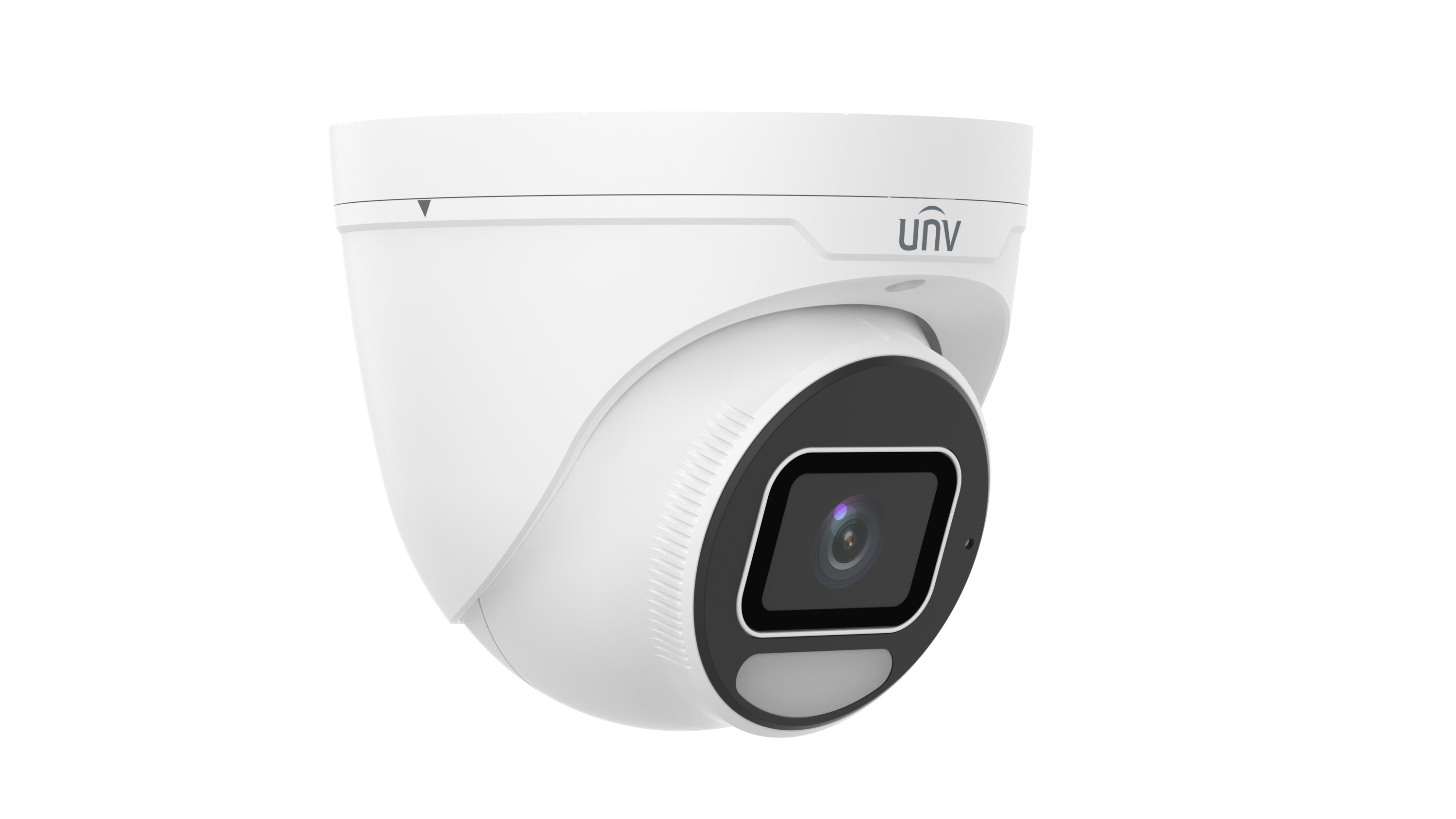

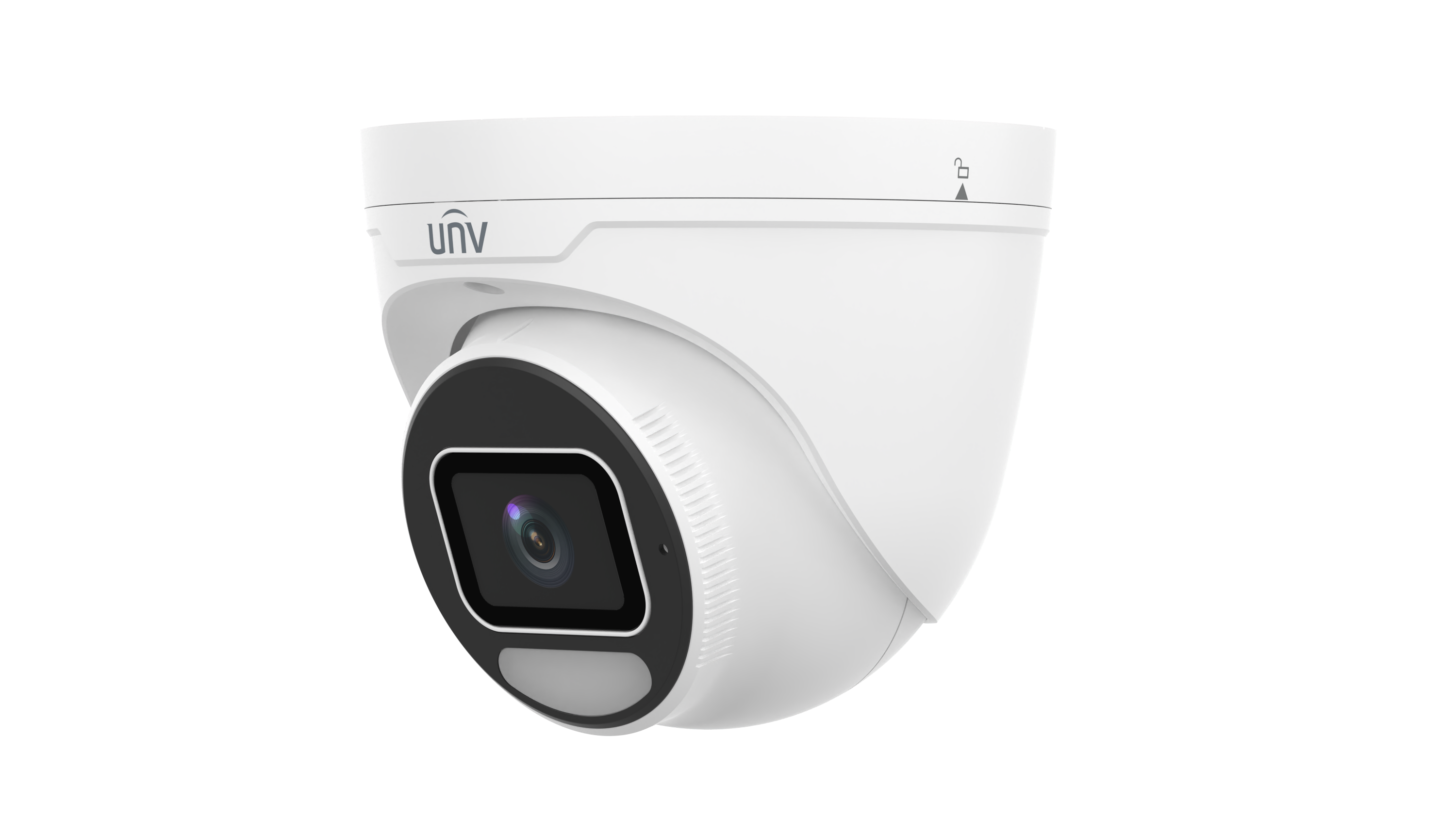

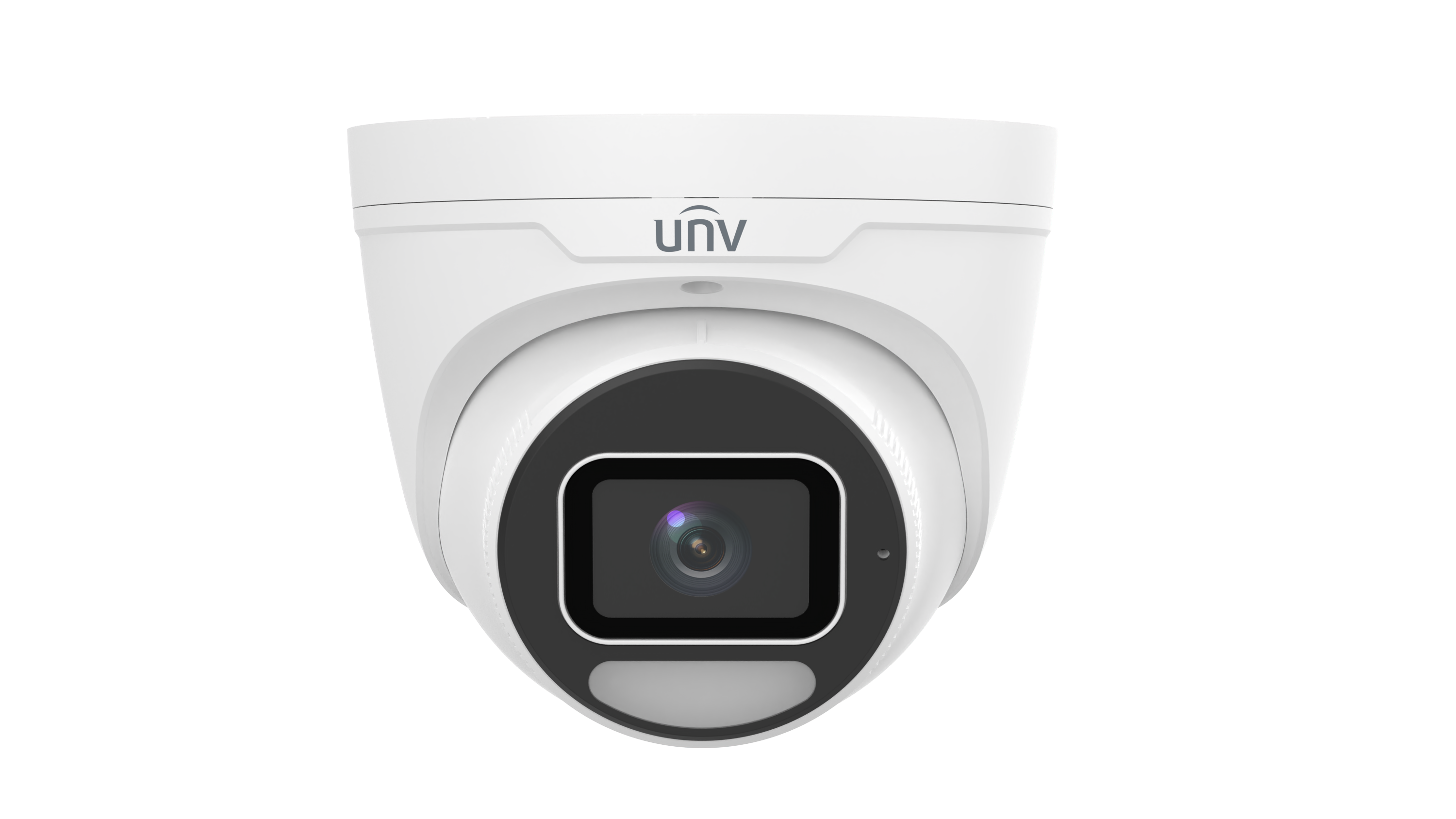

Uniview - IPC3638SE-ADF28K-WP-I1N - 8MP WDR OwlView Plus Eyeball Network Camera
• High quality image with 8 MP, 1/1.2" CMOS sensor
• 8 MP (3840 × 2160)@30/25 fps; 5.3 MP (3072 × 1728)@30/25 fps; 3.6 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720), max. 30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non-motor vehicle
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1, built-in mic
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• Supports NEMA 4X, IK10 vandal resistant and IP67 protection
| Camera | |
| Max Resolution | 8 MP (3840 × 2160) |
| Sensor | 1/1.2" CMOS - Large format sensor for superior image quality |
| Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) - Exceptional low-light performance |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N Ratio | > 56 dB |
| WDR | 130 dB Wide Dynamic Range |
| Lens | |
| Focal Length | 2.8 mm |
| Iris | Fixed F1.0 |
| Field of View | Horizontal: 105.0° Vertical: 56.1° Diagonal: 121.0° |
| Lens Type | Fixed |
| Illuminator | |
| Supplemental Light | Warm light |
| Illumination Distance | 30 m (98.4 ft) |
| Light Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265 H.265 H.264 MJPEG |
| Frame Rate - Main Stream | 8 MP (3840 × 2160), max. 30 fps 5.3 MP (3072 × 1728), max. 30 fps 3.6 MP (2560 × 1440), max. 30 fps 1080P (1920 × 1080), max. 30 fps 720P (1280 × 720), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Advanced Features | U-code Support Up to 8 OSDs Privacy Mask (4 areas) ROI Support Triple Streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Advanced Features | Auto Scene Match (ASM) HLC Support BLC Support Digital Defog Flip Options |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (With false alarm filtering and classification of human, non-motor vehicle and vehicle) |
| People Analytics | People Flow Counting and Crowd Density Monitoring |
| Attribute Collection | SIP with color retrieval |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Features | Two-way Audio Support Suppression Support 64 Kbps Bitrate 8 kHz Sampling Rate Built-in Mic Support |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Protection & Certification | |
| Protection Ratings | IP67 Waterproof IK10 Vandal Proof NEMA 4X Certified |
| Certifications | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 6.0 W |
| Dimensions | Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H) |
| Weight | 0.69 kg (1.52 lb) |
| Material | Metal construction |
| Operating Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Web Client Languages | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
The IPC3638SE-ADF28K-WP-I1N camera uses an 8 MP 1/1.2" CMOS sensor, providing a maximum resolution of 3840 × 2160 at up to 30 frames per second. The optics feature a fixed lens with an F1.0 large-aperture and a focal length of 2.8 mm, offering a horizontal field of view of 105.0°. The camera utilizes a Warm Light illumination system, with an illumination distance of up to 30 meters. Video compression is supported via Ultra 265, H.265, H.264, and MJPEG, and the camera supports triple video streams.
Image processing features include 130 dB true Wide Dynamic Range, which processes high-contrast lighting to maintain detail in both bright and shadowed areas. 2D/3D Digital Noise Reduction is applied to clean up video artifacts. The ColorHunter with Wise-ISP technology ensures 24-hour full-color images, with an extremely low minimum color illumination of only 0.0003 Lux. The camera includes an advanced Intelligent Intrusion Prevention System, which classifies targets (human, motor vehicle, non-motor vehicle) to reduce false alarms, along with features like People Counting and Auto Scene Match. The integrated built-in mic supports two-way audio (speaker is not listed as supported), and it features dedicated Alarm I/O and Audio I/O ports. The camera has IP67 for dust and water, IK10 vandalism protection ratings, and is NEMA 4X compliant. The operational temperature range is specified from -40 °C to 60 °C (-40 °F to 140 °F). Power is supplied via DC 12 V or Power over Ethernet, with a maximum power consumption of 6.0 W.
