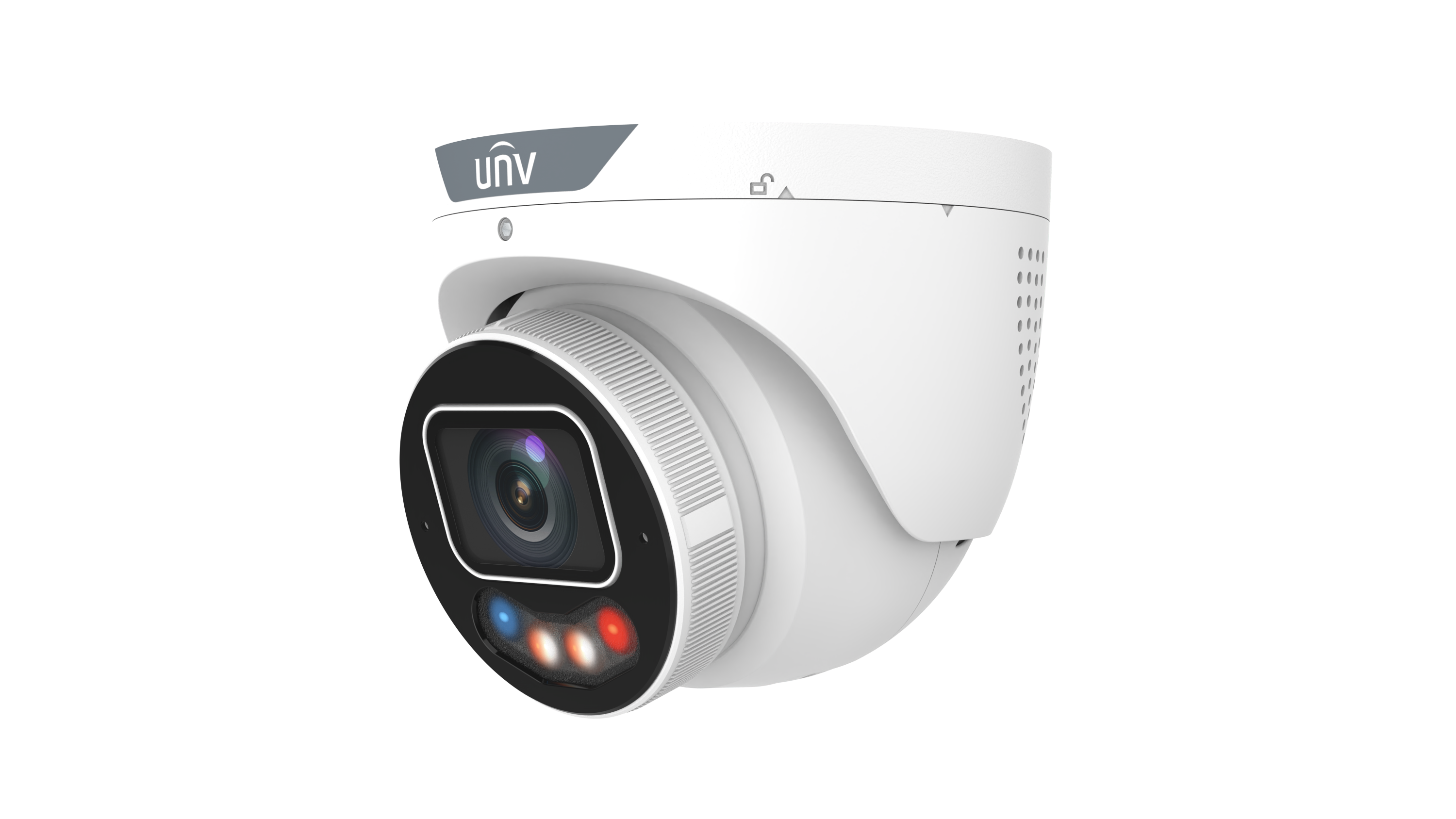

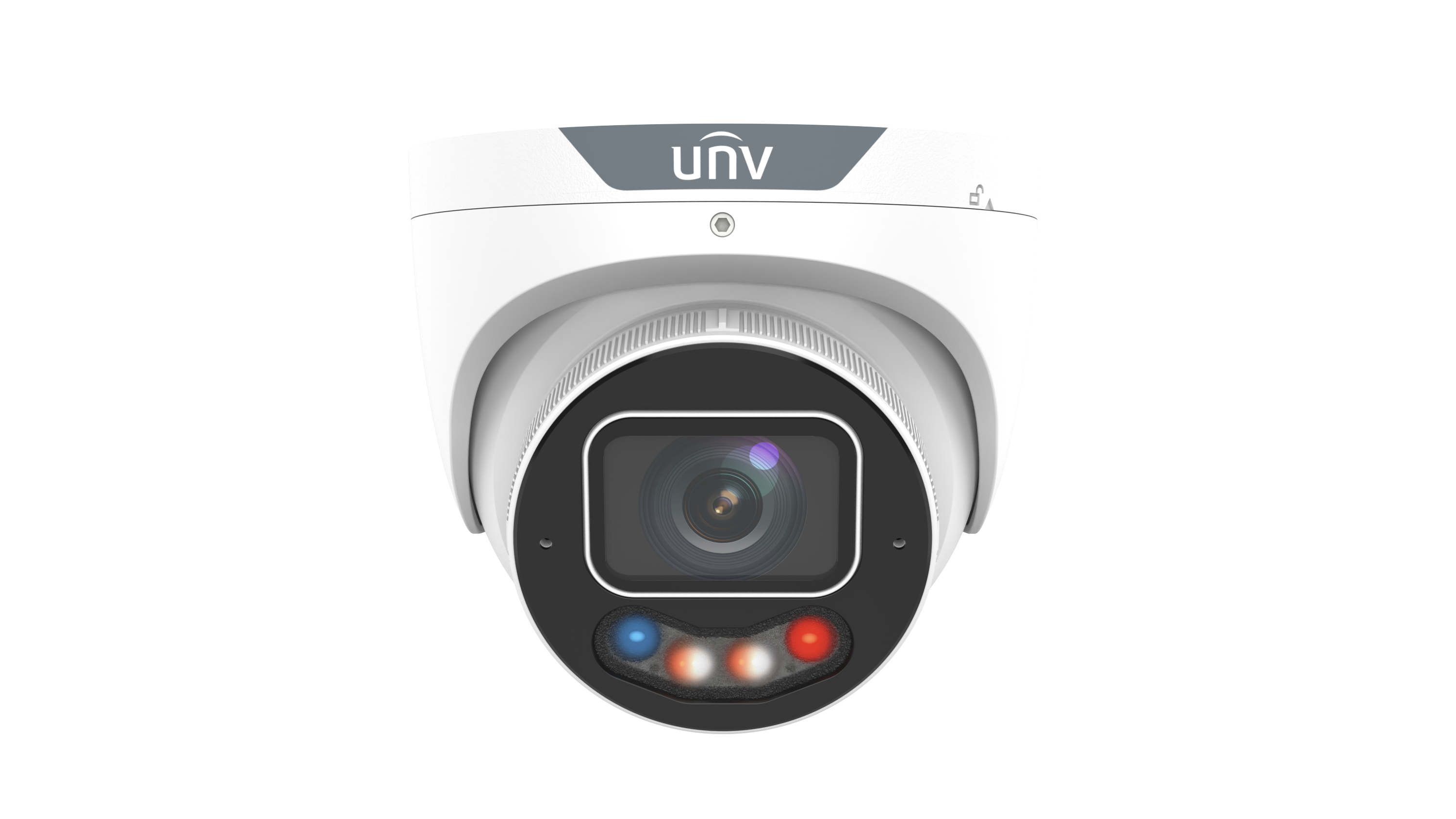

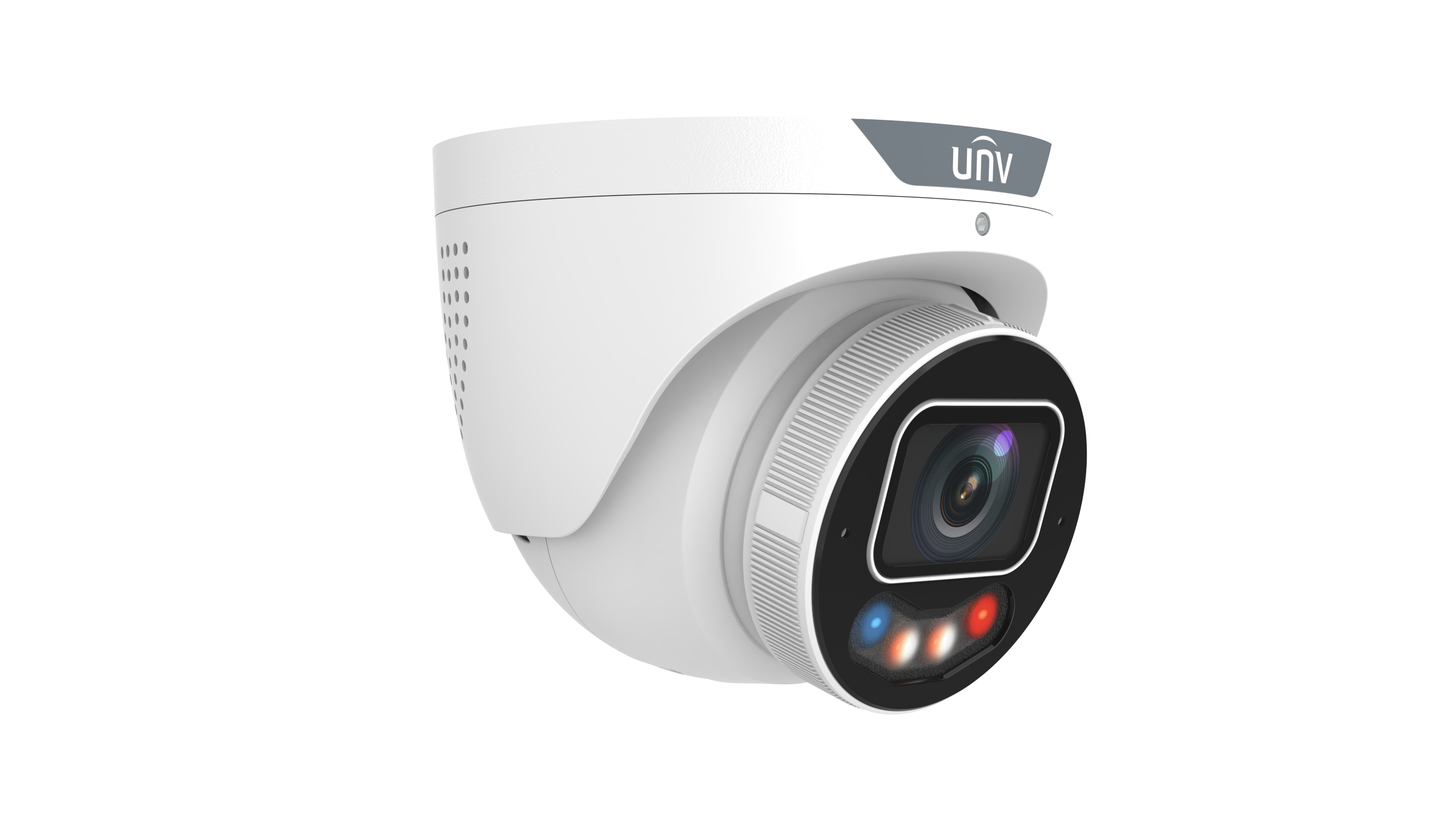

Uniview - IPC3638SE-ADF28KMC-WP-I1N - 8MP Dual-light Eyeball Warning Network Camera
• High quality image with 8 MP, 1/1.8" CMOS sensor
• Features an F1.0 large-aperture lens
• 8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non motor vehicles
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1
• Built-in dual-mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant
• Supports NEMA 4X and IP67 protection
| Camera | |
| Max Resolution | 8 MP (3840 × 2160) |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.0, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N Ratio | > 56 dB |
| WDR | 130 dB Wide Dynamic Range |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 108.1° |
| Field of View (V) | 59.5° |
| Field of View (D) | 130.2° |
| Lens Type | Fixed |
| DORI Distances | |
| DORI Distance (Lens) | 2.8 mm |
| DORI Distance (Detect) | 63.0 m (206.7 ft.) |
| DORI Distance (Observe) | 25.2 m (82.7 ft.) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) |
| DORI Distance (Identify) | 6.3 m (20.7 ft.) |
| Illuminator | |
| Supplemental Light | Dual light (IR + Warm Light) |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265 H.265 H.264 MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate - Main Stream | 8 MP (3840 × 2160), max. 30 fps 5 MP (3072 × 1728), max. 30 fps 4 MP (2560 × 1440), max. 30 fps 1080P (1920 × 1080), max. 30 fps 720P (1280 × 720), max. 30 fps |
| Frame Rate - Sub Stream | 1080P (1920 × 1080), max. 30 fps 720P (1280 × 720), max. 30 fps D1 (720 × 576), max. 30 fps 640 × 360, max. 30 fps 2CIF (704 × 288), max. 30 fps CIF (352 × 288), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Special Features | U-code Support • Up to 8 OSDs • Privacy Mask (4 areas) • ROI Support • Triple Streams |
| Image Processing | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart Features | Smart Illumination • Auto Scene Match (ASM) • HLC Support • BLC Support • Digital Defog |
| Flip Options | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Intelligent Features | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and classification of human, non-motor vehicle and vehicle) |
| People Analytics | People Flow Counting and Crowd Density Monitoring |
| Attribute Collection | SIP with color retrieval |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Features | Two-way Audio Support • Suppression Support • 64 Kbps Bitrate • 8 kHz Sampling Rate |
| Built-in Audio | Built-in dual-mic and Built-in Speaker Support |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 6.5 W |
| Dimensions | Ø128.7 mm × 110.3 mm (Ø5.1" × 4.3") |
| Weight | 1.05 kg (2.31 lb) |
| Material | Metal |
| Protection Ratings | IP67 • IK10 • NEMA 4X |
| Operating Temperature | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉) |
| Web Client Languages | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
The IPC3638SE-ADF28KMC-WP-I1N camera uses an 8 MP 1/1.8" CMOS sensor, providing a maximum resolution of 3840 × 2160 at up to 30 frames per second. The optics feature a fixed lens with an F1.0 large-aperture and a focal length of 2.8 mm, offering a horizontal field of view of 108.1°. The camera utilizes a Dual Light illumination system, Smart IR and Warm Light, with an illumination distance of up to 30 meters for both. Video compression is supported via Ultra 265, H.265, H.264, and MJPEG, and the camera supports triple video streams.
Image processing features include 130 dB true Wide Dynamic Range, which processes high-contrast lighting to maintain detail in both bright and shadowed areas. 2D/3D Digital Noise Reduction is applied to clean up video artifacts. The ColorHunter with Wise-ISP technology ensures 24-hour full-color images, with an extremely low minimum color illumination of only 0.0005 Lux. The camera includes an advanced Intelligent Intrusion Prevention System, which classifies targets (human, motor vehicle, non-motor vehicle) to reduce false alarms, along with features like People Counting and Auto Scene Match. The integrated built-in dual-mic and speaker provide two-way audio and facilitate active deterrence with Red & Blue light and sound alarms, and it features dedicated Alarm I/O and Audio I/O ports. The camera has IP67 for dust and water, IK10 vandalism protection ratings, and is NEMA 4X compliant. The operational temperature range is specified from -40 °C to 60 °C (-40 °F to 140 °F). Power is supplied via DC 12 V or Power over Ethernet, with a maximum power consumption of 6.5 W.
