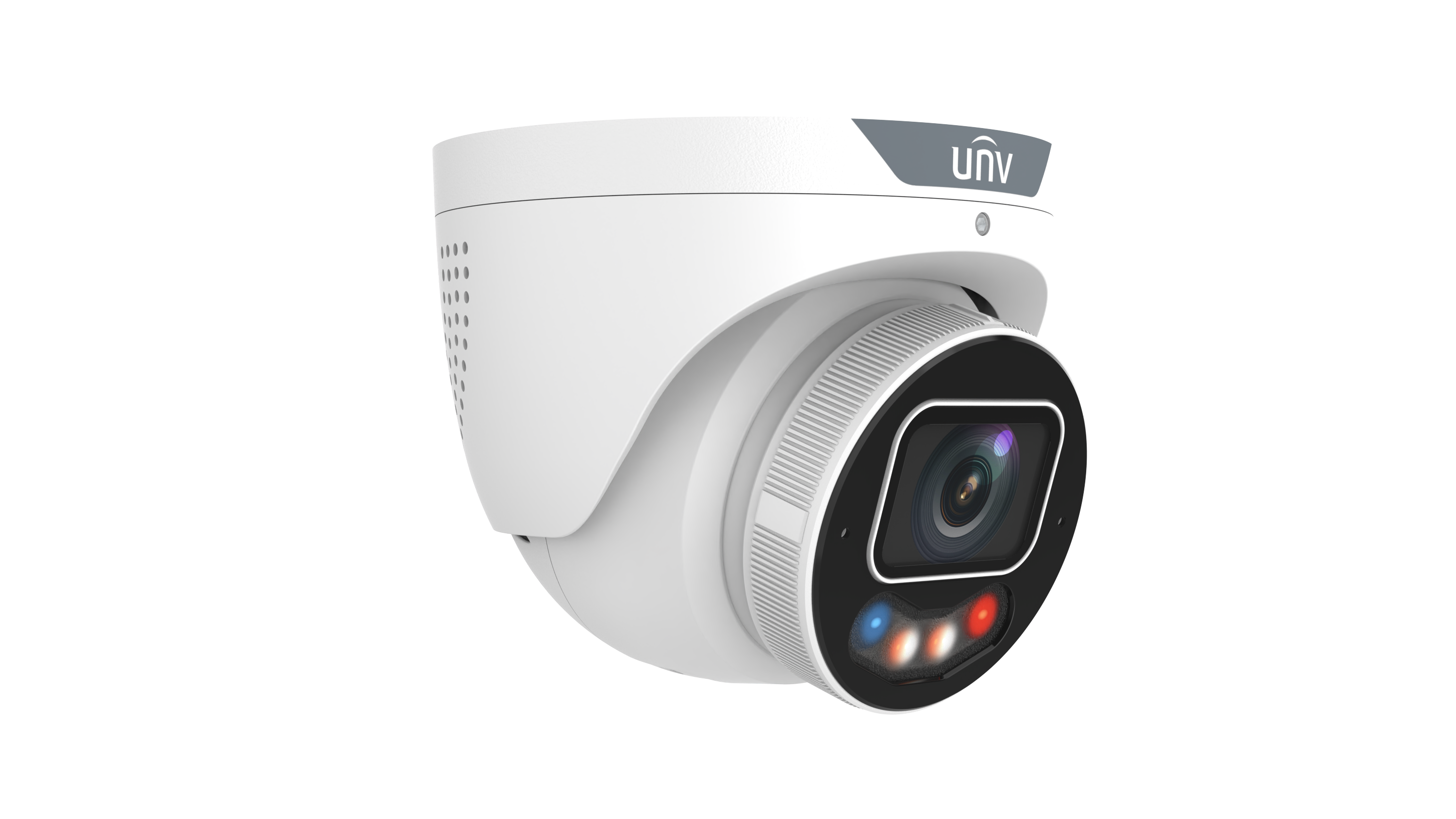

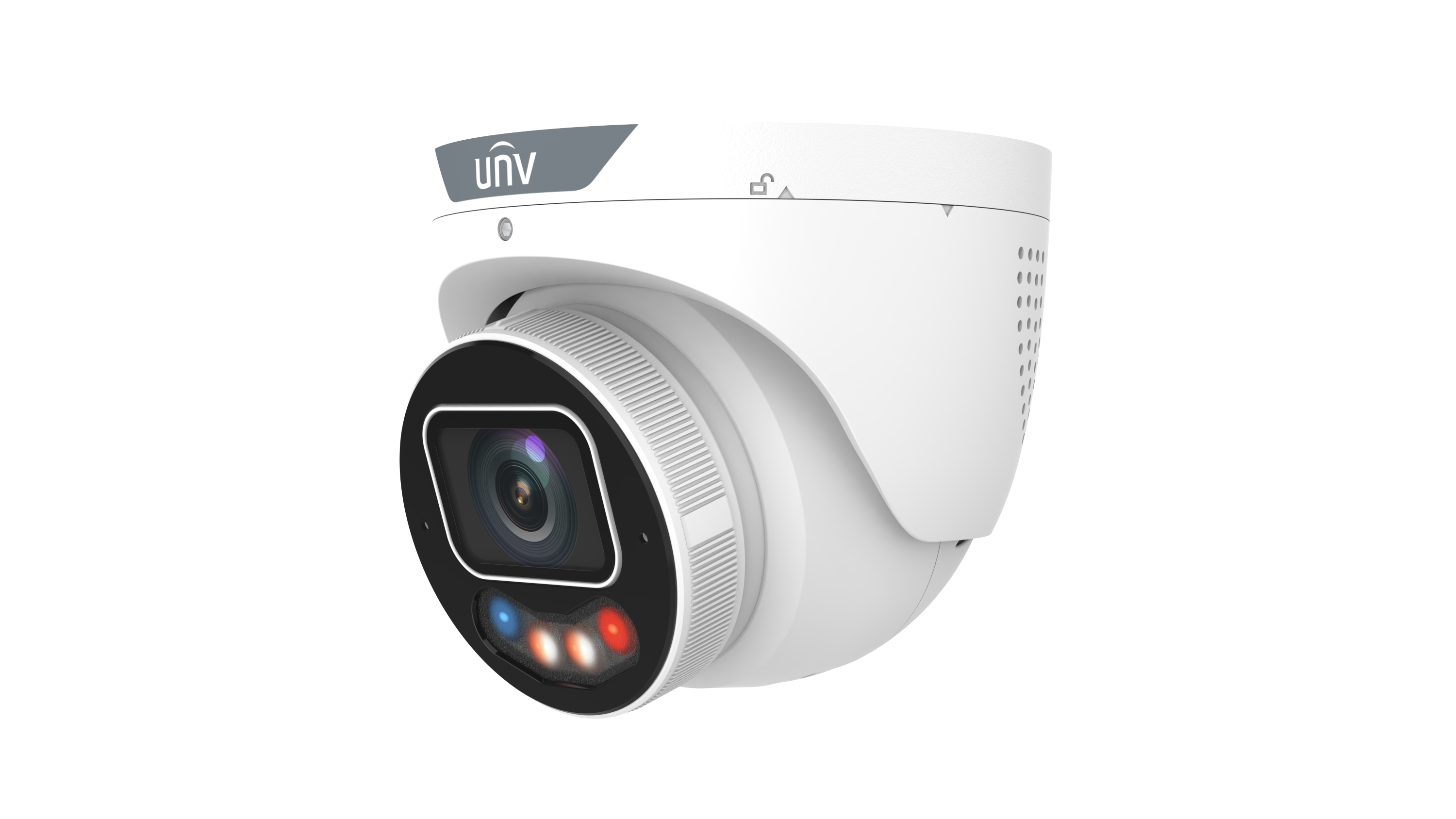

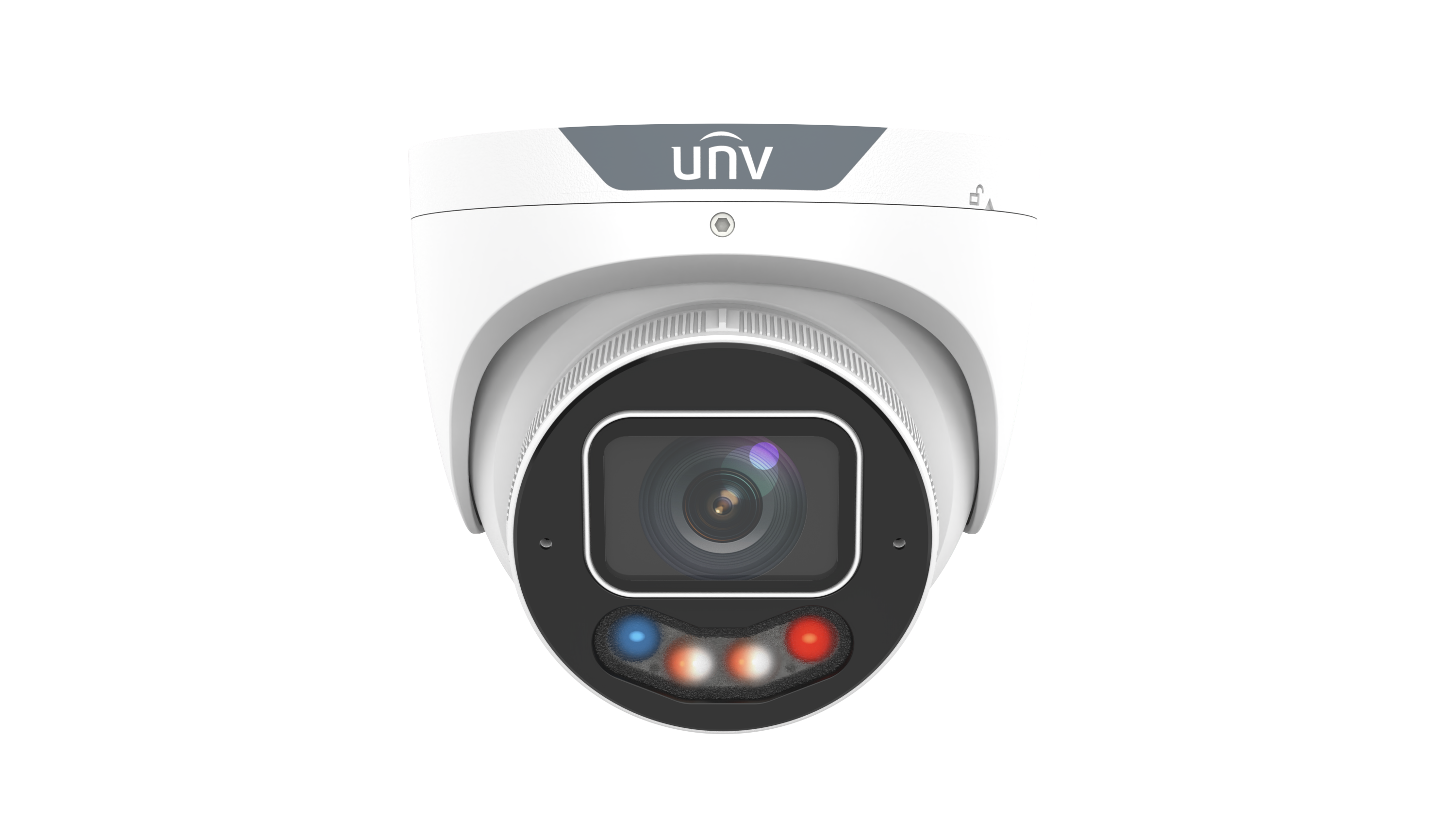

Uniview - IPC3638SE-ADF40KMC-WP-I1 - 8MP Dual-light Eyeball Warning Network Camera
• High quality image with 8 MP, 1/1.8" CMOS sensor
• Features an F1.0 large-aperture lens
• 8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non motor vehicles
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1
• Built-in dual-mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant
• Supports NEMA 4X and IP67 protection
| Camera | |
|---|---|
| Max Resolution / Sensor | 8 MP (3840 × 2160) / 1/1.8" CMOS |
| Min. Illumination (Color) | 0.0005 Lux (F1.0, AGC ON) |
| Shutter / Day/Night | Auto/Manual, 1 to 1/100000 s / IR-cut filter (ICR) |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N / WDR | > 56 dB / 130 dB |
| Lens | |
| Focal Length / Lens Type | 4.0 mm / Fixed |
| Iris Type / Iris | Fixed / F1.0 |
| Field of View (H/V/D) | H: 94.8°, V: 52.1°, D: 112.2° |
| DORI Distance | |
| DORI Distance (Detect) | 90.0 m (295.3 ft.) |
| DORI Distance (Observe) | 36.0 m (118.1 ft.) |
| DORI Distance (Recognize) | 18.0 m (59.1 ft.) |
| DORI Distance (Identify) | 9.0 m (29.5 ft.) |
| Illuminator | |
| Supplemental Light | Dual light (IR and Warm Light) |
| Illumination Distance (IR / Warm Light) | 30 m (98.4 ft) |
| Control / Wavelength | IR On/Off and Light On/Off Auto/Manual / 850 nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Baseline, Main, High profile) |
| Frame Rate - Main Stream | 8 MP (3840 × 2160), max. 30 fps (and various lower resolutions at 30 fps) |
| Video Bit Rate / Stream | 128 Kbps to 16 Mbps / Triple streams |
| OSD / Privacy Mask / ROI / U-code | Up to 8 OSDs / Up to 4 areas / Support / Support |
| Image | |
| Features | 2D/3D DNR, Smart Illumination, Auto Scene Match (ASM) |
| Processing | HLC, BLC, Digital Defog |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Flip / Dewarping | Normal, Flip vertical/horizontal, 180°, 90° Clockwise/Anti-clockwise / N/A |
| Intelligent | |
| Intrusion Detection | Cross line, intrusion, enter area, leave area detection |
| False Alarm Filtering | Classification of **human, non-motor vehicle and vehicle** |
| Analytics | People Counting (flow and crowd density monitoring), Attribute Collection (SIP with color retrieval) |
| Basic Detection Events | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| Audio | |
| Compression / Bitrate | G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz) |
| Two-way Audio / Suppression | Support / Support |
| Storage & Network | |
| Edge Storage / Network Storage | MicroSD, up to 512 GB / ANR, NAS (NFS) |
| Protocols | IPv4, IPv6, TCP, UDP, HTTPS, ONVIF (Profile S, G, T, M), API, SDK (and others) |
| User/Host | Up to 32 users. 3 user levels. |
| Client / Web Browser | EZStation, APP / Plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | 1 Input: impedance $35 \text{ k}\Omega$, amplitude $2 \text{ V} [p-p]$, 1 Output: impedance $600 \text{ \Omega}$, amplitude $2 \text{ V} [p-p]$ |
| Alarm I/O / Serial Port | 1/1 / N/A |
| Built-in Mic / Speaker | Built-in dual-mic / Support |
| Network / WIFI / Video Out | 1 $\times$ RJ45 10 M/100 M Base-TX Ethernet / N/A / N/A |
| General & Environment | |
| Power / Consumption | DC 12 V$\pm$25%, **PoE** (IEEE 802.3af) / Max. 6.5 W |
| Dimensions / Weight | $\text{\O}128.7 \text{ mm} \times 110.3 \text{ mm}$ ($\text{\O}5.1^{\prime\prime} \times 4.3^{\prime\prime}$) / $1.05 \text{ kg} (2.31 \text{ lb})$ |
| Material / Reset Button | Metal / Support |
| Protection Rating | **IP67**, **IK10**, **NEMA 4X** |
| Working Environment | $-40 \text{ \degree C}$ to $60 \text{ \degree C}$ ($-40 \text{ \degree F}$ to $140 \text{ \degree F}$) |
| Surge Protection | 4 KV |
| Certification | |
| EMC / Safety / Environment | CE-EMC, FCC / CE-LVD, UL/CUL / CE-RoHS, WEEE |
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
The IPC3638SE-ADF40KMC-WP-I1 camera uses an 8 MP 1/1.8" CMOS sensor, providing a maximum resolution of 3840 × 2160 at up to 30 frames per second. The optics feature a fixed lens with an F1.0 large-aperture and a focal length of 4.0 mm, offering a horizontal field of view of 94.8°. The camera utilizes a Dual Light (Smart IR and Warm Light) illumination system, with an illumination distance of up to 30 meters for both. Video compression is supported via Ultra 265, H.265, H.264, and MJPEG, and the camera supports triple video streams.
Image processing features include 130 dB true Wide Dynamic Range, which processes high-contrast lighting to maintain detail in both bright and shadowed areas. 2D/3D Digital Noise Reduction is applied to clean up video artifacts. The ColorHunter with Wise-ISP technology ensures 24-hour full-color images, with an extremely low minimum color illumination of only 0.0005 Lux. The camera includes an advanced Intelligent Intrusion Prevention System, which classifies targets (human, motor vehicle, non-motor vehicle) to reduce false alarms, along with features like People Counting and Auto Scene Match. The integrated built-in dual-mic and speaker provide two-way audio and facilitate active deterrence with Red & Blue light and sound alarms, and it features dedicated Alarm I/O and Audio I/O ports. The camera has IP67 for dust and water, IK10 vandalism protection ratings, and is NEMA 4X compliant. The operational temperature range is specified from -40 °C to 60 °C (-40 °F to 140 °F). Power is supplied via DC 12 V or Power over Ethernet, with a maximum power consumption of 6.5 W.
