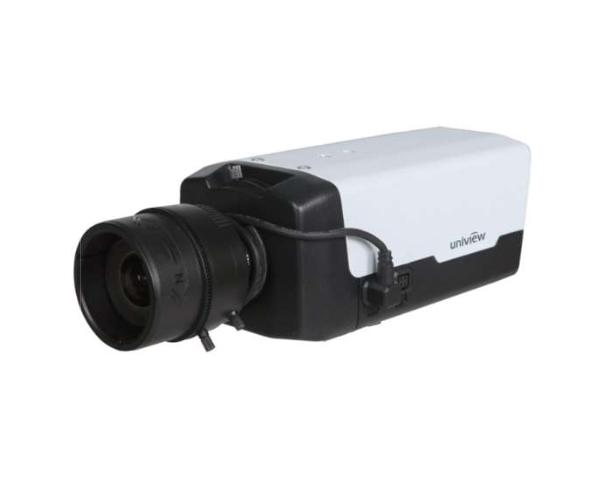

Uniview - IPC568E-G - UNV 4K Ultra-HD Network Box Camera(4K, Optical Defog, SFP, SD, Audio, Alarm, RS485, BNC)
Part number:
IPC568E-G
Price:
UNV 4K Ultra-HD Network Box Camera(4K, Optical Defog, SFP, SD, Audio, Alarm, RS485, BNC)
Features:
Optics
Auto day/night functionality
2D/3D DNR (Digital Noise Reduction)
Optical DefogCompression
Ultra 265,H.265, H.264, MJPEG
Embedded smart algorithm
4000 * 3000 Resolution Supported
Triple streams
ROI (Region of Interest)
9:16 corridor format
Network
Optional network interfaces with Ethernet RJ45 and optical SFP
ONVIF Conformance
Structure
AC 24V /DC 12 V/PoE with uninterruptible power supply
Wide temperature range: -20°C to 60°C (-4°F to 140°F)
Wide voltage range of ±25%
6 KV surge protection designed for network interface
| IPC568E-G | |
| Camera | |
| Sensor | 1/1.7" progressive scan ,CMOS |
| Lens Mount | CS |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Minimum Illumination | Colour: 0.005 Lux (F1.2, AGC ON) B/W:0.03 Lux(F1.2, AGC ON) |
| Iris | DC-Iris 4V (4-Pin)/P-Iris 5V (4-Pin) |
| Day & night | Automatically removable IR-cut filter(ICR) |
| Digital noise reduction | 2D/3D DNR |
| Motor Zoom/focus | DC 5V (4-Pin) |
| S/N | >55dB |
| Defog | Optical Defog & Digital Defog |
| WDR | DWDR |
| Video | |
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:12 MP(4000×3000):Max.20 fps，8MP(3840 × 2160): Max.30fps, 2MP(1920×1080)@30fps； Sub Stream:2MP(1920×1080) : Max. 30fps； Third Stream: D1 (720×576): Max. 30fps |
| 9:16 Corridor Mode | Supported |
| HLC | Supported |
| BLC | Supported |
| ROI | Up to 8 areas |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x， SNMP | |
| Compatible Integration | ONVIF(Profile S, Profile G), API | |
| Interface | ||
| Audio I/O | 3.5 mm audio interface | |
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | ||
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | ||
| Alarm I/O | 2 / 1 | |
| Serial Port | 1 RS485 (support Pelco-D/P) | |
| Network | 100M/1000M Base-FX SFP + 100M/1000M Base-TX Ethernet | |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] | |
| General | ||
| Power | 24 V AC±25%, 12 V DC±25%, PoE (IEEE802.3 af) | |
| Power consumption: Max 9.5W | ||
| Dimensions (L × W × H) | 151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens) | |
| Weight | 0.48 kg (1.1 lb) | |
| Working Environment | –20°C ~ 60°C (-4°F ~ 140°F), Humidity :10%~95% RH(non-condensing) | |
| Reset Button | Supported | |
