UNV - IPC6234LR-AX5C-VG3 - 4MP 5X Starlight IR Network Mini PTZ Dome Camera Datasheet
Product Overview

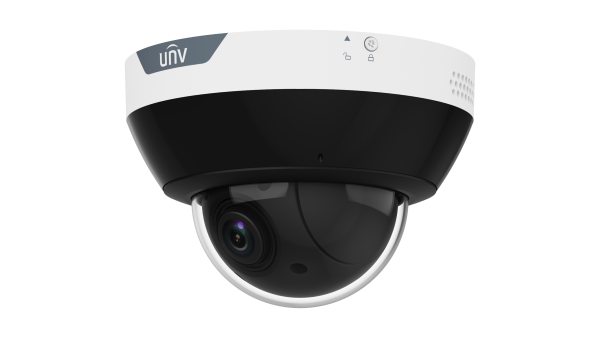

The Uniview IPC6234LR-AX5C-VG3 is a 4MP 5X Starlight IR mini PTZ dome camera with a 1/2.9-inch CMOS sensor, 2.7–13.5mm motorized lens, and 120dB WDR. Its Wise-ISP processing, adaptive IR illumination, and intelligent auto-tracking support clear, stable surveillance in low-light and dynamic scenes.
The compact camera provides smart intrusion prevention, people-flow analytics, two-way audio, alarm and audio I/O, IP67 weather protection, and IK10 vandal resistance.
Key Configuration
Model: IPC6234LR-AX5C-VG3 | Resolution: 4MP, up to 2560 × 1440 at 30fps | Lens: Motorized 2.7–13.5mm, 5X optical zoom and 16X digital zoom | Connectivity: RJ45 10/100M Ethernet, IEEE 802.3af PoE or DC 12V | Protection: IP67, IK10
Key Features
- · 4MP imaging with Wise-ISP processing for low-light performance
- · 5X optical zoom, 16X digital zoom, and motorized 2.7–13.5mm lens
- · Adaptive IR illumination up to 20m synchronized with PTZ rotation
- · UNV LM-Auto Tracking for motor vehicles, non-motor vehicles, and pedestrians
- · Smart intrusion prevention with cross-line, enter-area, leave-area, and intrusion detection
- · People-flow counting and crowd-density monitoring
- · 120dB WDR, 2D/3D DNR, HLC, BLC, defog, and digital image stabilization
- · Ultra 265, H.265, H.264, and MJPEG compression with dual streams and ROI
- · Built-in microphone and speaker with two-way audio, plus 1/1 alarm and audio I/O
- · MicroSD storage up to 512GB, ONVIF Profile S, G, T, and M, and NDAA compliance
Technical Context
The camera combines PTZ movement with adaptive IR and AI-based tracking. IR illumination adjusts by zone as the camera rotates, while LM-Auto Tracking maintains target identification through occlusion, multi-target crossings, and fast motion. Smart intrusion prevention classifies people, motor vehicles, and non-motor vehicles to reduce false alarms.
Installation Notes
Use DC 12V ±25% or IEEE 802.3af PoE for power and connect through the 10/100M RJ45 interface. The camera measures Ø129 × 91mm, weighs 0.67kg, and operates from -30°C to 60°C with up to 95% non-condensing humidity. Optional junction boxes, wall brackets, and 200mm or 500mm pendant mounts are available for supported installations.
| Product Information | |
| Model | IPC6234LR-AX5C-VG3 |
| Product Type | 4MP 5X Starlight IR Network Mini PTZ Dome Camera |
| Image Sensor | 1/2.9" CMOS |
| Case Type | PT |
| Camera and Lens | |
| Maximum Resolution | 4MP |
| Lens | 2.7–13.5mm motorized lens |
| Iris | F1.68–F3.18 |
| Optical Zoom | 5X |
| Digital Zoom | 16X |
| Day/Night | IR-cut filter with automatic switch, ICR |
| Shutter | Auto/manual, 1/1 to 1/100000 s |
| WDR | 120dB |
| Signal-to-Noise Ratio | >56dB |
| Image Stabilization | DIS |
| Low-Light Technology | LightHunter |
| DORI Distance | |
| Detect | 75.8–227.9m (248.8–747.8ft) |
| Observe | 30.3–91.2m (99.4–299.1ft) |
| Recognize | 15.2–45.6m (49.9–149.6ft) |
| Identify | 7.6–22.8m (24.9–74.8ft) |
| PTZ Functions | |
| Patrols | 16 patrols with up to 64 presets per patrol |
| Preset Patrol Stay Time | 200–1800 seconds |
| Pan/Tilt Control | Motorized pan and tilt with configurable presets and patrols |
| IR Illumination | |
| IR Distance | Up to 20m (65.6ft) |
| IR Control | Adaptive IR illumination synchronized with PTZ rotation |
| Video | |
| Compression | Ultra 265, H.265, H.264 and MJPEG |
| Main Stream | 4MP 2560×1440 up to 30fps |
| Main Stream Default | 4MP 2560×1440 at 25fps |
| Sub Stream | 720×576 up to 30fps |
| Video Bit Rate | 128Kbps–6144Kbps |
| Video Features | Dual streams, U-Code, up to 4 OSDs, up to 4 privacy-mask areas and up to 8 ROI areas |
| Intelligent Features | |
| Smart Intrusion Prevention | Cross-line, intrusion, enter-area and leave-area detection with human, vehicle and non-motor vehicle classification |
| Auto Tracking | UNV LM-Auto Tracking for motor vehicles, non-motor vehicles and pedestrians |
| People Analysis | People-flow counting and crowd-density detection |
| Exception Detection | Object removed and object left behind detection |
| Image Functions | 2D/3D DNR, BLC, digital defog and image flip |
| Audio and Storage | |
| Audio | Built-in microphone and speaker |
| Two-Way Audio | Supported |
| Audio I/O | 1 input and 1 output |
| Audio Compression | G.711U, G.711A and AAC-LC |
| Local Storage | MicroSD card up to 512GB |
| Network Storage | NAS via NFS |
| Network and Interfaces | |
| Network Interface | 1× RJ45 10/100 Base-TX Ethernet port |
| Alarm I/O | 1 alarm input and 1 alarm output |
| Protocols | IPv4/IPv6, TCP, UDP, DHCP, PPPoE, RTSP, RTP, RTCP, RTMP, DNS, DDNS, NTP, HTTP, HTTPS, FTP, UPnP, SMTP, SNMP, QoS, SSL/TLS and 802.1x |
| Integration | ONVIF Profile S, Profile G, Profile T and Profile M; API and SDK |
| Users | Up to 32 users with administrator, operator and common-user levels |
| Client Software | EZStation, UniEase and UniTools Pro |
| Power and Mechanical | |
| Power Supply | DC 12V ±25% or PoE IEEE 802.3af |
| Power Connector | Ø5.5mm coaxial power plug |
| Dimensions | Ø129 × 91mm (Ø5.1 × 3.6in) |
| Weight | 0.67kg (1.48lb) |
| Reset Button | Supported |
| Power Backfeeding | 12V, 60mA supported |
| Environmental Protection | |
| Protection Rating | IP67 and IK10 |
| Operating Environment | -30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing |
| Storage Environment | -40°C to 70°C (-40°F to 158°F), up to 95% RH non-condensing |
| Surge Protection | 4kV |
| Certifications | |
| Certifications | CE-EMC, FCC, CE-LVD, UL/CUL, CE-RoHS and WEEE |
| Compliance | NDAA compliant |
