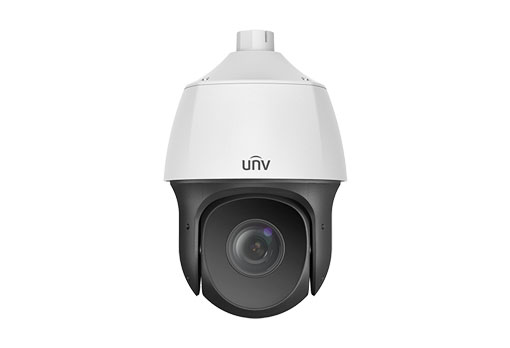

Uniview - IPC6322LR-X22-C - UNV 2MP 22X Network IR PTZ Dome Camera(6 Inch, RJ45, H.265)
Part number:
IPC6322LR-X22-C
Price:
UNV 2MP 22X Network IR PTZ Dome Camera(6 Inch, RJ45, H.265)
Optics:
- 22X Optical Zoom
- Fifth-generation infrared technology, more than150m (492ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- Optical glass window with higher light transmittance
- Smart IR
- EIS (Electronic Image Stabilization)
Compression:
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- Customized OSD
Network:
- ONVIF Conformance
Structure:
- Intelligent temperature control technology
- More effective heat dissipation system
- 6 KV surge protection designed for network interface
- IK10 vandal resistant
- IP66
| Camera | IPC6322LR-X22-C | |
| Sensor | 1/2.9" progressive scan, 2.0 megapixel, CMOS | |
| Lens | 5.2~ 114.4 mm，AF automatic focusing and motorized zoom lens | |
| Digital Zoom | 16 | |
| Optical Zoom | 22 | |
| DORI Distance | Lens | Detect(m) |
| Angle of View (V) | 5.2mm | 83.6 |
| Angle of View (O) | 114.4mm | 1838.6 |
| Angle of View (H) | 54.40°~ 3.44° | |
| Angle of View (V) | 39.2° ~1.9° | |
| Angle of View (O) | 66.9° ~4.1° | |
| Adjustment angle | Pan: 0°~360° | |
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000 s | |
| Minimum Illumination | Colour: 0.01 lux (F1.5,AGC ON) 0 lux with IR | |
| Iris | F1.5 | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Digital noise reduction | 2D/3D DNR | |
| S/N | >55 dB | |
| IR Range | UP to 150m (492ft) | |
| Defog | Digital Defog | |
| WDR | DWDR | |
| Video | ||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | |
| H.264 code profile | Baseline profile, Main Profile, High Profile | |
| Frame Rate | Main Stream:2MP (1920×1080):Max. 30 fps; Sub Stream:2MP (1920×1080):Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps | |
| HLC | Supported | |
| BLC | Supported | |
| EIS | Supported | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Motion Detection | Up to 4 areas | |
| Smart | ||
| Behavior Detection | Intrusion, cross line, motion detection | |
| Intrusion | Enter and loiter in a pre-defined virtual region | |
| cross line | Cross a pre-defined virtual line | |
| motion detection | Moving within a pre-defined virtual region | |
| Recognition | Face detection | |
| Statistical Analysis | People counting | |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |
| Audio | ||
| Audio Compression | N/A | |
| Two-way Audio | N/A | |
| Suppression | N/A | |
| Sampling Rate | N/A | |
| Storage | ||
| Edge Storage | Micro SD, up to 128 GB | |
| Network Storage | ANR | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | |
| Compatible Integration | ONVIF(Profile S, Profile G), API | |
| Pan & Tilt | ||
| Pan Range | 360° | |
| Pan Speed | 0.1°/s ~ 240°/s | |
| Preset speed: 300°/s | ||
| Tilt Range | –15° ~ +90° (auto reverse) | |
| Tilt Speed | 0.1° ~ 80°/s | |
| Preset speed: 80°/s | ||
| Number of Presets | 1024 | |
| Patrol | Preset patrol, route patrol, recorded patrol | |
| Home Position | Supported | |
| Interface | ||
| Audio I/O | N/A | |
| N/A | ||
| Alarm I/O | N/A | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |
| General | ||
| Power | DC 12V±10% | |
| Power consumption: 16~30 W | ||
| Dimensions (Ø x H) | Φ215mm×344mm(Φ8.5” x13.5”) | |
| Weight | 3kg(6.6lb) | |
| Working Environment | –40°C ~ +65°C (-40°F ~ 149°F), Humidity:10%~90% RH(non-condensing) | |
| Ingress Protection | IP66 | |
| Vandal Resistant | IK10 | |
| Reset Button | Supported | |
