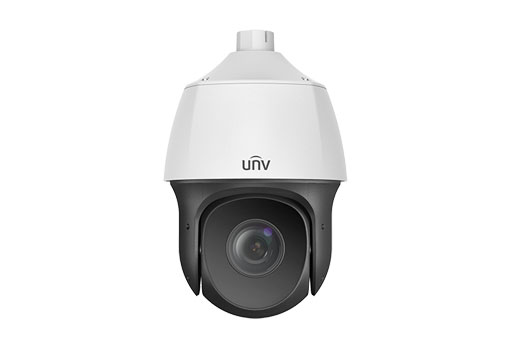

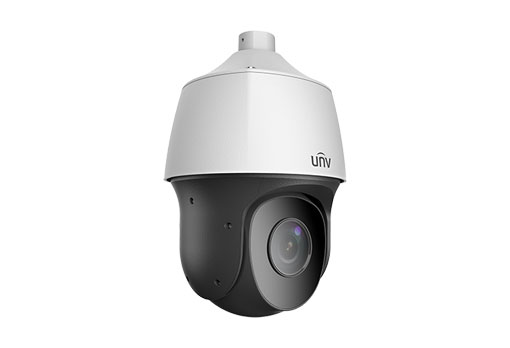

Uniview - IPC6322SR-X33DUP-C - UNV 2MP 33X Network Starlight PTZ Dome Camera
Part number:
IPC6322SR-X33DUP-C
Price:
UNV 2MP 33X Network Starlight PTZ Dome Camera(6 Inch, RJ45, H.265,Audio,Alarm,PoE)
Features:
Optics
- 33X Optical Zoom
- Starlight illumination
- Fifth-generation infrared technology, more than 150m (492ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- Optical glass window with higher light transmittance
- Smart IR
- EIS (Electronic Image Stabilization)
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- Customized OSD
Network
- ONVIF Conformance
Structure
- Intelligent temperature control technology
- More effective heat dissipation system
- 6KV surge protection designed for network interface
- IP66
| IPC6322SR-X33DUP-C | ||
| Camera | ||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |
| Lens | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens | |
| Digital Zoom | 16 | |
| Optical Zoom | 33 | |
| DORI Distance | Lens (mm) | Detect (m) |
| Angle of View (V) | 4.5 | 69.8 |
| Angle of View (O) | 148.5 | 2304.3 |
| Angle of View (H) | 76.8° ~ 2.1° | |
| Angle of View (V) | 38.4° ~ 1.2° | |
| Angle of View (O) | 94.46° ~ 2.48° | |
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | |
| Minimum Illumination | Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR | |
| Iris | F1.5 ~ F4.0 | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Digital noise reduction | 2D/3D DNR | |
| S/N | >55 dB | |
| IR Range | UP to 150m (492ft) | |
| Defog | Digital Defog | |
| WDR | 120dB | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| H.264 code profile | Baseline profile, Main Profile, High Profile | |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |
| HLC | Supported | |
| BLC | Supported | |
| EIS | Supported | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Motion Detection | Up to 4 areas | |
| Smart | ||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |
| Audio | ||
| Audio Compression | G.711 | |
| Two-way Audio | Supported | |
| Suppression | Supported | |
| Sampling Rate | 8KHZ | |
| Storage | ||
| Edge Storage | Micro SD, up to 256GB | |
| Network Storage | ANR | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, QoS | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |
| Pan & Tilt | ||
| Pan Range | 360° | |
| Pan Speed | 0.1°/s ~ 300°/s | |
| Preset speed: 200°/s | ||
| Tilt Range | -15° ~ 90° (auto reverse) | |
| Tilt Speed | 0.1° ~ 80°/s | |
| Preset speed: 80°/s | ||
| Number of Presets | 1024 | |
| Patrol | Preset patrol, route patrol, recorded patrol | |
| Home Position | Supported | |
| Interface | ||
| Audio I/O | 1 Input: impedance 1kΩ±10%; amplitude 2V [p-p] | |
| 1 Output: impedance 600Ω; amplitude 2V [p-p] | ||
| Alarm I/O | 2/1 | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |
| General | ||
| Power | DC 12V±25% | |
| Power consumption: 16 ~ 30W | ||
| Dimensions (Ø x H) | Φ220 × 369mm (Φ8.7” x 14.5”) | |
| Weight | 3kg (6.6lb) | |
| Working Environment | -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing) | |
| Ingress Protection | IP66 | |
| Reset Button | Supported | |
