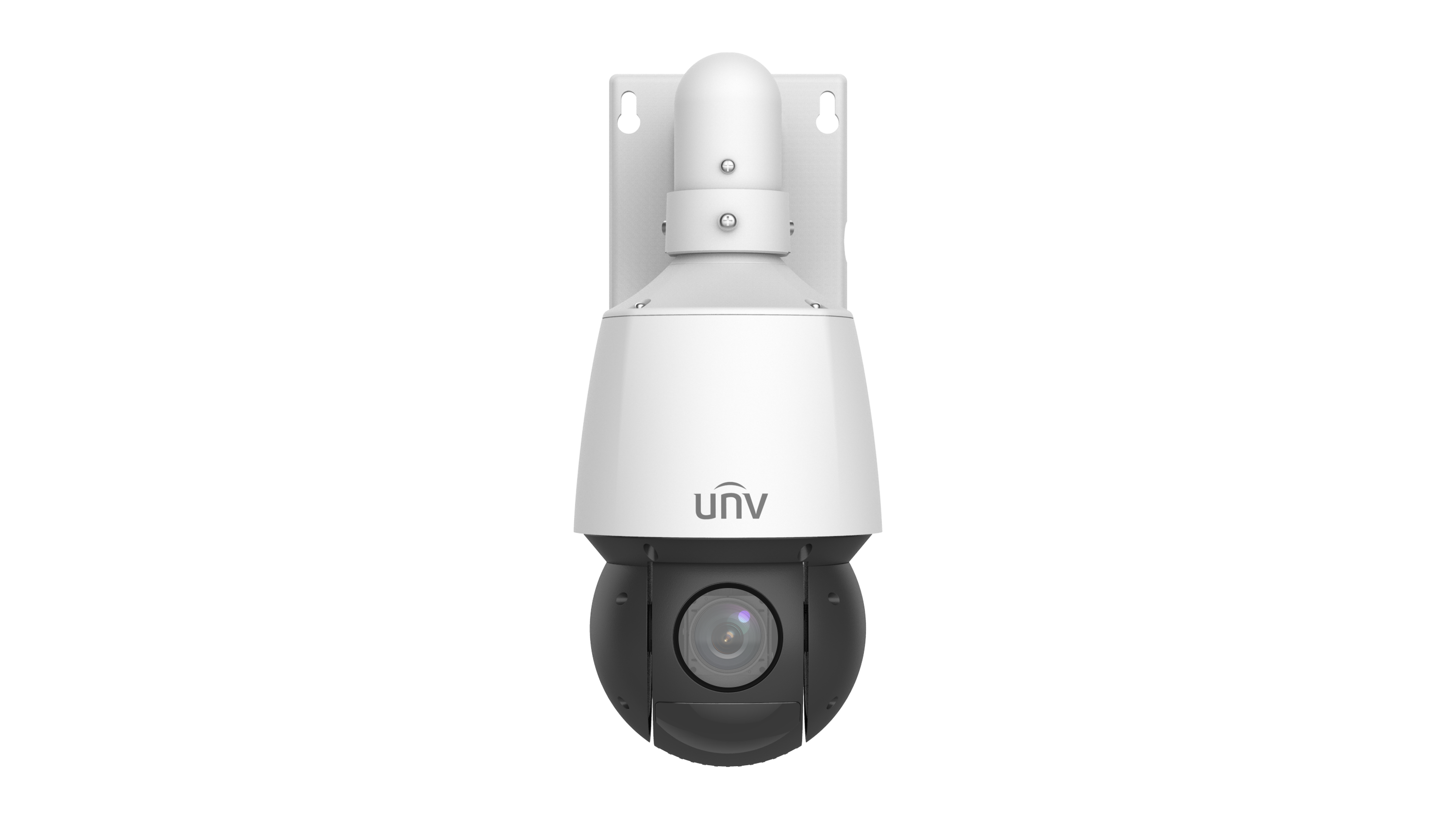

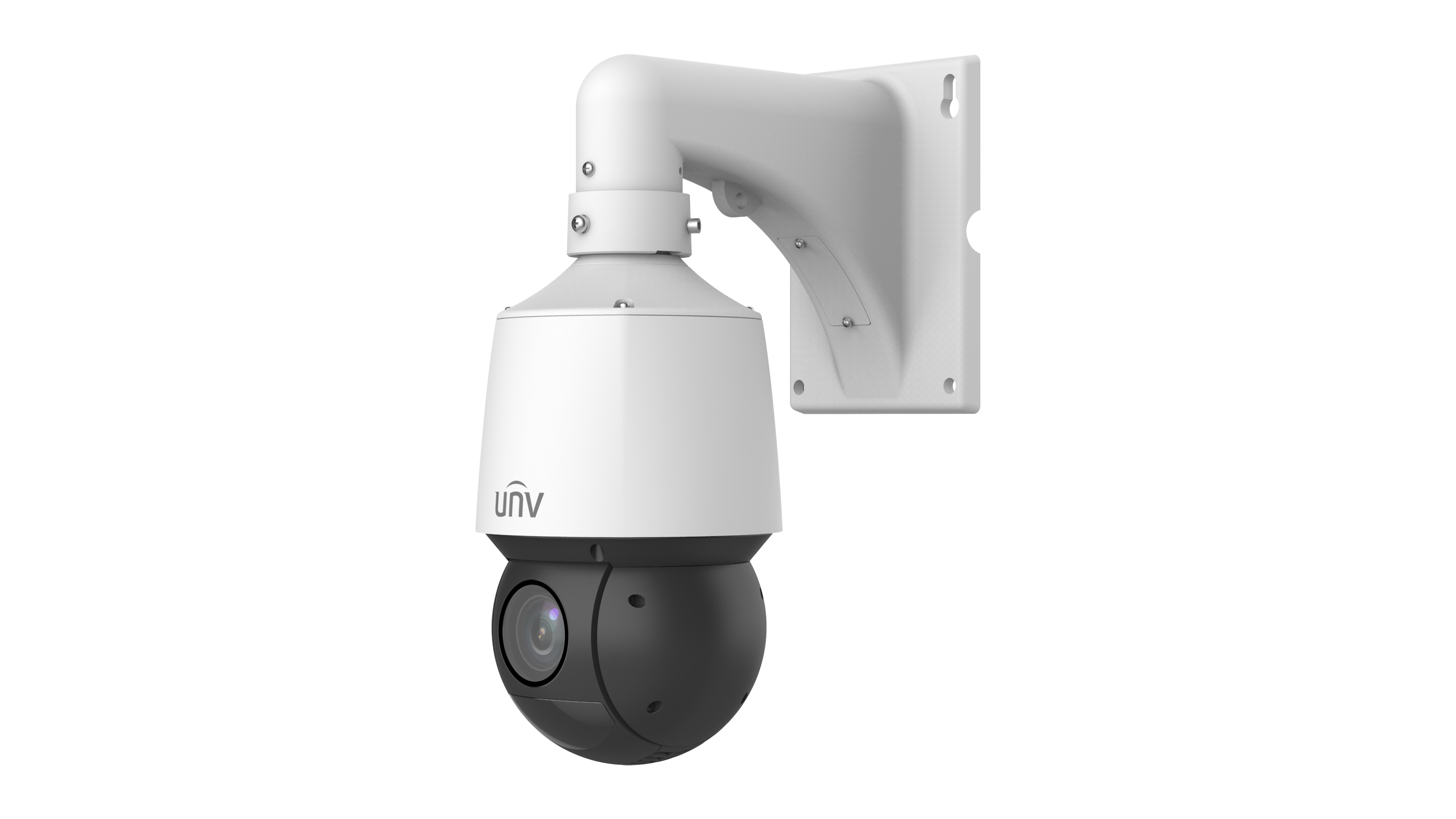

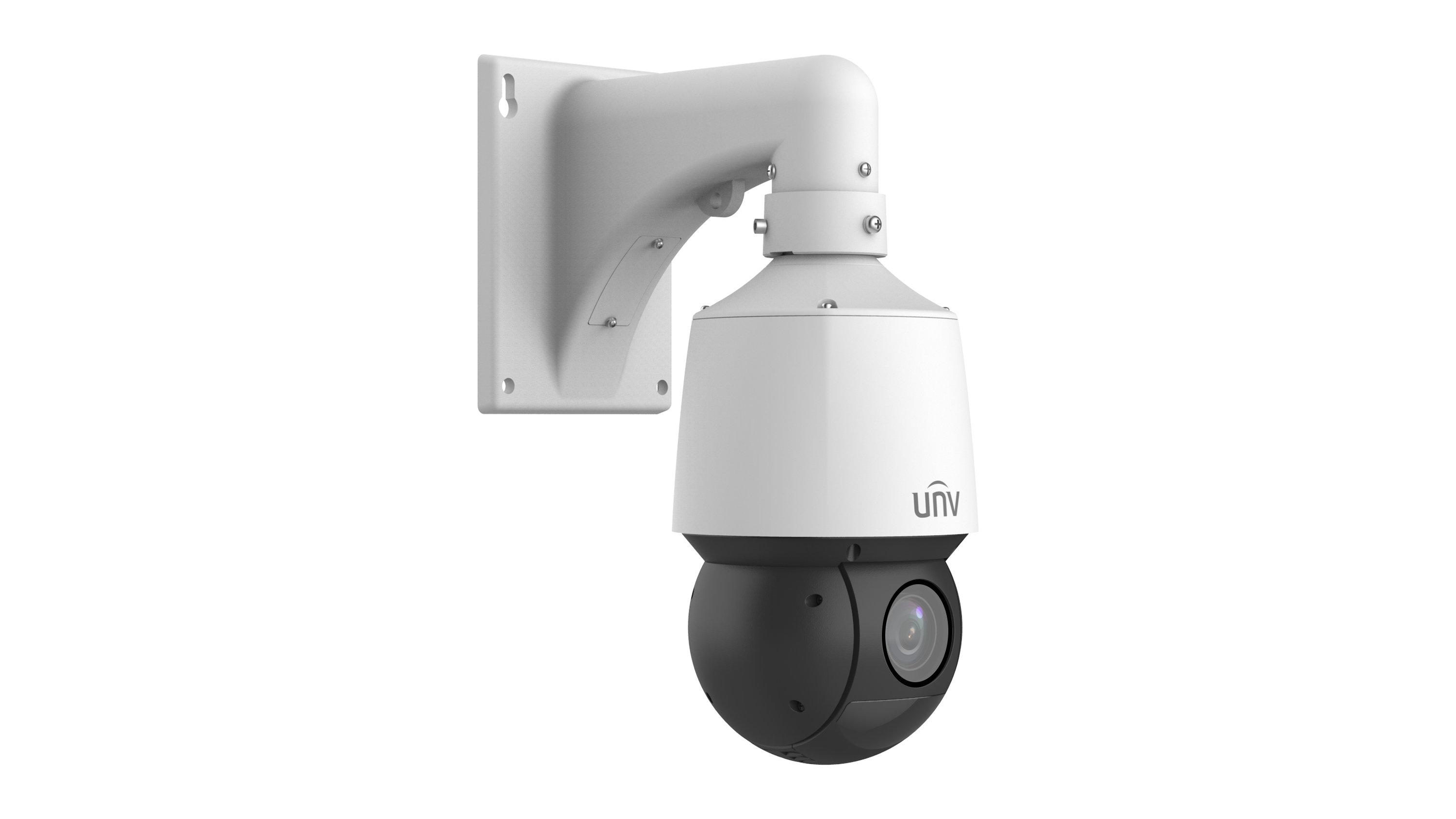

Uniview - IPC6412LR-X16-VG - 2MP 16x Lighthunter Network PTZ Dome Camera with bracket
Part number:
IPC6412LR-X16-VG
Price:
2MP 16X LightHunter IR Network Dome PTZ Camera
Features:
- High quality image with 2 MP, 1/2.8" CMOS sensor
- 1920 × 1080@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- 16X optical zoom allows for closer viewing of subjects
- Smart intrusion prevention, supports false alarm filtering, including cross Line, intrusion, enter area, leave area detection
- automatic selection of best snapshots
- People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 100m (328ft) IR distance
- Micro SD, up to 512 GB
- DC 12V ± 25 % or PoE+ (IEEE 802.3at)
- IP66 ingress protection
| IPC6412LR-X16-VG | |
| Camera | |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Colour: 0.003 Lux (F1.7, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120 dB |
| S/N | >52 dB |
| Lens | |
| Focal Length | 5 to 80 mm |
| Optical Zoom | 16X |
| Iris | F1.7 to F2.8 |
| Field of View (H) | 51.70° ~ 4.89° |
| Field of View (V) | 30.49° ~ 2.75° |
| Field of View (D) | 63.59° ~ 5.77° |
| DORI | |
| DORI Distance (Lens) | 5~80(mm) |
| DORI Distance (Detect) | 77.6m~1241.4m(254.5ft~4072.8ft) |
| DORI Distance (Observe) | 31.0m~496.6m(101.8ft~1629.1ft) |
| DORI Distance (Recognize) | 15.5m~248.3m(50.9ft~814.6ft) |
| DORI Distance (Identify) | 7.8m~124.1m(25.5ft~407.3ft) |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP(1920*1080),Max 30fps Sub Stream: 720P(1280*720), Max 30fps Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| OSD | Up to 8 OSDs |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Object removed, Object Left Behind |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Intelligent | |
| Exception Detection | Object removed, Object Left Behind |
| Auto Tracking | Support, target filtering: human, non-motor vehicle and vehicle |
| Multi-target Detection | N/A |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
| PTZ | |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Number of Presets | 1024 |
| Preset Image Freeze | N/A |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Home Position | Support |
| Pan Range | 360° (endless) |
| Pan Speed | –15° ~ 90° (auto reverse) |
| Tilt Range | 0.1°/s ~ 80°/s |
| Tilt Speed | 0.1°/s ~ 80°/s |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Heatwave Reduction | Support |
| Interface | |
| Audio I/O | N/A |
| WIFI | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Illuminator | |
| Illumination Distance (IR) | 100 m (328.1 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | DC12V(±25%,3A), PoE+(IEEE 802.3at) |
| Power Consumption | MAX 20W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø 162 x 293mm (Ø 6.4" x 11.5") (Ø x H) |
| Weight | 1.79kg (3.95lb) |
| Working Environment | -40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Heater | Support |
