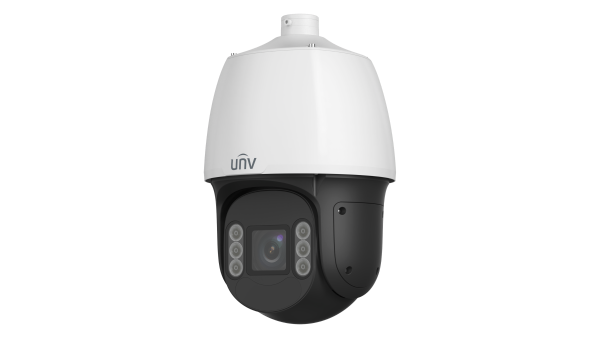

UNV - IPC6622SR-X25-VD2 - 2MP X25 Lighthunter IR Intelligent Network PTZ Camera
Product Overview
The Uniview IPC6622SR-X25-VD2 is a 2MP intelligent PTZ network camera with a 1/2.8-inch CMOS sensor, 25X optical zoom, and 5–125mm motorized lens. Its Lighthunter imaging, 120dB true WDR, adaptive smart IR, heatwave reduction, and defog technology support clear surveillance across long distances and challenging outdoor conditions.
The camera combines AI auto-tracking, smart intrusion prevention, people counting, two-way audio, alarm interfaces, IP67 protection, and IK10 vandal resistance for demanding perimeter and infrastructure applications.
Key Configuration
Model: IPC6622SR-X25-VD2 | Resolution: 2MP, up to 1920 × 1080 at 60fps | Lens: Motorized 5–125mm, 25X optical and 8X digital zoom | Connectivity: RJ45 10/100M Ethernet, RS485, IEEE 802.3at PoE, DC24V or AC24V | Protection: IP67, IK10
Key Features
- · 2MP imaging with 1/2.8-inch CMOS sensor and Lighthunter Wise-ISP processing
- · 25X optical zoom, 8X digital zoom, and 5–125mm motorized lens
- · Smart IR illumination up to 200m with automatic scene-based adjustment
- · UNV LM-Auto Tracking for motor vehicles, non-motor vehicles, and pedestrians
- · Smart intrusion prevention with cross-line, intrusion, enter-area, and leave-area detection
- · People-flow counting and crowd-density monitoring
- · 120dB true WDR, adaptive HLC, heatwave reduction, adaptive defog, and DIS stabilization
- · Ultra 265, H.265, H.264, and MJPEG compression with five video streams and ROI support
- · Two-way audio, 2/1 audio I/O, alarm input/output, and RS485 interface
- · MicroSD storage up to 512GB, ONVIF Profile S, G, T, and M, and NDAA compliance
Technical Context
The camera combines long-range PTZ imaging with adaptive image enhancement for outdoor monitoring. Smart IR adjusts illumination to the scene, while heatwave reduction and adaptive defog help preserve detail in hot, hazy, or foggy conditions. AI tracking and target classification maintain focus on relevant people and vehicles while reducing false alarms from environmental movement.
Installation Notes
Power the camera using DC 24V ±25%, AC 24V ±25%, or IEEE 802.3at PoE. Connect through the 10/100M RJ45 interface; RS485 is available for serial control. The camera measures Ø227 × 390mm and operates from -40°C to 70°C with up to 95% non-condensing humidity. Use suitable ceiling, wall, pole, corner, or junction-box accessories for the selected mounting location.
| Product Information | |
| Model | IPC6622SR-X25-VD2 |
| Product Type | 2MP X25 LightHunter IR Intelligent Network PTZ Camera |
| Image Sensor | 1/2.8" CMOS |
| Case Type | PTZ dome camera |
| Camera and Lens | |
| Maximum Resolution | 2MP |
| Lens | 5–125mm motorized lens |
| Optical Zoom | 25X |
| Digital Zoom | 8X |
| Minimum Illumination | Color: 0.002 Lux, F1.6, AGC ON Black and white: 0.001 Lux, F1.6, AGC ON 0 Lux with light enabled |
| Field of View | Horizontal: 56.82°–3.05° Vertical: 31.98°–1.60° Diagonal: 69.90°–3.60° |
| Day/Night | IR-cut filter with automatic switch, ICR |
| Shutter | Auto/manual, 1/1 to 1/100000 s |
| WDR | 120dB |
| Signal-to-Noise Ratio | >56dB |
| Image Technology | LightHunter, Wise-ISP, adaptive defog, adaptive HLC, heatwave reduction and DIS image stabilization |
| DORI Distance | |
| Detect | 82.7–1660.3m (271.3–5447.3ft) |
| Observe | 33.1–664.1m (108.5–2178.9ft) |
| Recognize | 16.5–332.1m (54.3–1089.5ft) |
| Identify | 8.3–166.0m (27.1–544.7ft) |
| PTZ Functions | |
| Preset Capacity | Up to 1024 presets |
| Preset Image Freeze | Supported |
| Pan Range | 360° endless |
| Tilt Range | -15° to 90° with auto-flip |
| Pan Speed | 0.1°/s to 288°/s |
| Patrol Stay Time | 15–1800 seconds |
| IR Illumination | |
| IR Distance | Up to 200m (656.2ft) |
| IR Control | Automatic/manual |
| Night Vision | Smart IR illumination with scene-adaptive image adjustment |
| Video | |
| Compression | Ultra 265, H.265, H.264 and MJPEG |
| Main Stream | 1080p up to 60fps Default: 1080p at 25fps |
| Sub Stream | 1080p up to 60fps |
| Third, Fourth and Fifth Streams | D1 up to 60fps |
| Video Bit Rate | 128Kbps–16Mbps |
| Video Features | Five streams, U-Code, up to 10 OSDs, up to 24 privacy-mask areas and up to 8 ROI areas per scene |
| Intelligent Features | |
| Smart Intrusion Prevention | Cross-line, intrusion, enter-area and leave-area detection with human, vehicle and non-motor vehicle classification |
| Auto Tracking | UNV Large Model auto tracking for vehicles, non-motor vehicles and pedestrians |
| People Analysis | People-flow counting and crowd-density detection |
| Exception Detection | Object removed and object left behind detection |
| Image Functions | 2D/3D DNR, BLC, digital defog, HLC, image flip and adaptive heatwave reduction |
| Audio, Storage and Network | |
| Audio | Two-way audio supported |
| Audio I/O | 1 audio input and 1 audio output |
| Audio Compression | G.711U and G.711A |
| Local Storage | MicroSD card up to 512GB |
| Network Storage | NAS via NFS |
| Network Interface | 1× RJ45 10/100 Base-TX Ethernet port |
| Alarm I/O | 2 alarm inputs and 1 alarm output |
| Serial Interface | 1× RS485 |
| Protocols | IPv4/IPv6, TCP, UDP, DHCP, PPPoE, RTSP, RTP, RTCP, RTMP, DNS, DDNS, NTP, HTTP, HTTPS, FTP, UPnP, SMTP, SNMP, QoS, SSL/TLS and 802.1x |
| Integration | ONVIF Profile S, Profile G, Profile T and Profile M; API and SDK |
| Users | Up to 32 users with administrator, operator and common-user levels |
| Client Software | EZStation, UNV-Link and UNV-Link Pro |
| Power and Mechanical | |
| Power Supply | DC 24V ±25%, AC 24V ±25% or PoE IEEE 802.3at |
| Power Connector | Wires with cold-pressed terminals |
| Dimensions | Ø227 × 390mm (Ø8.9 × 15.4in) |
| Reset Button | Supported |
| Environmental Protection | |
| Protection Rating | IP67 and IK10, except for the front window |
| Operating Environment | -40°C to 70°C (-40°F to 158°F), up to 95% RH non-condensing |
| Storage Environment | -40°C to 70°C (-40°F to 158°F), up to 95% RH non-condensing |
| Surge Protection | 6kV |
| Certifications and Compliance | |
| Certifications | CE-EMC, FCC, CE-LVD, UL/CUL, CE-RoHS and WEEE |
| Compliance | NDAA compliant |
