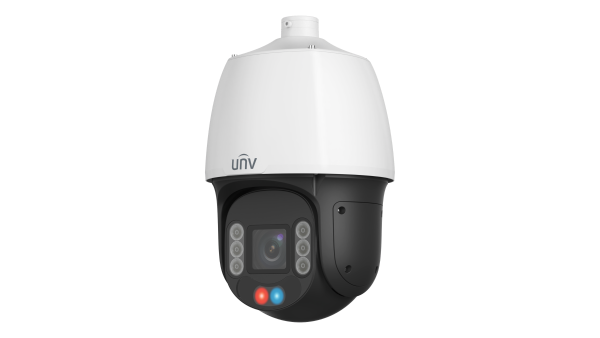

UNV - IPC6624SFW-X33-C-VH2 - 4MP Starlight 33X Double-Light Alarm Smart Dome IP Camera
Product Overview
The Uniview IPC6624SFW-X33-C-VH2 is a 4MP intelligent dual-light PTZ network camera with a 1/2.8-inch CMOS sensor, 33X optical zoom, and 4.5–148.5mm motorized lens. Its Starlight Wise-ISP imaging, 120dB true WDR, electronic image stabilization, heatwave reduction, adaptive defog, and long-range IR provide clear video across extensive outdoor monitoring areas.
The camera combines AI auto-tracking, smart intrusion prevention, people counting, a high-power speaker for audio-visual alarms, two-way audio, IP67 protection, and IK10 vandal resistance.
Key Configuration
Model: IPC6624SFW-X33-C-VH2 | Resolution: 4MP, up to 2688 × 1520 at 60fps | Lens: Motorized 4.5–148.5mm, 33X optical and 8X digital zoom | Connectivity: RJ45 10/100M Ethernet, RS485, IEEE 802.3at PoE, DC24V or AC24V | Protection: IP67, IK10
Key Features
- · 4MP imaging with 1/2.8-inch CMOS sensor and Starlight Wise-ISP processing
- · 33X optical zoom, 8X digital zoom, and 4.5–148.5mm motorized lens
- · Dual-light illumination with 250m IR and 100m warm-light distance
- · UNV LM-Auto Tracking for motor vehicles, non-motor vehicles, and pedestrians
- · Smart intrusion prevention with cross-line, intrusion, enter-area, and leave-area detection
- · People-flow counting and crowd-density monitoring
- · 120dB true WDR, adaptive HLC, heatwave reduction, adaptive defog, and gyroscope-based EIS
- · Ultra 265, H.265, H.264, and MJPEG compression with five video streams and ROI support
- · Built-in high-power speaker, two-way audio, 2/1 audio I/O, and alarm input/output
- · MicroSD storage up to 512GB, ONVIF Profile S, G, T, and M, and NDAA compliance
Technical Context
The dual-light system combines long-range infrared illumination with warm-light color imaging for shorter and medium-distance scenes. AI target classification and auto-tracking follow people and vehicles through occlusion, multi-target crossings, and fast motion, while intrusion prevention filters irrelevant movement to reduce false alarms.
Installation Notes
Power the camera using DC 24V ±25%, AC 24V ±25%, or IEEE 802.3at PoE. Connect through the 10/100M RJ45 interface and use RS485 for serial control where required. The camera measures Ø227 × 390mm, weighs 5.26kg, and operates from -40°C to 70°C with up to 95% non-condensing humidity. Use compatible ceiling, wall, pole, corner, or junction-box accessories for the selected installation.
| Product Information | |
| Model | IPC6624SFW-X33-C-VH2 |
| Product Type | 4MP X33 Starlight Dual-Light Intelligent Network PTZ Camera |
| Image Sensor | 1/2.8" CMOS |
| Case Type | PTZ camera |
| Camera and Lens | |
| Maximum Resolution | 4MP |
| Lens | 4.5–148.5mm motorized lens |
| Optical Zoom | 33X |
| Digital Zoom | 8X |
| Iris | F1.5–F4.0 |
| Minimum Illumination | Color: 0.003 Lux, F1.5, AGC ON Black and white: 0.002 Lux, F1.5, AGC ON 0 Lux with light enabled |
| Field of View | Horizontal: 53.61°–2.68° Vertical: 31.73°–1.50° Diagonal: 63.26°–3.30° |
| Day/Night | IR-cut filter with automatic switch, ICR |
| Shutter | Auto/manual, 1/1 to 1/100000 s |
| WDR | 120dB |
| Signal-to-Noise Ratio | >56dB |
| Image Stabilization | EIS with gyroscope |
| DORI Distance | |
| Detect | 105.8–3172.5m (346.9–10408.5ft) |
| Observe | 42.3–1269.0m (138.8–4163.4ft) |
| Recognize | 21.2–634.5m (69.4–2081.7ft) |
| Identify | 10.6–317.3m (34.8–1041.0ft) |
| PTZ Functions | |
| Patrols | 16 patrols with up to 64 presets per patrol |
| Patrol Stay Time | 15–1800 seconds |
| Preset Capacity | Up to 1024 presets |
| Preset Image Freeze | Supported |
| Pan Range | 360° endless |
| Tilt Range | -15° to 90° with auto-flip |
| Pan/Tilt Speed | 0.1°/s to 288°/s |
| Dual-Light Illumination | |
| IR Distance | Up to 250m (820.2ft) |
| Warm-Light Distance | Up to 100m (328.1ft) |
| IR Control | Automatic/manual |
| Illumination Technology | Long-range IR detail with mid-to-short-range full-color imaging |
| Video | |
| Compression | Ultra 265, H.265, H.264 and MJPEG |
| Main Stream | 4MP 2688×1520 up to 30fps Default: 4MP 2560×1440 at 25fps |
| Sub Stream | 1080p up to 30fps |
| Third, Fourth and Fifth Streams | D1 up to 30fps |
| Video Bit Rate | 128Kbps–16Mbps |
| Video Features | Five streams, U-Code, up to 10 OSDs, up to 24 privacy-mask areas and up to 8 ROI areas per scene |
| Intelligent Features | |
| Smart Intrusion Prevention | Cross-line, intrusion, enter-area and leave-area detection with human, vehicle and non-motor vehicle classification |
| Auto Tracking | UNV Large Model auto tracking for vehicles, non-motor vehicles and pedestrians |
| People Analysis | People-flow counting and crowd-density detection |
| Exception Detection | Object removed and object left behind detection |
| Image Functions | 2D/3D DNR, BLC, HLC, digital defog and image flip |
| Audio, Storage and Network | |
| Audio | Built-in high-power speaker with two-way audio support |
| Audio I/O | 1 audio input and 1 audio output |
| Audio Compression | G.711U and G.711A |
| Local Storage | MicroSD card up to 512GB |
| Network Storage | NAS via NFS |
| Network Interface | 1× RJ45 10/100 Base-TX Ethernet port |
| Alarm I/O | 2 alarm inputs and 1 alarm output |
| Serial Interface | 1× RS485 |
| Protocols | IPv4/IPv6, TCP, UDP, DHCP, PPPoE, RTSP, RTP, RTCP, RTMP, DNS, DDNS, NTP, HTTP, HTTPS, FTP, UPnP, SMTP, SNMP, QoS, SSL/TLS and 802.1x |
| Integration | ONVIF Profile S, Profile G, Profile T and Profile M; API and SDK |
| Users | Up to 32 users with administrator, operator and common-user levels |
| Client Software | EZStation, UNV-Link and UNV-Link Pro |
| Power and Mechanical | |
| Power Supply | DC 24V ±25%, AC 24V ±25% or PoE IEEE 802.3at |
| Power Consumption | Maximum 20.88W |
| Power Connector | Wires with cold-pressed terminals |
| Dimensions | Ø227 × 390mm (Ø8.9 × 15.4in) |
| Weight | 5.26kg (11.59lb) |
| Reset Button | Supported |
| Environmental Protection | |
| Protection Rating | IP67 and IK10, except for the front window |
| Operating Environment | -40°C to 70°C (-40°F to 158°F), up to 95% RH non-condensing |
| Storage Environment | -40°C to 70°C (-40°F to 158°F), up to 95% RH non-condensing |
| Surge Protection | 6kV |
| Certifications and Compliance | |
| Certifications | CE-EMC, FCC, CE-LVD, UL/CUL, CE-RoHS and WEEE |
| Compliance | NDAA compliant |
