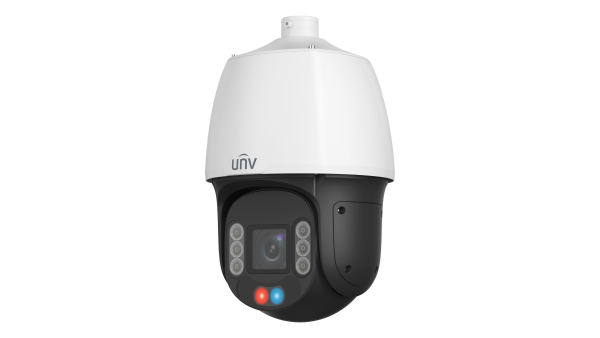

UNV - IPC6628SFW-X25E-C-VH2 - 8MP X25 Starlight Dual-light Intelligent Network PTZ Camera
Product Overview
The Uniview IPC6628SFW-X25E-C-VH2 is an 8MP intelligent dual-light PTZ network camera with a 1/1.8-inch CMOS sensor, 25X optical zoom, and 6–150mm motorized lens. Its Starlight Wise-ISP imaging, 120dB true WDR, electronic image stabilization, heatwave reduction, adaptive defog, and dual-light illumination support detailed surveillance in demanding outdoor conditions.
The camera combines AI auto-tracking, smart intrusion prevention, people counting, face recognition, a high-power speaker for audio-visual alarms, two-way audio, IP67 protection, and IK10 vandal resistance.
Key Configuration
Model: IPC6628SFW-X25E-C-VH2 | Resolution: 8MP, up to 3840 × 2160 at 30fps | Lens: Motorized 6–150mm, 25X optical and 8X digital zoom | Connectivity: RJ45 10/100M Ethernet, RS485, IEEE 802.3at PoE, DC24V or AC24V | Protection: IP67, IK10
Key Features
- · 8MP imaging with 1/1.8-inch CMOS sensor and Starlight Wise-ISP processing
- · 25X optical zoom, 8X digital zoom, and 6–150mm motorized lens
- · Dual-light illumination with 200m IR and 100m warm-light distance
- · UNV LM-Auto Tracking for motor vehicles, non-motor vehicles, and pedestrians
- · Smart intrusion prevention with cross-line, intrusion, enter-area, and leave-area detection
- · People-flow counting, crowd-density monitoring, and face recognition
- · Face recognition with up to 16 face libraries and 100,000 faces per library
- · 120dB true WDR, adaptive HLC, heatwave reduction, adaptive defog, and gyroscope-based EIS
- · Ultra 265, H.265, H.264, and MJPEG compression with five video streams and ROI support
- · Two-way audio, 2/1 audio I/O, alarm input/output, microSD storage up to 512GB, and NDAA compliance
Technical Context
The dual-light system combines long-range infrared illumination with warm-light color imaging for shorter and medium-distance scenes. AI target classification and auto-tracking follow people and vehicles through occlusion, multi-target crossings, and fast motion, while face-recognition libraries support automated identification workflows.
Installation Notes
Power the camera using DC 24V ±25%, AC 24V ±25%, or IEEE 802.3at PoE. Connect through the 10/100M RJ45 interface and use RS485 for serial control where required. The camera measures Ø226.7 × 390.2mm, weighs 5.48kg, and operates from -40°C to 70°C with up to 95% non-condensing humidity. Use compatible ceiling, wall, pole, corner, or junction-box accessories for the selected installation.
| Product Information | |
| Model | IPC6628SFW-X25E-C-VH2 |
| Product Type | 8MP X25 Starlight Dual-Light Intelligent Network PTZ Camera |
| Image Sensor | 1/1.8" CMOS |
| Case Type | PTZ camera |
| Camera and Lens | |
| Maximum Resolution | 8MP |
| Lens | 6–150mm motorized lens |
| Optical Zoom | 25X |
| Digital Zoom | 8X |
| Iris | F1.5–F3.4 |
| Minimum Illumination | Color: 0.003 Lux, F1.5, AGC ON Black and white: 0.002 Lux, F1.5, AGC ON 0 Lux with light enabled |
| Field of View | Horizontal: 56.51°–2.93° Vertical: 33.64°–1.65° Diagonal: 69.50°–3.45° |
| Day/Night | IR-cut filter with automatic switch, ICR |
| Shutter | Auto/manual, 1/1 to 1/100000 s |
| WDR | 120dB |
| Signal-to-Noise Ratio | >56dB |
| Image Stabilization | EIS with gyroscope |
| DORI Distance | |
| Detect | 143.1–3116.3m (469.5–10223.9ft) |
| Observe | 57.2–1246.5m (187.8–4089.6ft) |
| Recognize | 28.6–623.3m (93.9–2044.8ft) |
| Identify | 14.3–311.6m (46.9–1022.4ft) |
| PTZ Functions | |
| Patrol Stay Time | 15–1800 seconds |
| Preset Capacity | Up to 1024 presets |
| Preset Image Freeze | Supported |
| Pan Range | 360° endless |
| Tilt Range | -15° to 90° with auto-flip |
| Pan/Tilt Speed | 0.1°/s to 288°/s |
| Dual-Light Illumination | |
| IR Distance | Up to 200m (656.2ft) |
| Warm-Light Distance | Up to 100m (328.1ft) |
| IR Control | Automatic/manual |
| Illumination Technology | Long-range IR detail with mid-to-short-range full-color imaging |
| Video | |
| Compression | Ultra 265, H.265, H.264 and MJPEG |
| Main Stream | 8MP 3840×2160 up to 30fps Default: 8MP 3840×2160 at 25fps |
| Sub Stream | 1080p up to 30fps |
| Third, Fourth and Fifth Streams | D1 up to 30fps |
| Video Bit Rate | 128Kbps–16Mbps |
| Video Features | Five streams, U-Code, up to 10 OSDs, up to 24 privacy-mask areas and up to 8 ROI areas per scene |
| Intelligent Features | |
| Smart Intrusion Prevention | Cross-line, intrusion, enter-area and leave-area detection with human, vehicle and non-motor vehicle classification |
| Auto Tracking | UNV Large Model auto tracking for vehicles, non-motor vehicles and pedestrians |
| People Analysis | People-flow counting and crowd-density detection |
| Face Recognition | Up to 16 face libraries and up to 100000 faces in the face library |
| Exception Detection | Object removed and object left behind detection |
| Image Functions | 2D/3D DNR, BLC, HLC, digital defog and image flip |
| Audio, Storage and Network | |
| Audio | Built-in high-power speaker with two-way audio support |
| Audio I/O | 1 audio input and 1 audio output |
| Audio Compression | G.711U and G.711A |
| Local Storage | MicroSD card up to 512GB |
| Network Storage | NAS via NFS |
| Network Interface | 1× RJ45 10/100 Base-TX Ethernet port |
| Alarm I/O | 2 alarm inputs and 1 alarm output |
| Serial Interface | 1× RS485 |
| Protocols | IPv4/IPv6, TCP, UDP, DHCP, PPPoE, RTSP, RTP, RTCP, RTMP, DNS, DDNS, NTP, HTTP, HTTPS, FTP, UPnP, SMTP, SNMP, QoS, SSL/TLS and 802.1x |
| Integration | ONVIF Profile S, Profile G and Profile M; API and SDK |
| Users | Up to 32 users with administrator, operator and common-user levels |
| Client Software | EZStation, UNV-Link and UNV-Link Pro |
| Power and Mechanical | |
| Power Supply | DC 24V ±25%, AC 24V ±25% or PoE IEEE 802.3at |
| Power Consumption | Maximum 20.88W |
| Power Connector | Wires with cold-pressed terminals |
| Dimensions | Ø226.7 × 390.2mm (Ø8.9 × 15.4in) |
| Weight | 5.48kg (12.08lb) |
| Reset Button | Supported |
| Environmental Protection | |
| Protection Rating | IP67 and IK10, except for the front window |
| Operating Environment | -40°C to 70°C (-40°F to 158°F), up to 95% RH non-condensing |
| Storage Environment | -40°C to 70°C (-40°F to 158°F), up to 95% RH non-condensing |
| Surge Protection | 6kV |
| Certifications and Compliance | |
| Certifications | CE-EMC, FCC, CE-LVD, UL/CUL, CE-RoHS and WEEE |
| Compliance | NDAA compliant |
