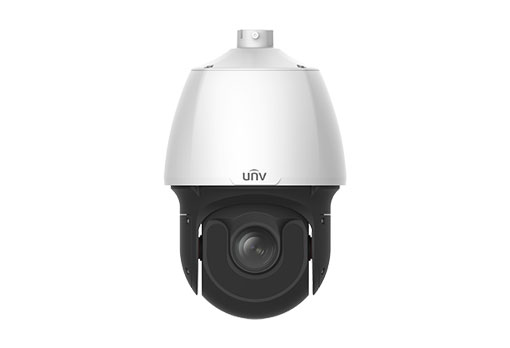

Uniview - IPC6658SR-X25-VF - 8MP 25x Lighthunter Network PTZ Dome Camera
Product Overview
Uniview IPC6658SR-X25-VF is an 8MP 25X LightHunter network PTZ dome camera with a 1/1.8" progressive scan CMOS sensor and 6.0–150.0mm motorized zoom lens. It delivers 8MP (3840×2160) at up to 30 fps (20 fps with AI functions enabled) and supports Ultra 265, H.265, H.264, and MJPEG compression. The camera provides Smart IR up to 200 meters, 25X optical zoom, and supports AC 24V, DC 24V, or PoE power.
Key Configuration
- • 8MP maximum resolution (3840×2160) at 30 fps (20 fps with AI functions enabled)
- • 6.0–150.0mm motorized zoom lens with 25X optical zoom and 16X digital zoom; F1.5–F3.4
- • IR range: vari-focal laser up to 200 m (656 ft) at 850 nm wavelength
- • Triple video streams (main, sub, third); video bit rate: 128 Kbps to 16 Mbps
- • PTZ: pan 360° endless, tilt -15° to 90° with auto reverse; pan speed 0.1°/s–200°/s (preset 300°/s); tilt speed 0.1°/s–200°/s (preset 240°/s)
Key Features
• Minimum illumination: 0.003 Lux color (F1.5, AGC ON), 0 Lux with IR; day/night ICR filter
• LightHunter technology; digital wide dynamic; digital defog; 2D/3D DNR
• Smart intrusion prevention with false alarm filtering: cross line, intrusion, enter area, leave area detection
• People counting: people flow counting and crowd density monitoring
• Audio: 1 input / 1 output with two-way talk; G.711U and G.711A compression
• Alarm: 2 inputs / 1 output; RS485 serial port; BNC video output; ONVIF Profiles S, G, T; API and SDK integration
Technical Context
DORI distances: at 6.0mm – detect 143.1m, observe 57.2m, recognize 28.6m, identify 14.3m; at 150.0mm – detect 3116.3m, observe 1246.5m, recognize 623.3m, identify 311.6m. Presets: 1024. Patrol types: preset patrol, route patrol, recorded patrol; patrol stay time: 15s–1800s; preset image freeze and home position supported. Privacy mask: 24 areas, up to 4 blacks in same picture. ROI up to 8 areas. OSD up to 8 overlays. Supports auto tracking (available later). Edge storage via microSD up to 256GB; ANR and NAS network storage.
Installation Notes
Dimensions (Ø × H): Ø227 × 384.8 mm (Ø8.9" × 15.1"); weight: 5.61 kg (12.36 lb). Operating temperature: -40°C to 65°C (-40°F to 149°F), humidity ≤95% RH non-condensing. Ingress protection: IP66. Power options: AC 24V ±25%, DC 24V ±25%, or PoE (PSE required); max power consumption 58W. Power interface: wires with cold-pressed terminal. Surge protection: 6KV. Reset button supported.
| IPC6658SR-X25-VF | |||||
| Camera | |||||
| Sensor | 1/1.8", 8.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| WDR | Digital wide dynamic | ||||
| S/N | >56dB | ||||
| Lens | |||||
| Lens | 6.0 ~ 150.0mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 25 | ||||
| Iris | Auto; F1.5 ~ F3.4 | ||||
| Angle of View (H) | 60.5° ~ 3.1° | ||||
| Angle of View (V) | 36.3° ~ 1.8° | ||||
| Angle of View (O) | 71.4° ~ 3.7° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 6.0 | 143.1(469.5ft) | 57.2(187.8ft) | 28.6(93.9ft) | 14.3(46.9ft) | |
| 150.0 | 3116.3 (10223.9ft) | 1246.5(4089.6ft) | 623.3(2044.8ft) | 311.6(1022.4ft) | |
| Illuminator | |||||
| Vari-focal Laser | Up to 200m(656ft) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 8MP(3840*2160),Max 30fps(Max 20fps when AI functions enabled); Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| H.264 Type | Baseline Profile/Main Profile/High Profile | ||||
| H.265 Type | Main Profile | ||||
| U-code | Susepport | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | 24 areas, up to 4 blacks in the same picture | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm; | ||||
| Auto tracking | Support later | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZLive Ezview | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 200°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | –15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 200°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Patrol Stay Time | 15s~1800s | ||||
| Preset Image Freeze | Support | ||||
| Home Position | Support | ||||
| Interface | |||||
| Audio I/O | 1/1 | ||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Built-in Mic | N/A | ||||
| Built-in Speaker | N/A | ||||
| WIFI | N/A | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | ||||
| Certification | |||||
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 | ||||
| Safety | IEC 62368-1 EN 62368-1 UL 60950-1 | ||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | ||||
| Protection | Ingression protection: IP66 (IEC 60529-2013) | ||||
| General | |||||
Power | AC 24V±25%, DC 24V±25%, PoE (PSE Required) | ||||
| Power consumption: Max 58W | |||||
| Power Interface | Wires with cold-pressed terminal | ||||
| Dimensions (Ø x H) | Ø227 x 384.8mm (Ø8.9” x 15.1”) | ||||
| Weight | 5.61kg(12.36lb) | ||||
| Working Environment | -40℃~65℃(-40°F ~ 149°F)，≤95%RH | ||||
| Storage Environment | -40℃~70℃(-40°F ~ 158°F)，≤95%RH | ||||
| Surge protection | 6KV | ||||
| Vandal Resistant | N/A | ||||
| Ingress Protection | IP66 | ||||
| Reset Button | Support | ||||
