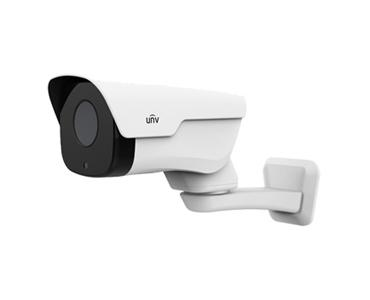

Uniview - IPC744SR5-PF60-32G - UNV 4MP Fixed Lens IR PTZ Camera (6mm, PTZ, 50m IR, 32G eMMC, PoE, Audio, Alarm)
Part number:
IPC744SR5-PF60-32G
Price:
UNV 4MP Fixed Lens IR PTZ Camera (6mm, PTZ, 50m IR, 32G eMMC, PoE, Audio, Alarm)
Features:
PTZ
- Precision motor with accuracy deviation less than 0.1 degree.
- Pan range 250°, tilt range -50° to 50°
- Pan speed up to 15°/s, tilt speed up to 5°/s
Optics
- Smart IR, up to 50m (164 ft) IR distance
- 2X Optical Zoom & Auto Focus
- IR anti-reflection window to increase the infrared transmittance
- Day/night functionality
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- Customized OSD
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- IP66
| IPC744SR5-PF60-32G | ||||||
| Camera | ||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||
| Lens | 4.0mm@F2.0 | 6.0mm@F2.0 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Obser ve (m) | Recognize (m) | Identify (m) | |
| 4 | 90 | 36 | 18 | 9 | ||
| 6 | 135 | 54 | 27 | 13.5 | ||
| Angle of view (H) | 78.9° | 49.9° | ||||
| Angle of View (V) | 39.6° | 27° | ||||
| Angle of View (O) | 97.1° | 61.4° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Color: 0.02Lux (F2.0, AGC ON) 0Lux with IR on | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >55dB | |||||
| IR Range | 50m (164ft) IR range | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||
| Frame Rate | Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 8 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Two-way Audio | Supported | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Built-in 32GB eMMC | |||||
| Network Storage | ANR | |||||
| Network | ||||||
| Protocol | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||
| Compatibility | ONVIF (Profile S, Profile T), API | |||||
| Structure | ||||||
| Pan Range | 250° | |||||
| Pan Speed | 0.1°/s ~ 15°/s | |||||
| Preset speed: 15°/s | ||||||
| Tilt Range | -50° ~ 50° | |||||
| Tilt Speed | 0.1°/s ~ 5°/s | |||||
| Preset speed: 5°/s | ||||||
| Number of Presets | 400 | |||||
| Patrol | Up to 16 patrols, up to 32 presets per patrol | |||||
| Interface | ||||||
| Audio I/O | 3.5mm connector | |||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||||
| Alarm I/O | 2/1 | |||||
| Network | 10M/100M adaptive Ethernet | |||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3at) | |||||
| Power consumption: Max 17.23W | ||||||
| Dimensions | 357× 106 × 194mm (14.1" × 4.2" × 7.7") | |||||
| Weight | 1.16kg (2.6lb) | |||||
| Working Environment | –35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Ingress Protection | IP66 | |||||
