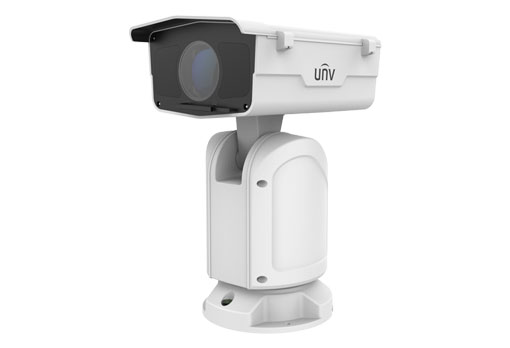

Uniview - IPC7622ER-X44-VF
Part number:
IPC7622ER-X44-VF
Price:
2MP 44X Lighthunter Intelligent Network Positioning system
Features:
- High quality image with 2MP,1/2.8’’ CMOS sensor
- 1920*1080@60fps in the main stream
- Triple streams
- 44X Optical Zoom
- Support Optical defog, Self-adaptive defog
- Smart IR, up to 400m (1312ft) IR distance
- Rain-sensing auto wiper
- Power supply: DC ±48V±25%,DC 24V±15%(DC20V~DC60V), AC 24V±25%
- Alarm 7 in and 2 out, Audio 1 in and 1 out
- IP67 ingress protection
| IPC7622ER-X44-VF | ||||
| Camera | ||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||
| Minimum Illumination | Colour: 0.0005Lux (F1.2, AGC ON) 0Lux with IR | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| WDR | 120dB | |||
| S/N | >52dB | |||
| Lens | ||||
| Lens type | 5 ~ 220mm, AF automatic focusing and motorized zoom lens | |||
| Digital Zoom | 16 | |||
| Optical Zoom | 44 | |||
| Iris | Auto; F1.2 ~ F3.5 | |||
| Angle of View (H) | 60.6° ~ 1.8° | |||
| Angle of View (V) | 35.6° ~ 1.2° | |||
| Angle of View (O) | 70.2° ~ 2.6° | |||
| DORI | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) |
| 5 | 77.6(254.5ft) | 31.0(101.8ft) | 15.5(50.9ft) | |
| 220 | 2793.1(9163.7ft) | 1117.2(3665.5ft) | 558.6(1832.7ft) | |
| Illuminator | ||||
| IR Range | Up to 400m (1312 ft) IR range | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Video | ||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps | |||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| U-code | Support | |||
| ROI | Up to 8 areas | |||
| Video Stream | Triple streams | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | 24 areas, up to 4 areas per scene | |||
| Image | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital noise reduction | 2D/3D DNR | |||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||
| EIS | N/A | |||
| HLC | Support | |||
| BLC | Support | |||
| Defog | Optical Defog & Digital Defog | |||
| Events | ||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm, Voltage detection; | |||
| Auto Tracking | Support | |||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||
| Audio | ||||
| Audio Compression | G.711U,G.711A | |||
| Audio Bitrate | 64 Kbps | |||
| Two-way audio | Support | |||
| Suppression | Support | |||
| Sampling Rate | 8kHz | |||
| Storage | ||||
| Edge Storage | Micro SD, up to 256GB | |||
| Network Storage | ANR,NAS(NFS) | |||
| Network | ||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||
| Client | EZStation EZView EZLive | |||
| Web Browser | Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||
| Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Pan & Tilt | ||||
| Pan Range | 360° (endless) | |||
| Pan Speed | 0.1°/s ~ 140°/s | |||
| Preset speed: 140°/s | ||||
| Tilt Range | -45° ~ 90° (auto reverse) | |||
| Tilt Speed | 0.1°/s ~ 50°/s | |||
| Preset speed: 50°/s | ||||
| Number of Presets | 1024 | |||
| Patrol | Preset patrol, Route patrol, Recorded patrol | |||
| Patrol Stay Time | 15s~1800s | |||
| Preset Image Freeze | Support | |||
| Home Position | Support | |||
| Interface | ||||
| Audio I/O | 1/1 | |||
| Alarm I/O | 7/2 | |||
| Serial Port | 1 RS485 | |||
| Built-in Mic | N/A | |||
| Built-in Speaker | N/A | |||
| WIFI | N/A | |||
| Network | 1*10M/100M/1000M Base-TX Ethernet | |||
| Video output | 1 BNC | |||
| Certification | ||||
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 | |||
| Safety | IEC 62368-1 EN 62368-1 UL 60950-1 | |||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | |||
| Protection | Ingression protection: IP67 (IEC 60529-2013) | |||
| General | ||||
| Power | DC ±48V±25%, DC 24V±15% (DC20V~DC60V), AC 24V±25% | |||
| Power consumption: Max 103W | ||||
| Power Interface | Wires with cold-pressed terminal | |||
| Dimensions (Ø x H) | 280.1mmx365.9mm x505.2mm (Φ11.0” x 14.4” x19.9”) | |||
| Weight | 14.1kg(31.08lb) | |||
| Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||
| Surge Protection | 6KV | |||
| Vandal Resistant | N/A | |||
| Ingress Protection | IP67 | |||
| Reset Button | Support | |||
