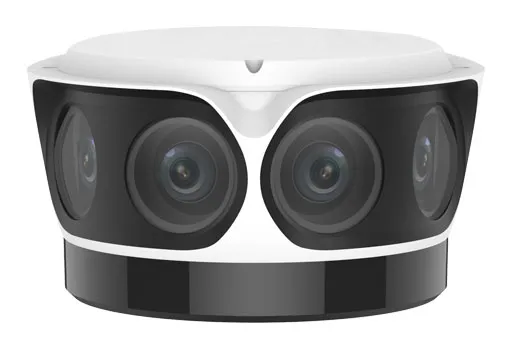

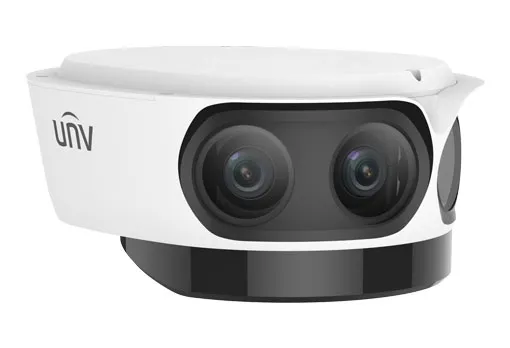

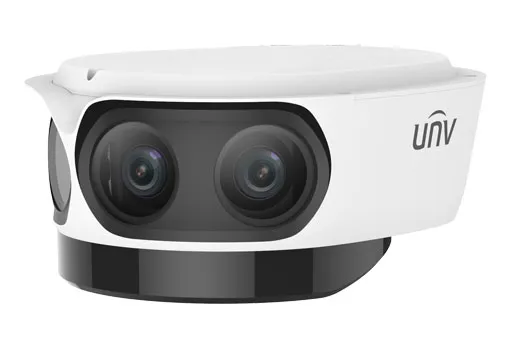

Uniview - IPC8542ER5-DUP - UNV 4K Starlight WDR IR 180° Panoramic IP Camera
Part number:
IPC8542ER5-DUP
Price:
UNV 4K Starlight WDR IR 180° Panoramic IP Camera
Features:
Optics
- Fifth-generation infrared technology, up to 50m (164ft) IR distance
- Starlight illumination
- Smart IR
- 2D/3D DNR (Digital Noise Reduction)
- 120dB true WDR
- Support a horizontal viewing angle of 180°
Compression
- Ultra H.265,H.265, H.264, MJPEG
- Triple streams
- Customized OSD
- 4096×1800@30fps supported
Network
- ONVIF Conformance
Structure
- AC/DC24V or PoE(IEEE 802.3at) power supply
- Wide voltage range of ±25% in AC, 18V~48V in DC
- Micro SD, up to 256 GB
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
| Camera | ||||||
| Sensor | 1/1.8" progressive scan, 2.0 megapixel, CMOS | |||||
| Lens | 4×4.2mm lens | |||||
| Iris | F1.8 | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 4.2 | 50.4 (165.4ft) | 20.2(66.3ft) | 10.1(33.1ft) | 5.0(16.4ft) | ||
| Angle of View (H) | 180° | |||||
| Angle of View (V) | 80° | |||||
| Angle of View (O) | 221.4° | |||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | |||||
| Adjustment angle | Pan: -90°~90° | Tilt: -45°~60° | ||||
| Min. Illumination | Colour: 0.002lux (F1.8,AGC ON) 0lux with IR | |||||
| WDR | 120dB | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| S/N | >52dB | |||||
| IR Range | Up to 30m (98.4 ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| Frame Rate | Main Stream: 4096×1800:Max. 30 fps; Sub Stream: 1920×832:Max. 30 fps; Third Stream: 1280×560: Max. 30 fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| ROI | Supported | |||||
| Video stream | Triple streams | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 8 areas(8 blacks/4 mosaics+4 blacks) | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Smart | ||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U, G.711A | |||||
| Two-way Audio | Supported | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256 GB | |||||
| Network Storage | ANR,NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
| Client | EZStation EZLive Ezview | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Interface | ||||||
| Audio I/O | Audio cable | |||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | ||||||
| Alarm I/O | 2/1 | |||||
| Network | 2*10M/100M/1000M Base-TX Ethernet | |||||
| Certification | ||||||
| Certifications | CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15 | |||||
| General | ||||||
| Power | AC24V±25%/DC24V support 18V-48V, PoE(IEEE 802.3at) | |||||
| Power consumption: Max 23.6W | ||||||
| Dimensions (Ø x H) | 259mmx211mmx115mm(10.2”×8.3”×4.5”) | |||||
| Weight | 2.38kg(5.25lb) | |||||
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing) | |||||
| Storage Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing) | |||||
| surge protection | 6KV | |||||
| Ingress Protection | IP67 | |||||
