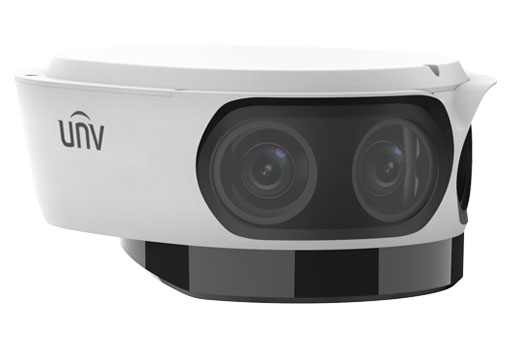

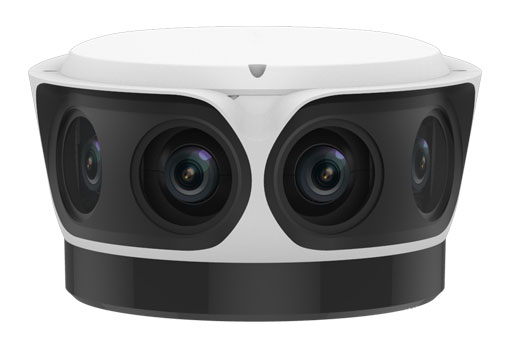

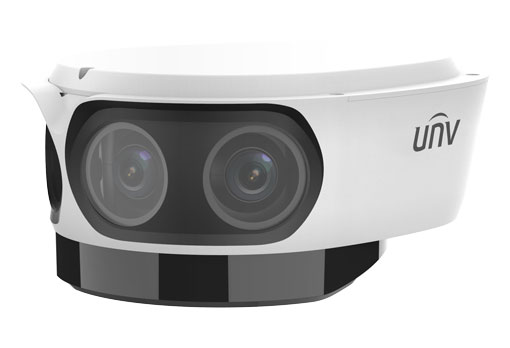

Uniview - IPC8544EA-KM-I1 - 16MP LightHunter 180° OmniView Network Camera

Name: Uniview - IPC8544EA-KM-I1 - 16MP LightHunter 180° OmniView Network Camera
Brand: Uniview
SKU: IPC8544EA-KM-I1

Part number:

IPC8544EA-KM-I1

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

16MP LightHunter 180° OmniView Network Camera

Features:

High quality image with 16MP, 1/1.8" CMOS sensor
4800*2688@30fps in the main stream offers 180° panoramic view, and 16:9 ratio can better fit the screen
Smart IR, up to 50m (164 ft) IR distance
Built-in fan, allows dissipating heat and eliminating the mist of window
Ultra 265,H.265, H.264, MJPEG
2D/3D DNR (Digital Noise Reduction)
AC24V, DC24V or PoE(IEEE 802.3at) power supply
Micro SD, up to 256 GB
Alarm 2 in and 1 out, Audio 1 in and 1 out
IP67 ingress protection

IPC8544EA-KM-I1
Camera
Sensor	1/1.8" progressive scan, 4.0 megapixel, CMOS
Min. Illumination	Colour: 0.001lux (F1.6,AGC ON) 0lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, shutter time: 1 s ~ 1/100000 s
WDR	Digital WDR
S/N	>56dB
Lens
Lens	4×2.8mm lens
Iris	F1.6
Field of View (H)	180°
Field of View (V)	90°
Field of View (D)	221.4°
DORI
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)
	2.8	63.0(206.7ft)	25.2(82.7ft)	12.6(41.3ft)
Illuminator
IR Range	Up to 50m (164ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 4800×2688:Max. 30 fps; Sub Stream: 2688×1520:Max. 30 fps; Third Stream: 1280×720: Max. 30 fps;
Video Bit Rate	128 Kbps~16 Mbps
ROI	Up to 8 areas
Video stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas(8 blacks/8 mosaics)
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°
HLC	Support
BLC	Support
Defog	Digital Defog
Events
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711U, G.711A
Two-way Audio	Supported
Suppression	Supported
Sampling Rate	8KHz
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR,NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZLive EZView
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/O	Audio cable
	1 Input: impedance 35kΩ; amplitude 2V [p-p]
	1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	2/1
Network	10M/100M/1000M Base-TX Ethernet
Certification
EMC	CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power	AC24V±25%/DC24V±25%, PoE(IEEE 802.3at)
	Power consumption: Max 34W
Dimensions (Ø x H)	258.8mmx211.0mmx115.0mm(10.2”×8.3”×4.5”)
Weight	2.271kg(5.01lb)
Working Environment	–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing)
Storage Environment	–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing)
surge protection	6KV
